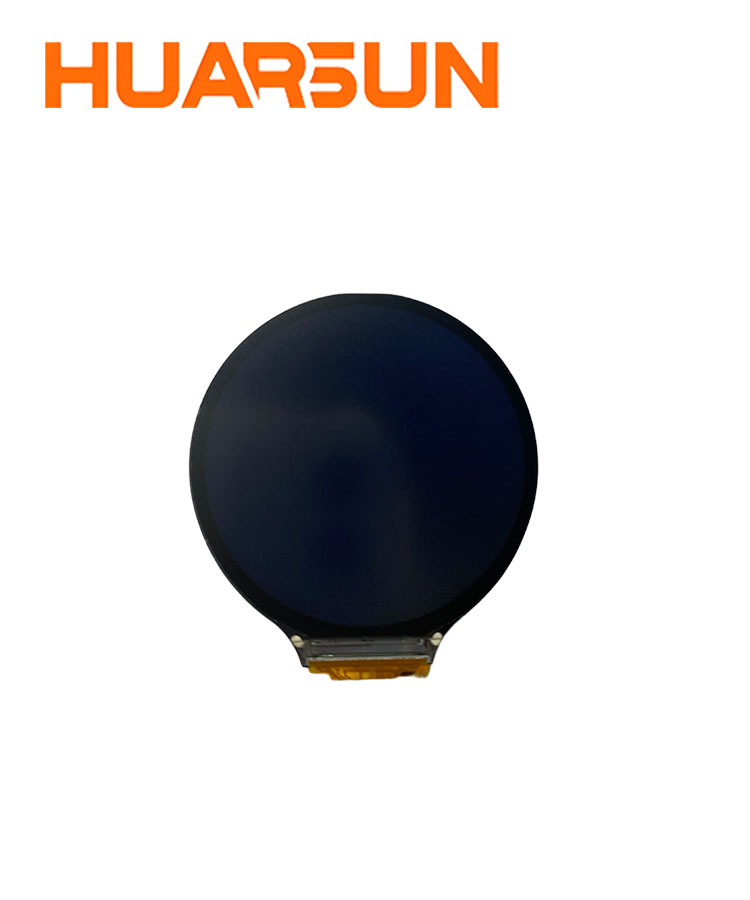

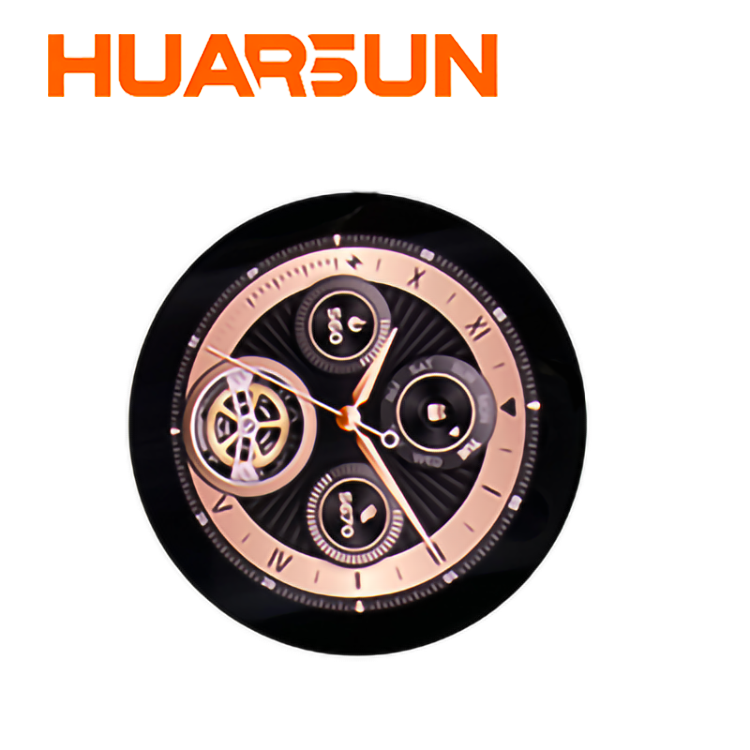

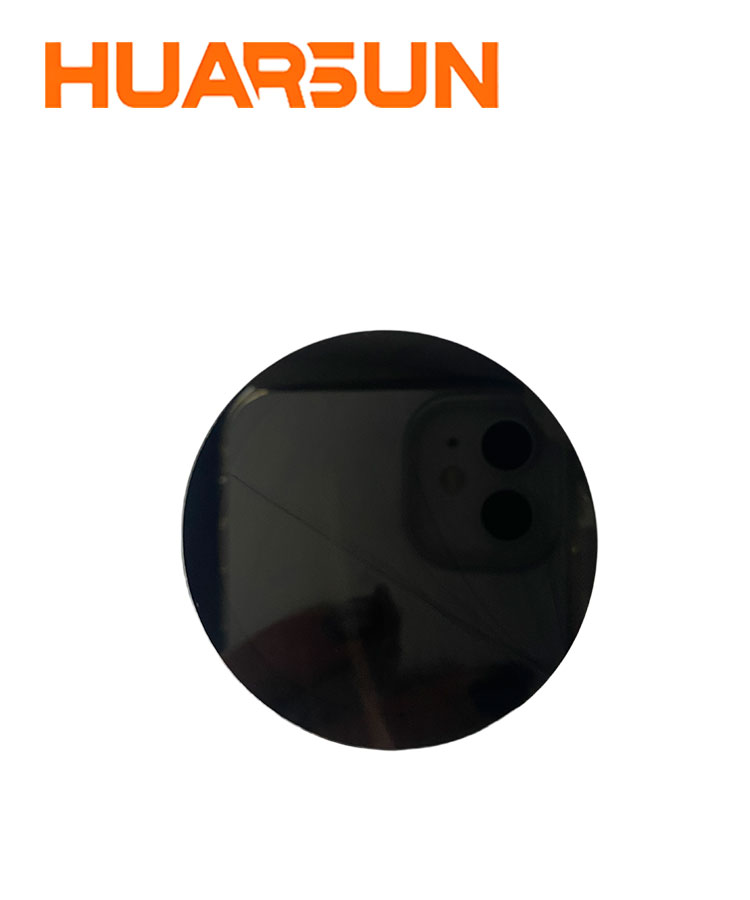

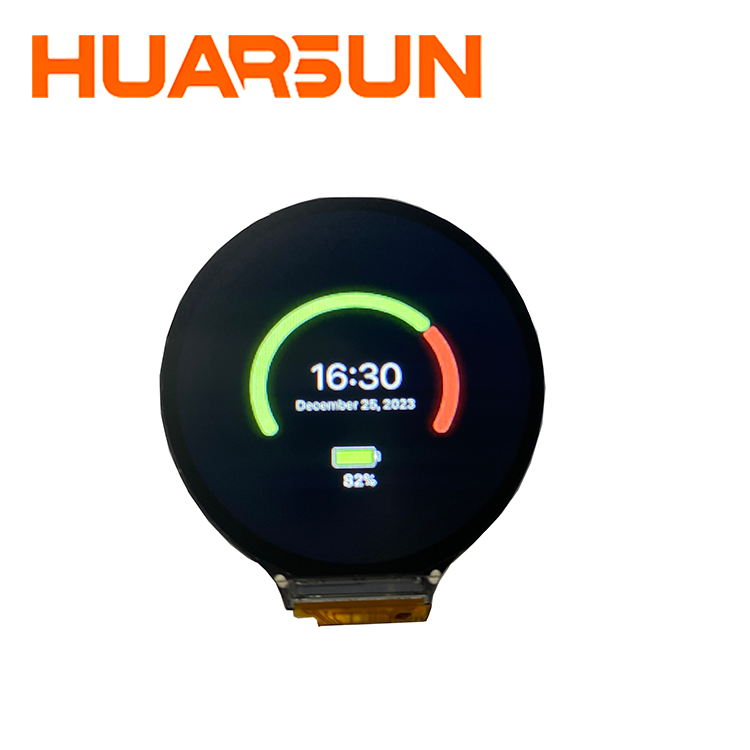

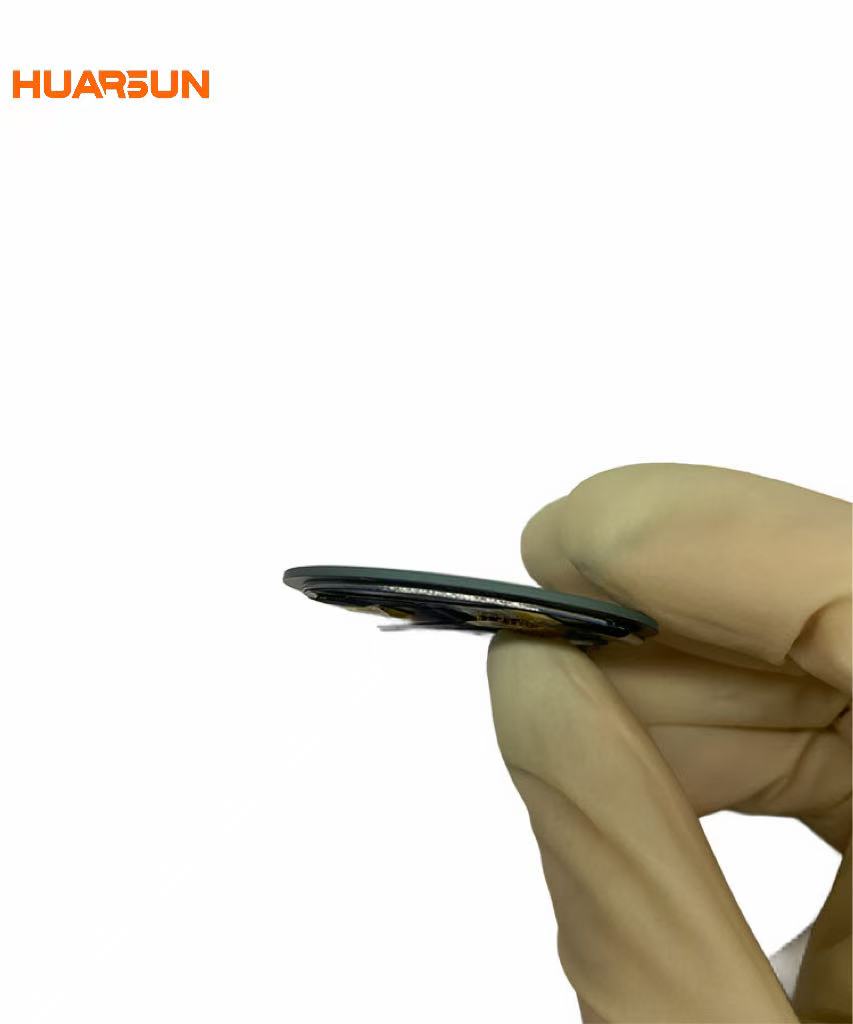

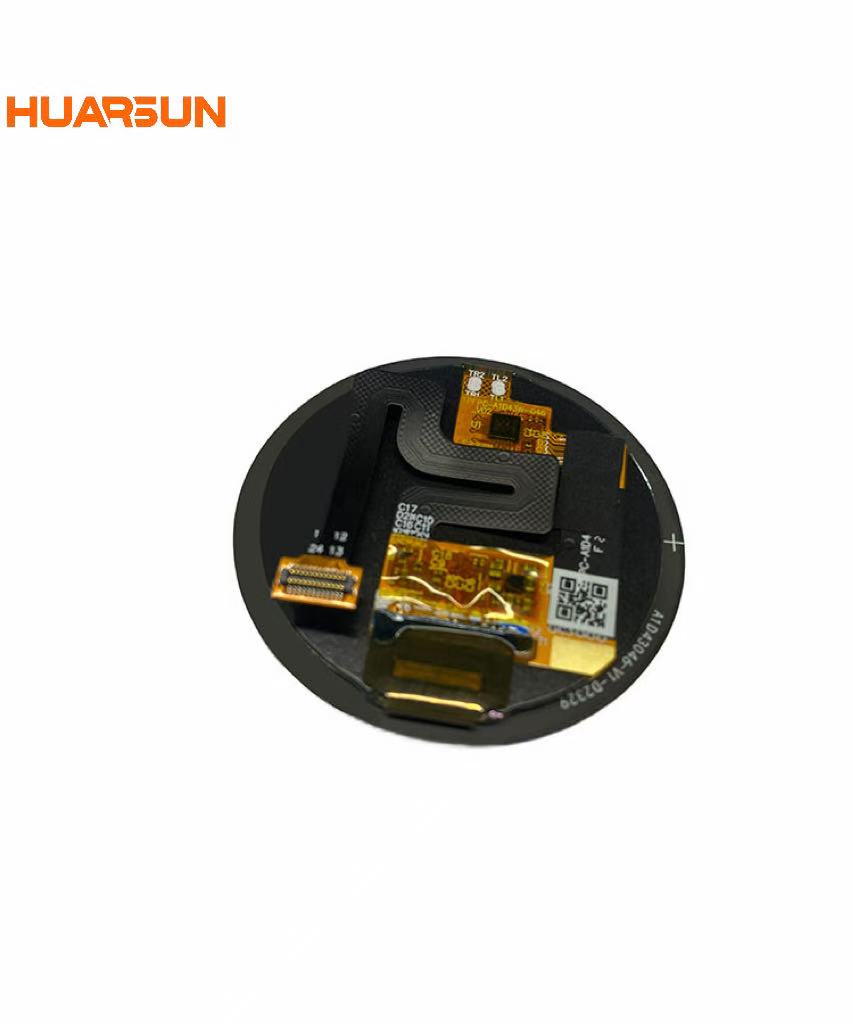

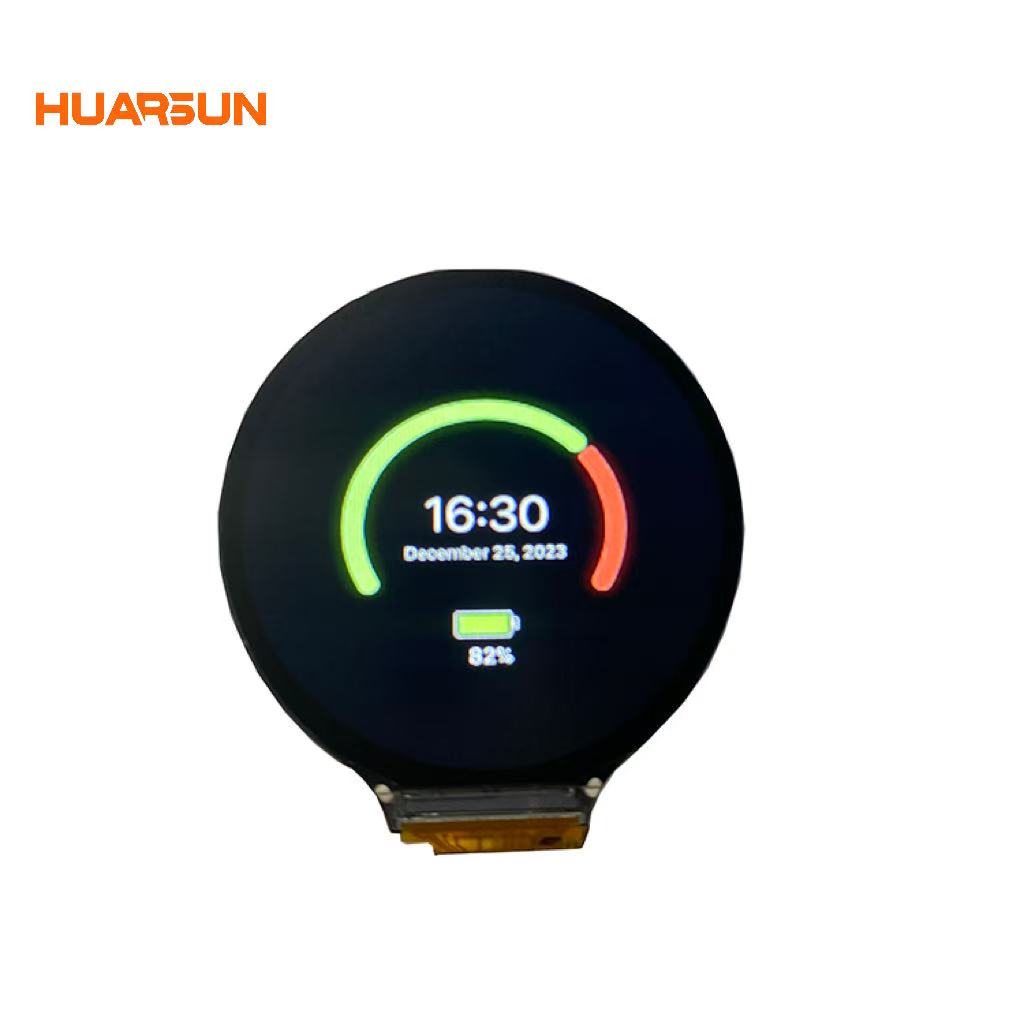

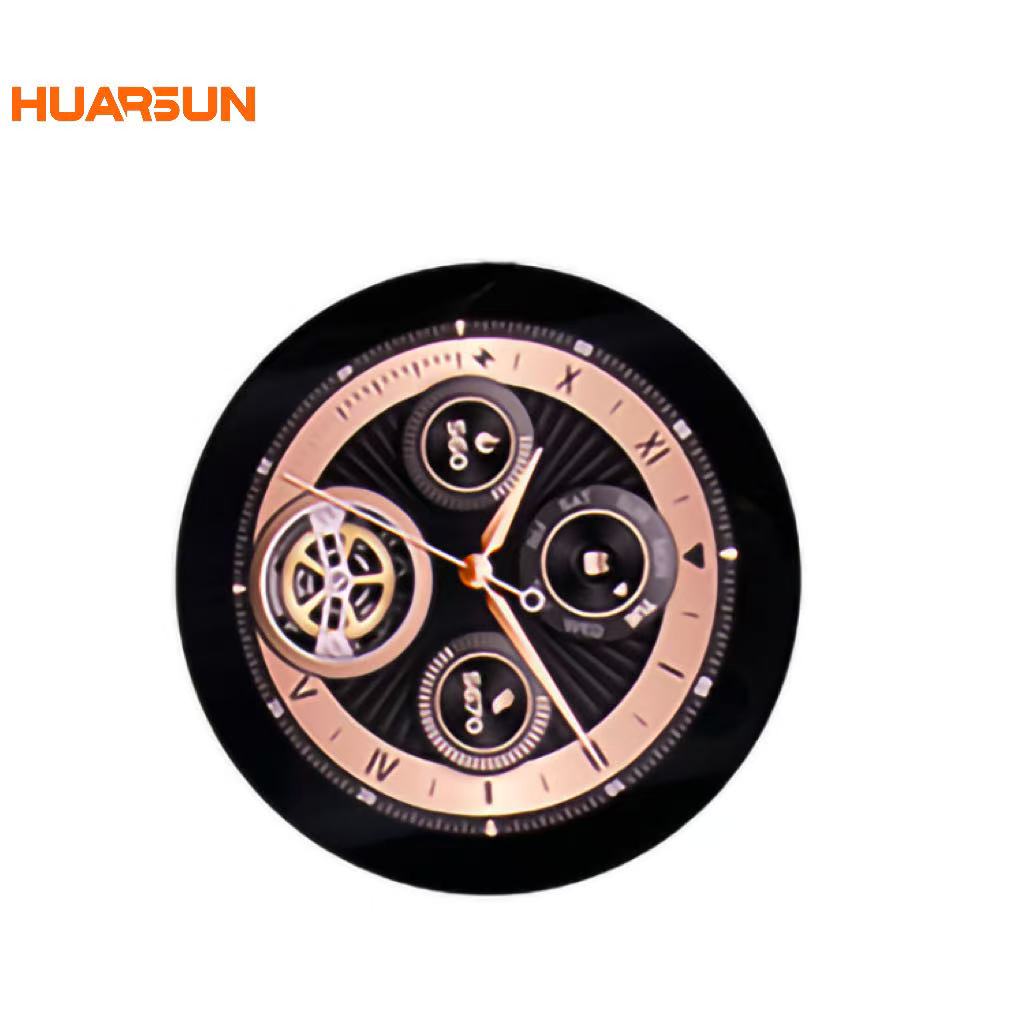

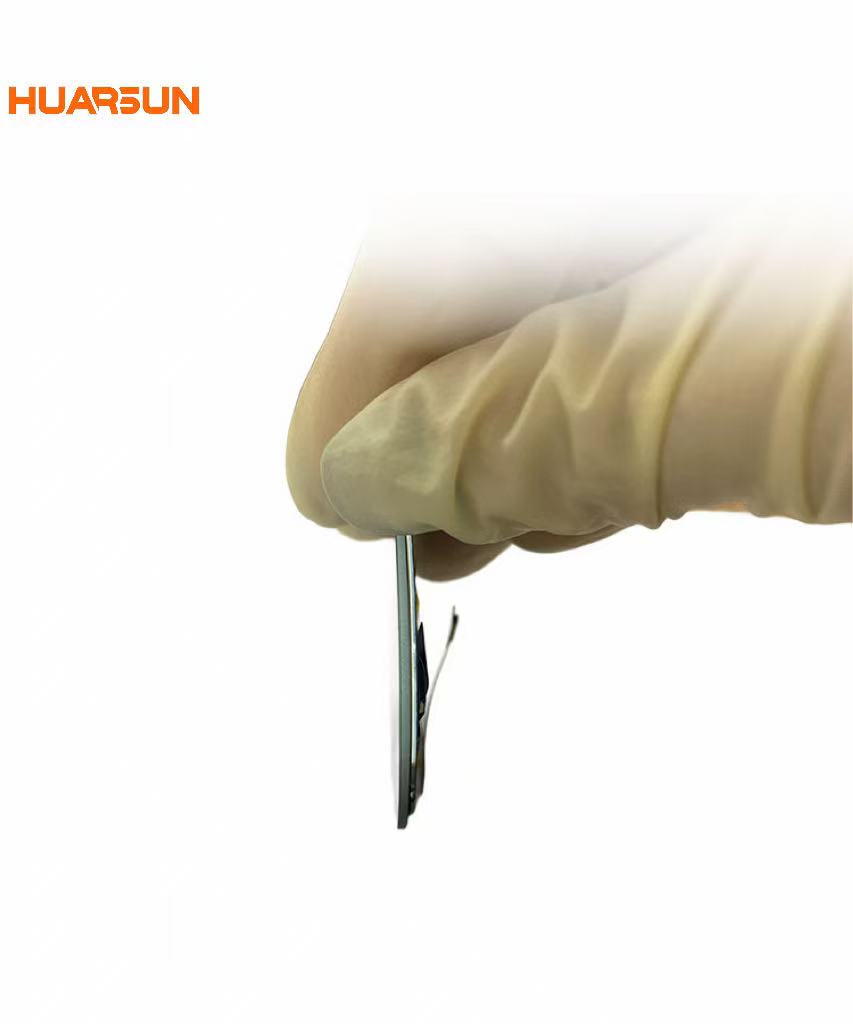

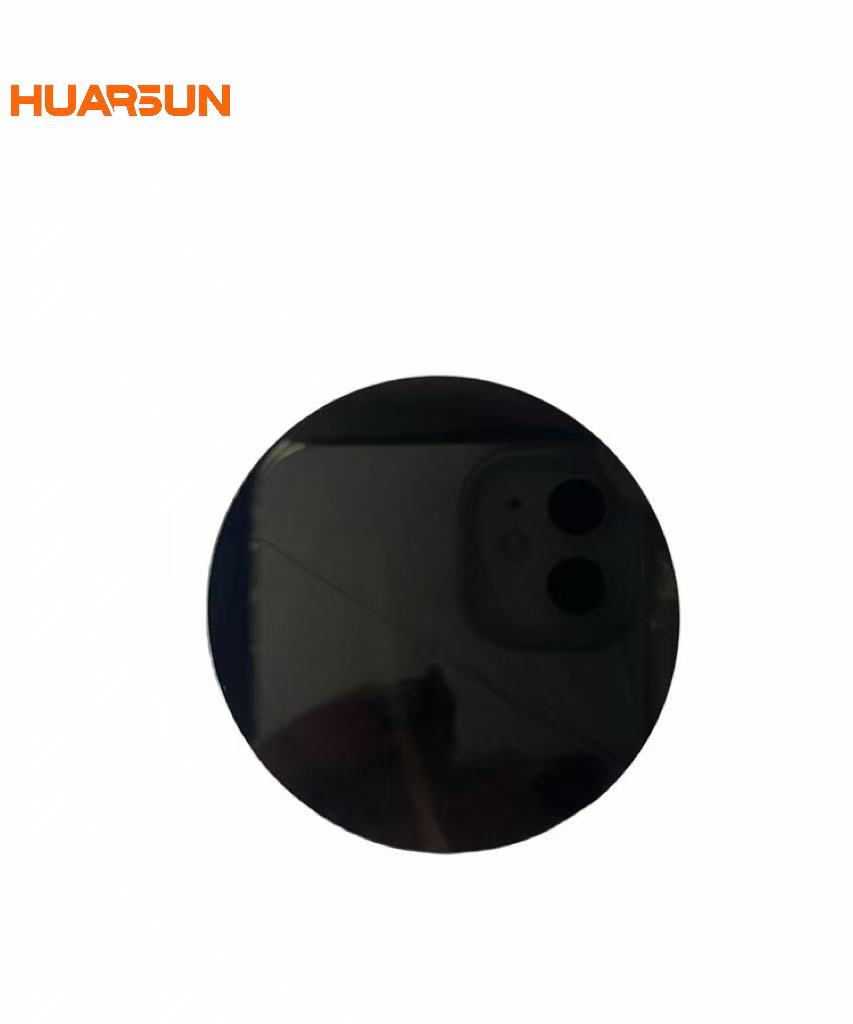

1.43" AMOLED Display Module for Wearables – 466x466 Resolution, 100% NTSC Color, QSPI Interface, High Brightness 720cd/m² |
|
|---|---|
|
Display typeDisplay type
|
AMOLED
|
|
Recommended Viewing Direction
|
O'Clock
|
|
Dot arrangement (Dot)
|
466(R.G.B)*466
|
|
Module size (W*H*T)
|
43.9*43.9*2.05
|
|
Active area (W*H)
|
36.35*36.35
|
|
Pixel size (W*H
|
0.078*0.078
|
|
Drive IC
|
CO5300AF-08
|
|
Interface Type
|
LCD:QSPI
TP:I2C
|
Introducing our high-performance 1.43-inch AMOLED display module designed for wearables and small electronics. This display features stunning color accuracy, high brightness, and low power consumption, making it an ideal choice for smart devices and IoT applications.
High Brightness: 800 nits brightness (typical) provides clear visibility even in bright environments.
Low Power Consumption: Designed to consume minimal power in various modes, optimizing battery life for wearables and portable devices.
Wide Operating Temperature Range: Functions efficiently between -20°C to 70°C, making it reliable for use in diverse conditions.
Power Supply: Operating with a 3.3V power supply, it offers seamless integration into existing devices.
Efficient Power Usage:
Normal Mode Power Consumption: 381.303 mW
Idle Mode Power Consumption: 31.828 mW
Deep Standby Mode Power Consumption: 262.34 µW
Display Size: 1.43" AMOLED
Resolution: 466 x 466 pixels
Brightness: 800 nits (typical), 880 nits (max)
Contrast Ratio: 10000:1 (min)
Color Gamut: 100% NTSC (typical)
Operating Voltage:
VDDIO / VCI: 3.3V (typical)
VABT: 3.7V (typical)
Driver IC: C05300AF-08
Power IC: BV6802W
Temperature Range:
Operating: -20°C to 70°C
Storage: -30°C to +80°C
Perfect for integration into:
Wearables: Smartwatches, Fitness trackers
IoT Devices: Home automation systems
Consumer Electronics: Portable displays, small screens for gadgets
Industrial Applications: Devices requiring high visibility and efficiency
Our Products
|
We are specialized in LCD display, including mono LCD module,TFT module and AMOLED module, which is the high and new tech enterprises in the country with the independent research and development, manufacturation and sales. It has developed as the excellent one of the medium and small-size field display terminal suppliers. We have been focused on customized TN/STN/FSTN/VA monochorome displays,as well as small to medium sized TFT displays and oled displays for about 17 years.
|
Product Application
| The application of monochrome products：industrial control, home intelligent control,onboard instrument,official screen, mobile payment etc. personalizing custom in product family design according to custom's needs. |
| The application of AMOLED products：intelligent wearing, children's education |
| The application of TFT products：intelligent wearing, children's education, smart home, industrial control medical treatment, mobile payment etc. |
Manufacturing Capacity
|
We now have two complete monochrome LCD production lines, a dozen of fully automatic COG production line and the full processing capacity for COB and CTP full lamination.With a professional R&D team, Well-developed quality control system, highly effective execution and management team and a pro-innovation corporate culture. We vow to satisfy our customers by meeting the quantity and quality requirements. |
| LCD：2production lines 、370mm*470mm panel、production capacity 60K/Mark/M |
| COG: 13 all-automatic production lines、0.5'' -8”modules、production capacity 5KK/M |
| COF：2 all-automatic production lines、 0.7”-7”modules、production capacity 500K/M |
| Team：800people in total, 60technicians,80 people in quality department. |
Quality Assurance
| Reliability Test Equipment: 17 |
| Quality Inspection Equipment: 230 |
| Quality Assurance System: MES system, ERP system |
MES Quality Process Flowchart
|
A MES (Manufacturing Execution System) quality process flowchart is a visual representation of the steps involved in the manufacturing process, from raw materials to finished products, with a focus on quality control.Overall, the MES quality process flowchart helps to ensure that the manufacturing process is carried out efficiently and effectively, with a focus on quality control and customer satisfaction. |
The Honor of Enterprise
| Thanks to our approach to seek innovation driven development, HEM has been pushing the frontier of the industry. We have earned honourary titles and certificates, such as ISO ISO9001 quality management certification, ISO14001 environment management certification, Director of Shenzhen Smart Wearable Device Industry Association, Member of National Medical Device Industry Association and National Hi-tech Company. |
Location
Shenzhen Operation Center
Jiangxi Manufacturing Center
|
Jiangxi HEM Technology Co.Ltd.was incorporated in 2016 and finds its headquarters in Wanzai of Jiangxi Province. |
Looking ahead
| Huaersheng invested 106,667 square meters display industrial park in 2022,which has the floorage of 12000 square matres. Park planning: 2 panel production lines of 370mm*470mm, 6full-automatic AMOLED production lines,30 COG full-automatic AMOLED production lines. |
FAQ
Q1:What is the power consumption of the 1.43" AMOLED display?
A1: The power consumption varies depending on the mode:
Normal Mode: 381.303 mW
Idle Mode: 31.828 mW
Deep Standby Mode: 262.34 µW
A2: The display operates with a 3.3V power supply for both VDDIO and VCI.
A3: The display has a typical brightness of 800 nits, with a maximum brightness of 880 nits, ensuring excellent visibility even in bright environments.
A4: The operating temperature range is -20°C to 70°C, while the storage temperature range is -30°C to +80°C.
A5: Yes, the high brightness (800 nits) and wide operating temperature range make it suitable for use in outdoor and industrial environments, where clear visibility is essential.
A6: The 1.43" AMOLED display is perfect for wearables like smartwatches, fitness trackers, and other small electronics. It integrates seamlessly with devices requiring compact, high-quality displays.
A7: AMOLED displays offer deeper blacks, higher contrast, and more vibrant colors than traditional LCDs, making them ideal for devices that require high-quality visual performance and low power consumption.
