1.47inch Hemlcd Amoled LCD Display OEM/ODM Custom For Microphone |
|

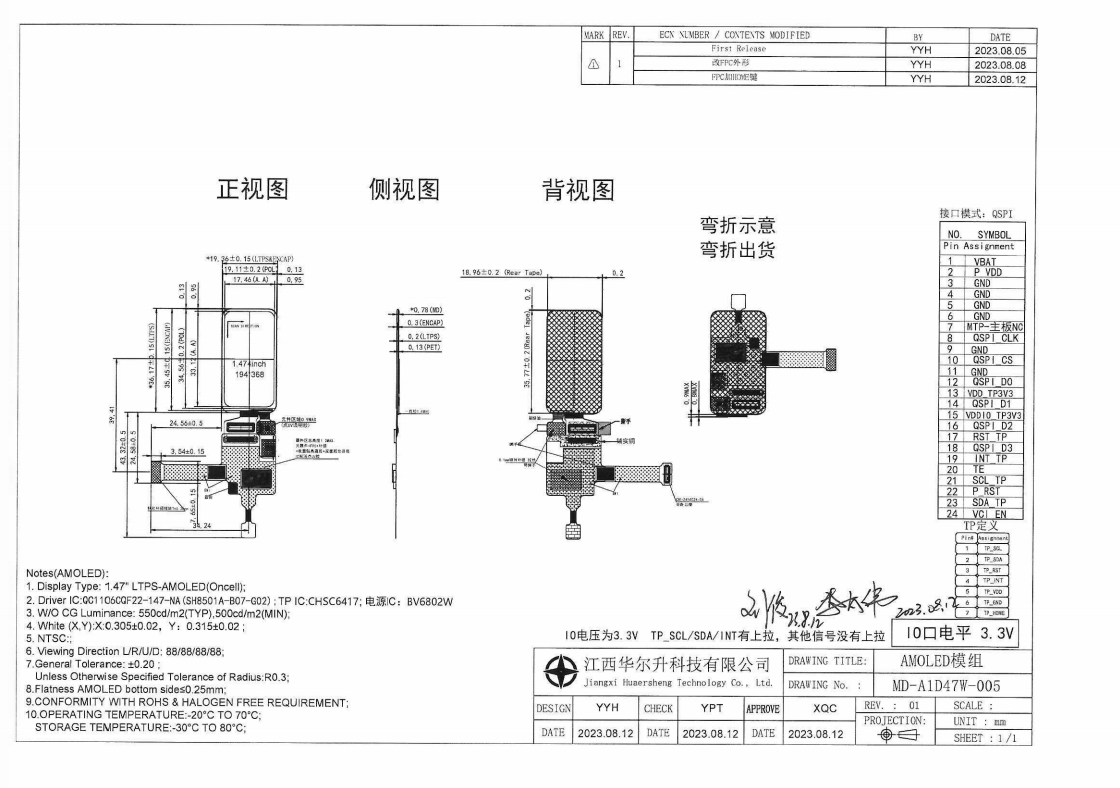

| Product Model | ZC-A1D47W-005 |
| Resolution | 194*368 |
| Overall dimension | 25.19*45.19*2.06 |
| Display Type | 1.47" LTPS-AMOLED(Oncell) |
| Driver IC | QC1106CQF22-147-NA (SH8501A-B07-G02) ;TP IC:CHSC6417 |
| W/O CG Luminance | 550cd/m2(TYP),500cd/m2(MIN) |
| White (X,Y) | X:0.305±0.02, Y: 0.315±0.02; |
| General Tolerance | ±0.20 |
| OPERATING TEMPERATURE | -20°C TO 70℃ |
| STORAGE TEMPERATURE | -30℃ TO 80°C |
| Interface type | QSPI |
Product Application
| We has been focused on customized TN/STN/FSTN/VA monochorome displays. |
| monochrome products' application：industrial control, home intelligent control,onboard instrument,official screen, mobile payment etc. personalizing custom in product family design according to custom's needs. |
| The application of AMOLED products：intelligent wearing, children's education |
| The application of TFT products：intelligent wearing, children's education, smart home, industrial control medical treatment, mobile payment etc. |
Manufacturing Capacity
|
We now have two complete monochrome LCD production lines, a dozen of fully automatic COG production line and the full processing capacity for COB and CTP full lamination.With a professional R&D team, Well-developed quality control system, highly effective execution and management team and a pro-innovation corporate culture. We vow to satisfy our customers by meeting the quantity and quality requirements. |
| LCD：2production lines 、370mm*470mm panel、production capacity 60K/Mark/M |
| COG: 15 all-automatic production lines、0.5'' -8”modules、production capacity 5KK/M |
| COF：2 all-automatic production lines、 0.7”-7”modules、production capacity 500K/M |
| Team：800people in total, 60technicians,80 people in quality department. |
Quality Assurance
| Reliability Test Equipment: 17 |
| Quality Inspection Equipment: 230 |
| Quality Assurance System: MES system, ERP system |
MES Quality Process Flowchart
The Honor of Enterprise
| Thanks to our approach to seek innovation driven development, HEM has been pushing the frontier of the industry. We have earned honourary titles and certificates, such as ISO ISO9001 quality management certification, ISO14001 environment management certification, Director of Shenzhen Smart Wearable Device Industry Association, Member of National Medical Device Industry Association and National Hi-tech Company. |
Location
Shenzhen Operation Center
Jiangxi Manufacturing Center
|
Jiangxi HEM Technology Co.Ltd.was incorporated in 2016 and finds its headquarters in Wanzai of Jiangxi Province. |
Looking ahead
| Huaersheng invested 160 mu display industrial park in 2022,which has the floorage of 12000 square matres. Park planning: 2 panel production lines of 370mm*470mm, 6full-automatic AMOLED production lines,30 COG full-automatic AMOLED production lines. |
FAQ
1.What kinds of display does HEM have?
HEM is specializing in manufacturing TFT LCD display, Monochrome LCD display,Touch Screen, customized LCD panel, COB and COG display.
2.How can I find the right product?
Please send us your requirements or datasheet, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.
3. Do you accept sample order or small quantity order?
Yes, you can place LCM-M19264-011A sample orders for testing first, and small quantity order as pilot production (no less than MOQ)
4.What’s the lead time?
Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and particular product).
5.What’s your order process?
evaluating the project and give quotation→confirming with the customers→customers 100% pay the tooling fee and samples cost in advance→we arrange the drawings for customer in three woking days after received the payment→customers confirm the drawings→we arrange the production of samples in two or three weeks after the customers confirm the drawings are okay→send the sample to the customers for testing→modify the design according to the customer's opinion and send the sample again until the customer is satisfied→customer 30% payment in advance→batch production
1.3 Inch Color Oled Display Module 360*360 QSPI LCD Device
1. Display Type：AMOLED 2. Diagonal length：1.3 inch 3. Viewing Direction：FREE O`Clock 4. Dot arrangement：360(R.G.B)*360 5. Module size(W*H*T)：35.34*36.84*0.69 6. Active area(W*H)：32.94*32.94 7. Driver IC：SH8601Z 8. Interface Type：QSPI
1.19 Inch Amoeld 390*390 QSPI Custom Oled Display Module
Display Type：AMOLED Diagonal length：1.19 Dot Arrangement：390*390 Viewing Direction：Free Module size：39.62*39.62*2.41 Active Area：30.42*30.42 Driver IC：ICNA3311 Power IC：BV6802W TP Driver IC：CST918 Interface Type：QSPI Operating Temp：-20℃ ~70℃ St
1.32 Inch Round Amoeld 466*466 QSPI Interface Custom Oled Display Module
Display Type：AMOLED Diagonal length：1.32 Dot Arrangement：466*466 Viewing Direction：Free Module size：36.35*36.35*0.5 Active Area：33.55*33.55 Driver IC：C05300 Power IC：BV6802W TP IC：FT6146-M00 Interface Type：QSPI Input Voltage：3.3V Operating Temp
1.39 Inch Round Amoeld 454*454 QSPI Interface Custom Oled Display Module
Display Type：1.39’’ 454*454 LTPS-AMOLED(Oncell) Viewing Direction：80/80/80/80 Module size：44.50*44.50*2.22 Active Area：35.41*35.41 Driver IC：ICNA3310 TP IC：CST820 Interface Type：QSPI Operating Temp：-20℃ ~70℃ Storage Temp：-30℃ ~80℃ Luminance：400cd
AM1.95 Inch QSPI ICNA3310 Custom LCD Touch Screen
Display Type：ZC-A1D95E-022 Diagonal length：1.95 Dot Arrangement：410(R.G.B)*502 Viewing Direction：ALL Outline Dimension：35.04*43.68*3.51 Active area：31.37*38.40 Pixel size：0.0765*0.0765 Driver IC：ICNA3310 TP IC：CST820 Interface Type：QSPI Operatin
AM1.43 Inch 466*466 Dot CO5300 Drive IC QSPI 500cd/m2 Amoled Display
ZC-A1D43W-077B_V01 Display Type: 1.43" LTPS-AMOLED(Oncell) Application：smart watch
