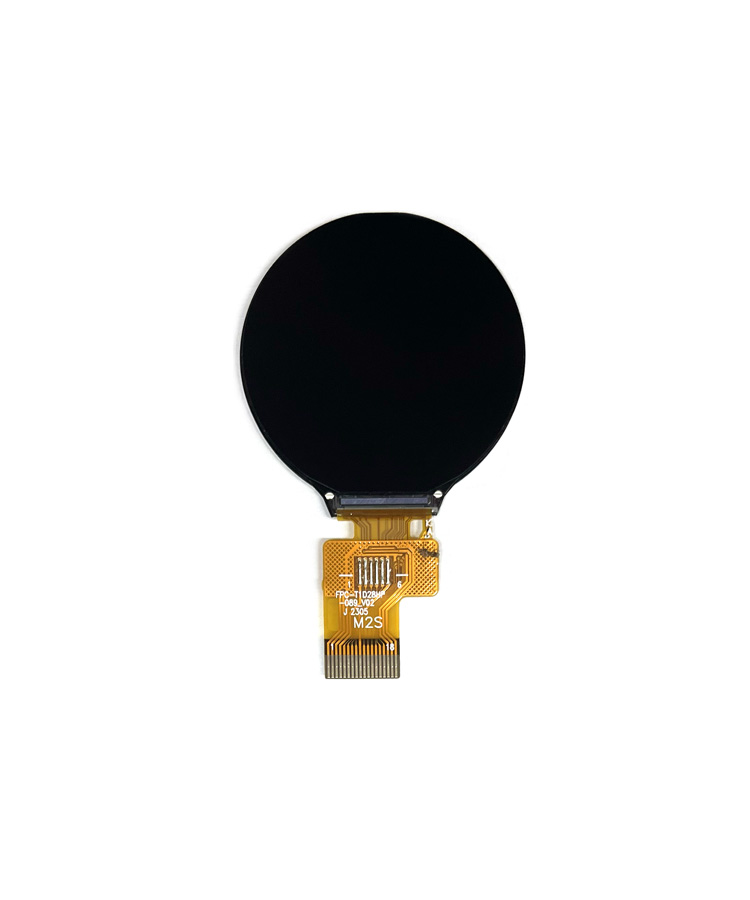

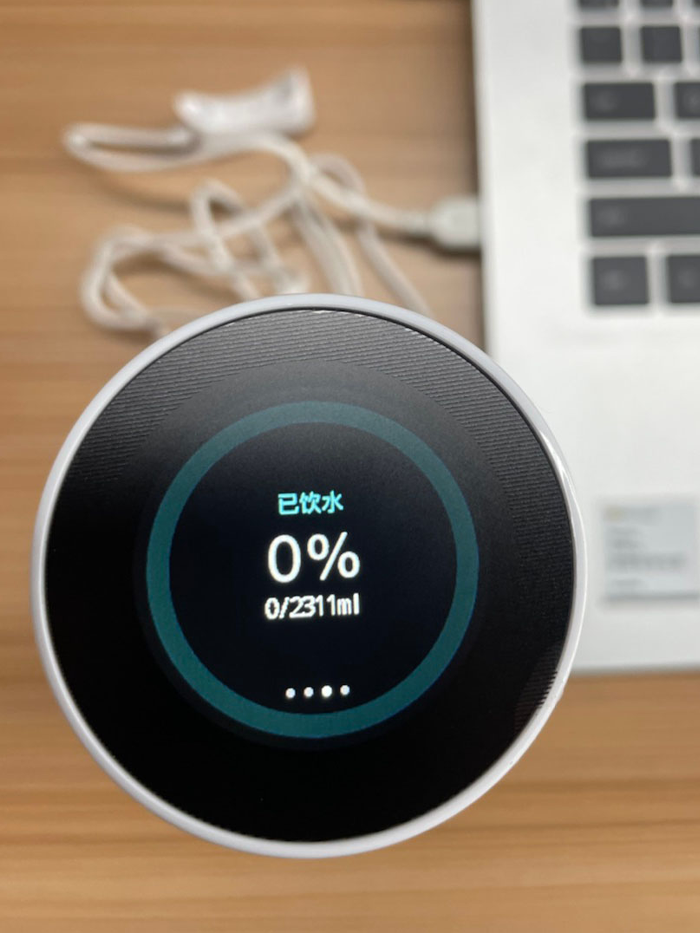

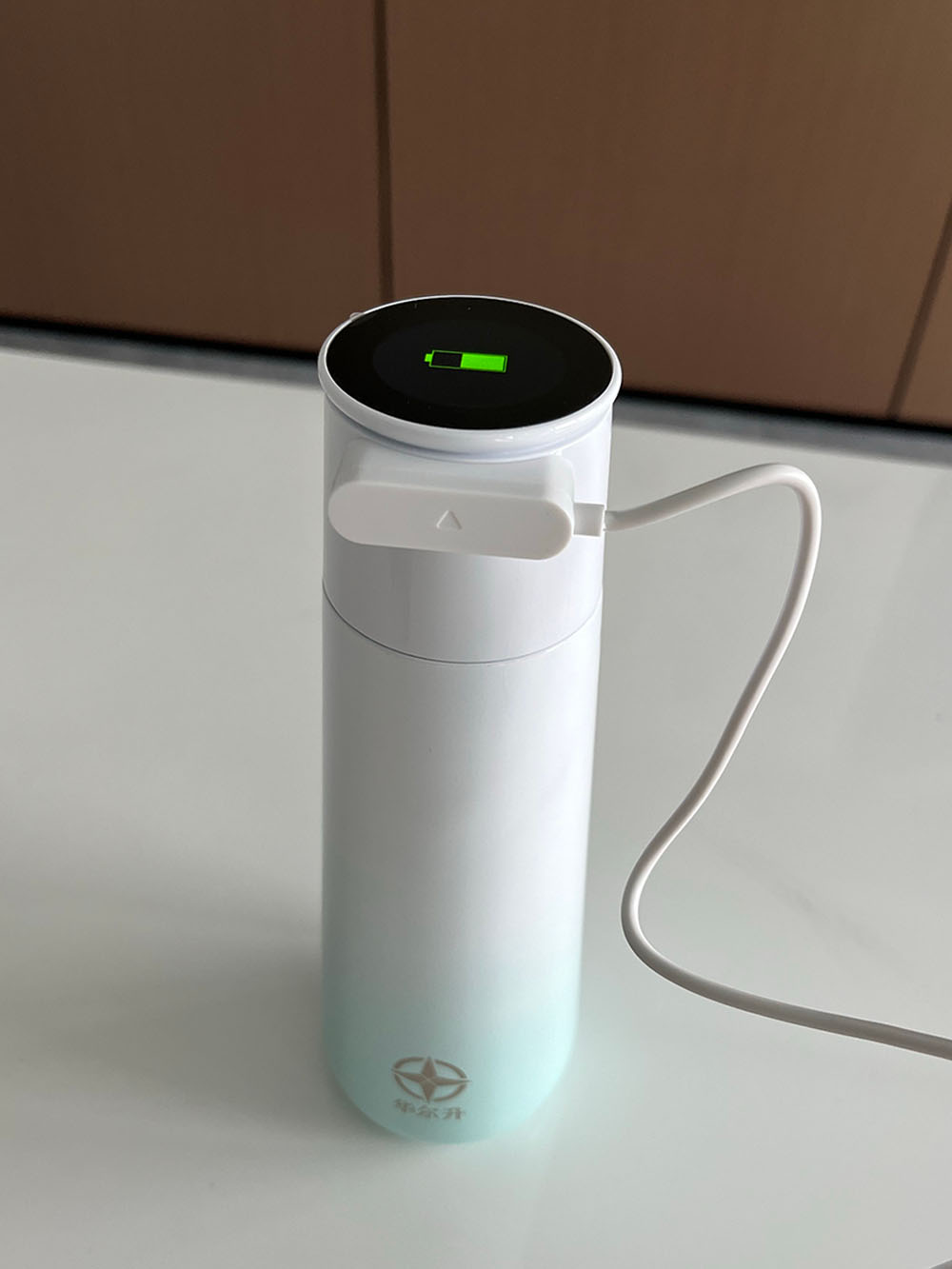

1.28 Inch TFT GC9A01 Driver IC Mini LCD Screen for Water Cup

The mono LCD display we will be discussing is a 1.28-inch TFT transmissive panel with a-SI (amorphous silicon) technology. It is designed with a viewing direction that encompasses all O'clock positions, allowing for flexible viewing angles. This display is known for its clear and vibrant images, making it ideal for various applications.

The dot arrangement of this LCD panel consists of 240 (red, green, blue) dots horizontally and 240 dots vertically, resulting in a total resolution of 240x240. This high pixel density ensures sharp and detailed visuals, enabling precise rendering of text, graphics, and images.

The module size of the LCD display measures 47.30mm in width, 47.30mm in height, and 3.01mm in thickness. Its compact form factor allows for easy integration into different devices and systems without occupying excessive space. The active area of the display, where the actual content is displayed, spans 32.40mm by 32.40mm, providing ample screen real estate to showcase information.

Each individual pixel on this LCD panel measures 0.135mm in width and 0.135mm in height. This pixel size contributes to the overall clarity and sharpness of the displayed content, ensuring that fine details are accurately represented.

To illuminate the display, the LCD employs a LED backlight system. Specifically, it utilizes two LEDs with a 40mA current, resulting in sufficient brightness to ensure optimal visibility even in various lighting conditions. The LED backlighting technology offers energy efficiency, extended lifespan, and uniform illumination across the entire screen.

The driver IC used in this LCD display is the GC9A01, a reliable and efficient integrated circuit responsible for controlling the display's operation. It facilitates the smooth transmission of data and commands, enabling the display to accurately interpret and render the desired content. The GC9A01 IC is known for its performance, stability, and compatibility with various input signals.

The interface type of this LCD display is 4SPI (Serial Peripheral Interface), which is a common and widely supported protocol for data communication between integrated circuits. The 4SPI interface enables seamless connectivity with a host system, allowing for efficient data transfer and control.

With a luminance of 350cd/m2 (typical), this LCD display delivers a bright and vivid visual experience. The high luminance ensures that the content on the screen remains easily readable and discernible even in brightly lit environments.

The operating temperature range for this display spans from -20°C to 70°C, allowing it to function optimally under a wide range of ambient temperatures. This feature makes it suitable for deployment in various environments, including both indoor and outdoor applications. Additionally, the storage temperature range of -30°C to 80°C ensures the display's integrity and performance even during extended periods of inactivity or non-operation.

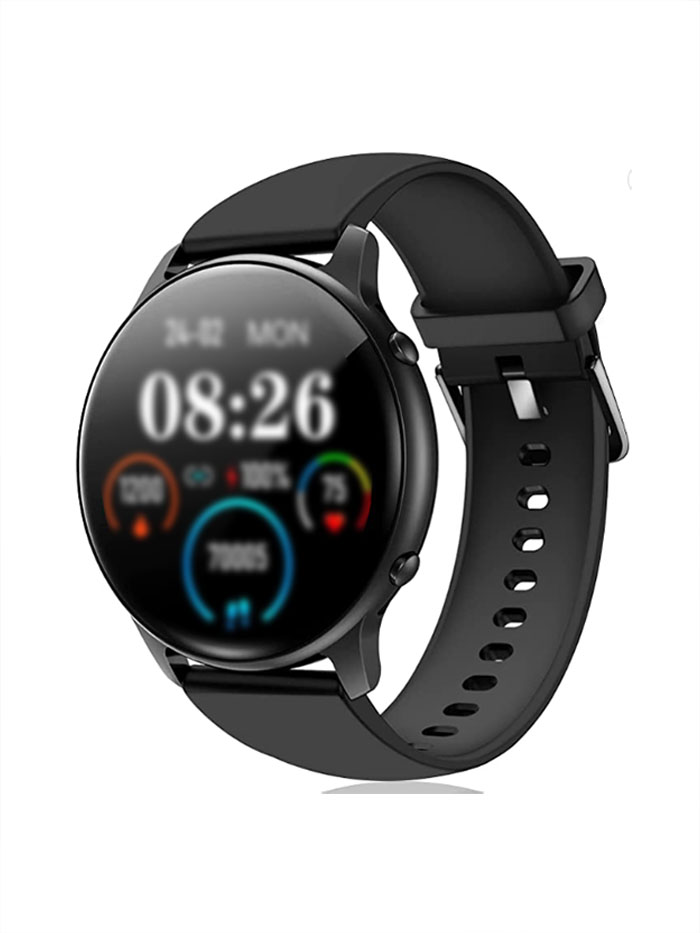

In summary, the mono LCD display described above offers a compact and versatile solution for visual information display. With its 1.28-inch size, high resolution, wide viewing angles, and vibrant color reproduction, it can serve a wide range of applications, including smartwatches, portable devices, medical equipment, and more. Its efficient LED backlighting, reliable driver IC, and robust interface make it a reliable choice for demanding scenarios. Furthermore, the operating temperature range and compact module size enhance its adaptability to different environments and integration requirements. Overall, this mono LCD display is a powerful tool for displaying information with clarity, precision, and durability.

TFT displays module are liquid-crystal display panel with thin-film transistor technology, bonding with IC driver, backlight unit, and flex cable, sometimes assemble control board with difference interface. TFT display is active display with high contrast than monochrome lcd, The TFT display technology could offers full RGB display in wide range display colors, high display resolution. We could get rich colors, detailed images, clear and bright graphics display from a tft lcd module.

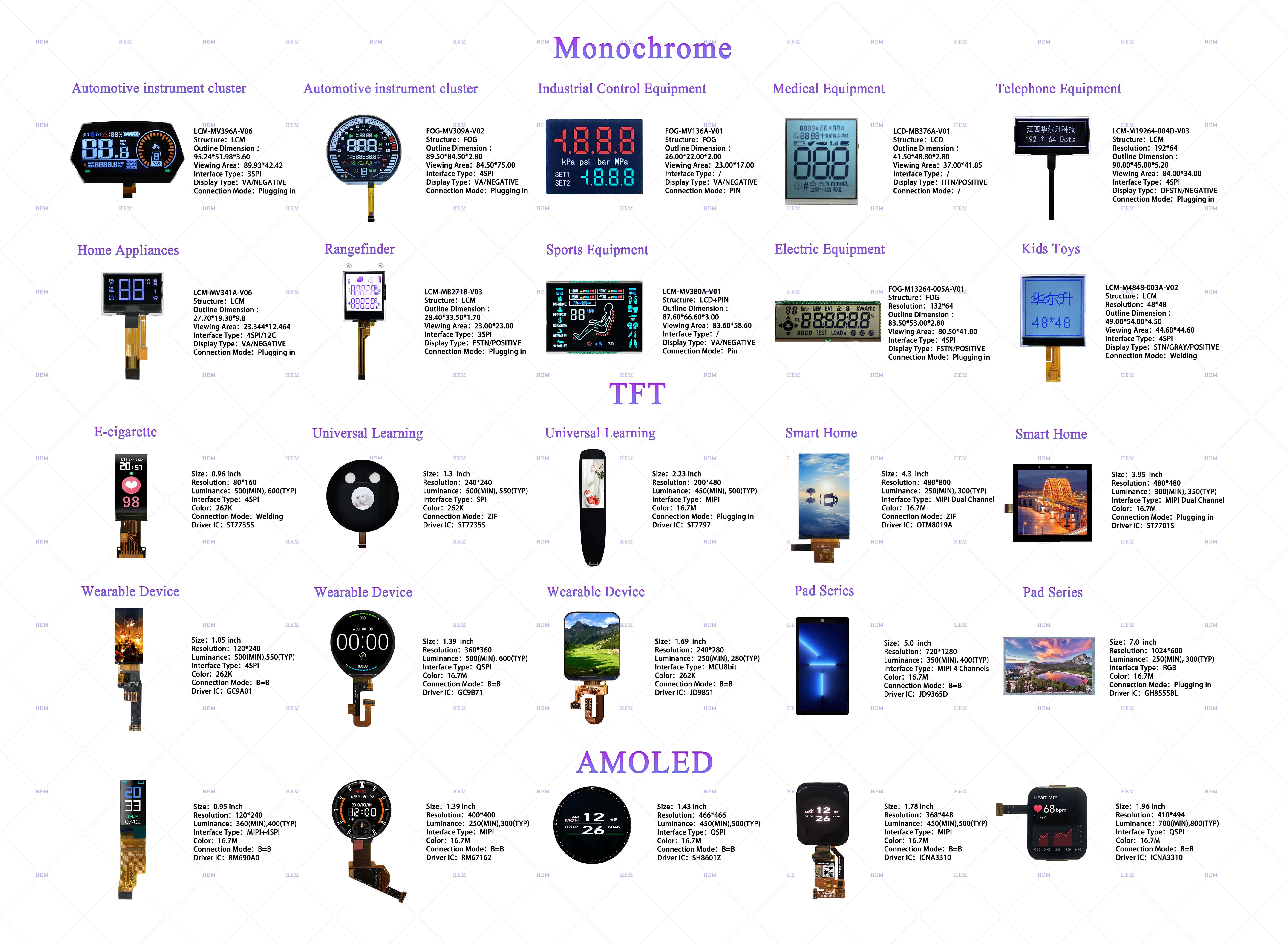

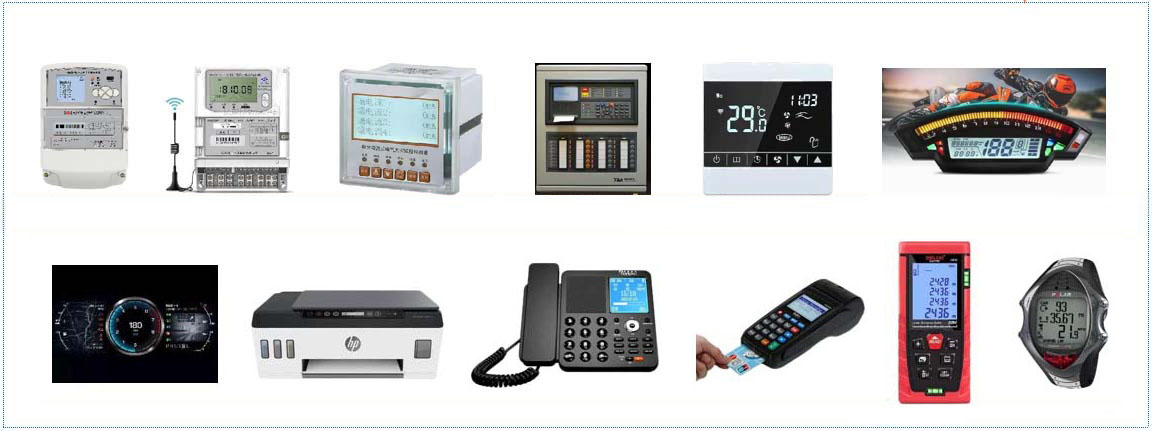

HEM provide wide range small sizes tft lcd display module. Our small tft lcd sizes ( diagonal size of tft active area) have 0.96” tft lcd, 1.05” tft lcd, 1.09” tft lcd, 1.14”tft lcd, 1.28” tft lcd display module, 1.32” tft lcd, 1.44” tft lcd module, 1.47” tft display module, 1.69” tft lcd, 1.72” tft display, 1.91inch tft, 2.0” tft lcd. 2.4” tft lcd module, 2.8”inch tft, 3.5” tft lcd, 4.3” tft lcd display module, 5 inch tft, 7” tft display module. Our wide range standard tft lcd module could meet the most of application for Wearable, Smart home, industrial, medical. Such as wearable watch, bracelet, videophone, coffee machine, medical equipment, POS system, kitchen display, cooking machine, IOT, and etc.
HEM TFT lcd display module quality is on industrial standard, our raw materials are chosen on the industrial grade base.

HEM tft lcd module including standard tft-lcd modules, wide viewing angle IPS tft lcd, and transflective tft lcd, reflective tft, Wide temperature tft lcd, round type tft lcd, bar type tft lcd, Resistive touch panel and Capacitive touch screen (PCAP) with tft lcd.
Our tft lcd module have variety interface including MCU, RGB, TTL, LVDS, MIPI, serial SPI, I2C interface. The tft lcd display resolution from such as 80x160 pixels, 240X240 pixels, 320X380 pixels, tft lcd display module, and high resolution such 720 X 1280 1024X600 resolution.

We are specialized in LCD display, including mono LCD module,TFT module and AMOLED module, which is the high and new tech enterprises in the country with the independent research and development, manufacturation and sales. It has developed as the excellent one of the medium and small-size field display terminal suppliers.

We have been focused on customized TN/STN/FSTN/VA monochorome displays,as well as small to medium sized TFT displays and oled displays for about 17 years.

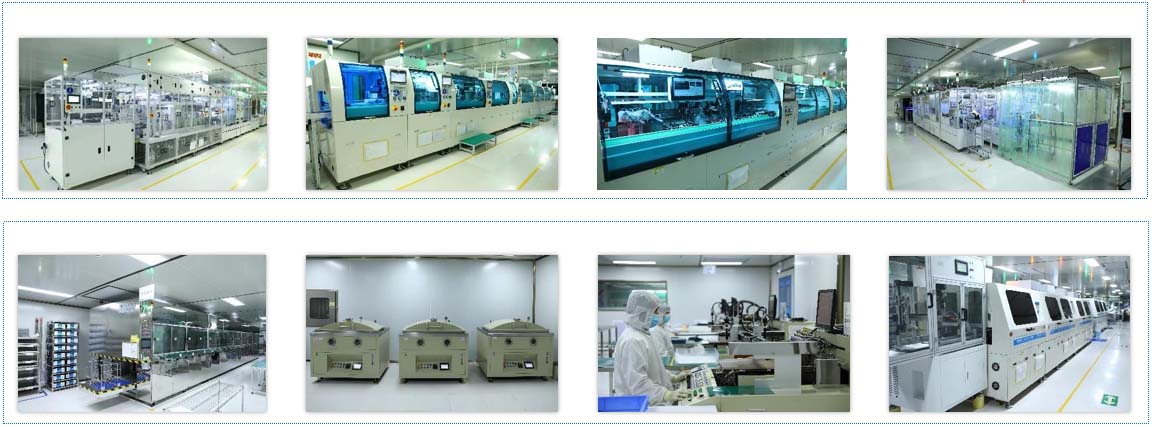

We now have two complete monochrome LCD production lines, a dozen of fully automatic COG production line and the full processing capacity for COB and CTP full lamination.With a professional R&D team, Well-developed quality control system, highly effective execution and management team and a pro-innovation corporate culture. We vow to satisfy our customers by meeting the quantity and quality requirements.

A MES (Manufacturing Execution System) quality process flowchart is a visual representation of the steps involved in the manufacturing process, from raw materials to finished products, with a focus on quality control.Overall, the MES quality process flowchart helps to ensure that the manufacturing process is carried out efficiently and effectively, with a focus on quality control and customer satisfaction.

Jiangxi HEM Technology Co.Ltd.was incorporated in 2016 and finds its headquarters in Wanzai  of Jiangxi Province.

Huaersheng  invested 106,667 square meters display industrial park in 2022,which has the floorage of  12000 square matres.

Park planning: 2 panel production lines of 370mm*470mm, 6full-automatic AMOLED production lines,30 COG  full-automatic AMOLED production lines.

1.What kinds of display does HEM have?

 HEM is specializing in manufacturing TFT LCD display, Monochrome LCD display,Touch Screen, customized LCD panel, COB and COG display.

 2.How can I find the right product?

Please send us your requirements or datasheet, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

3. Do you accept sample order or small quantity order?

Yes, you can place 1.28 inch TFT sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

 4.What’s the lead time?

 Usually 3~5 days for 1.28 inch TFT sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and particular product).

5.What’s your order process?

Evaluating the project and give quotation→confirming with the customers→customers 100% pay the tooling fee and samples cost in advance→we arrange the drawings for customer in three woking days after received the payment→customers confirm the drawings→we arrange the production of samples in two or three weeks after the customers confirm the drawings are okay→send the sample to the customers for testing→modify the design according to the customer's opinion and send the sample again until the customer is satisfied→customer 30% payment in advance→batch production
