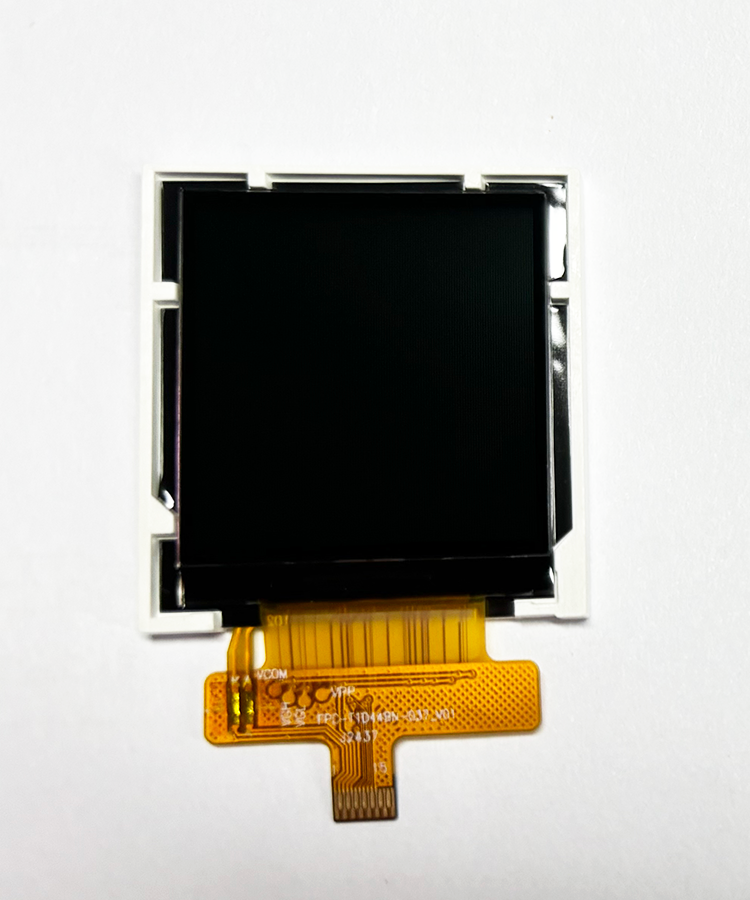

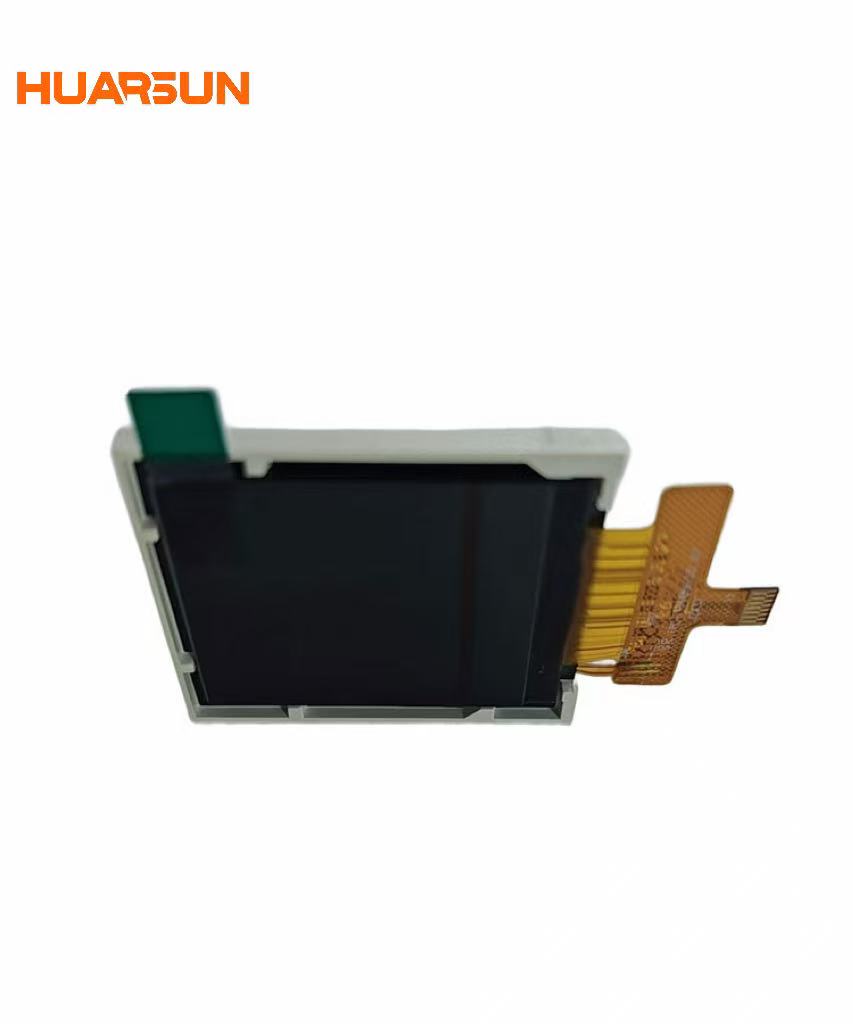

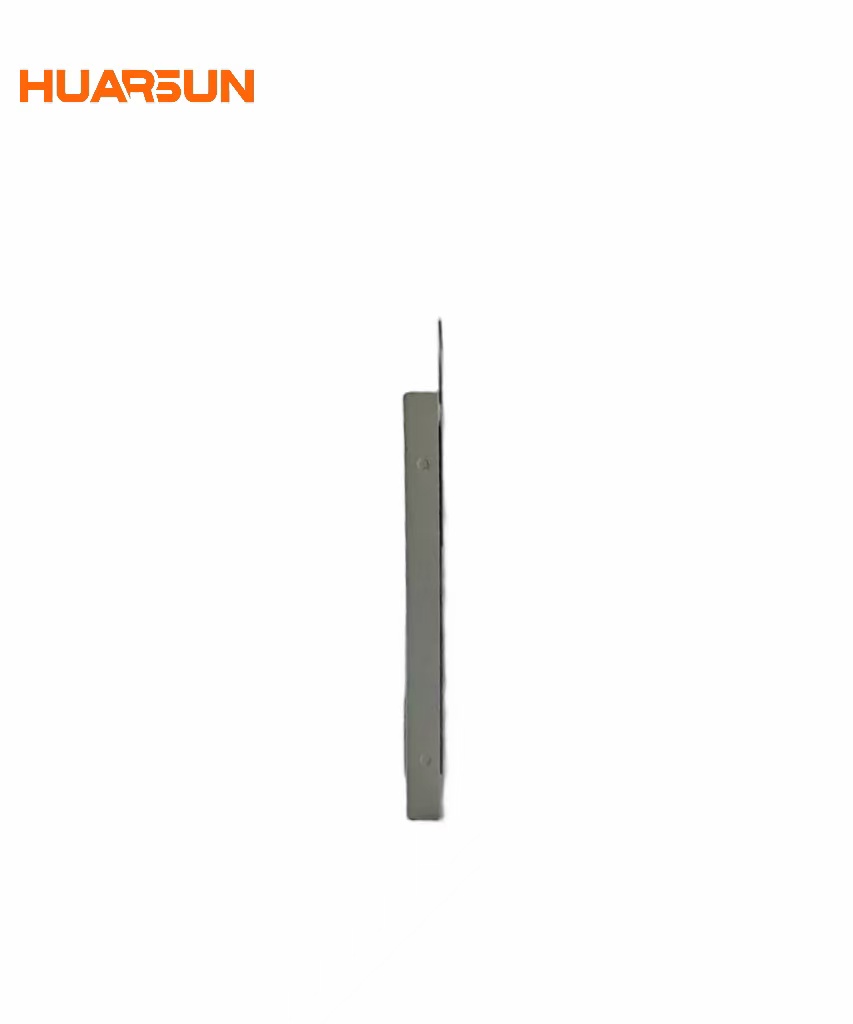

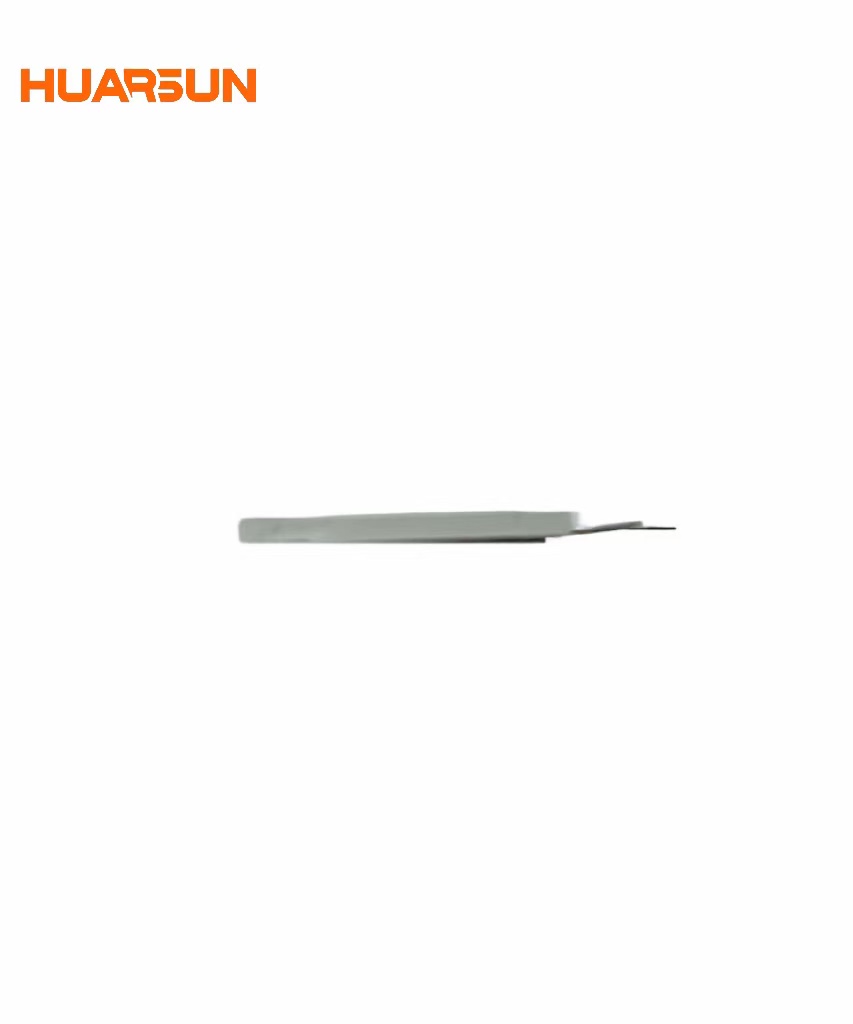

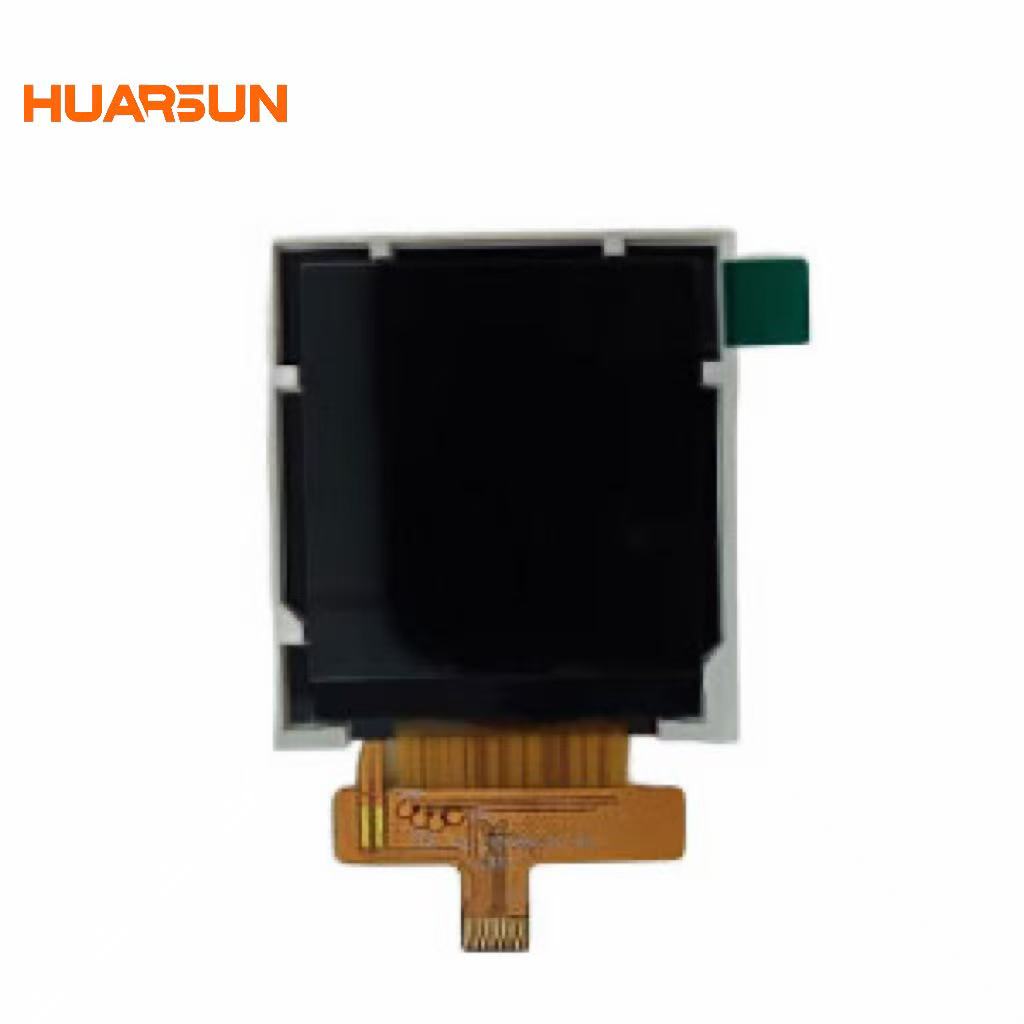

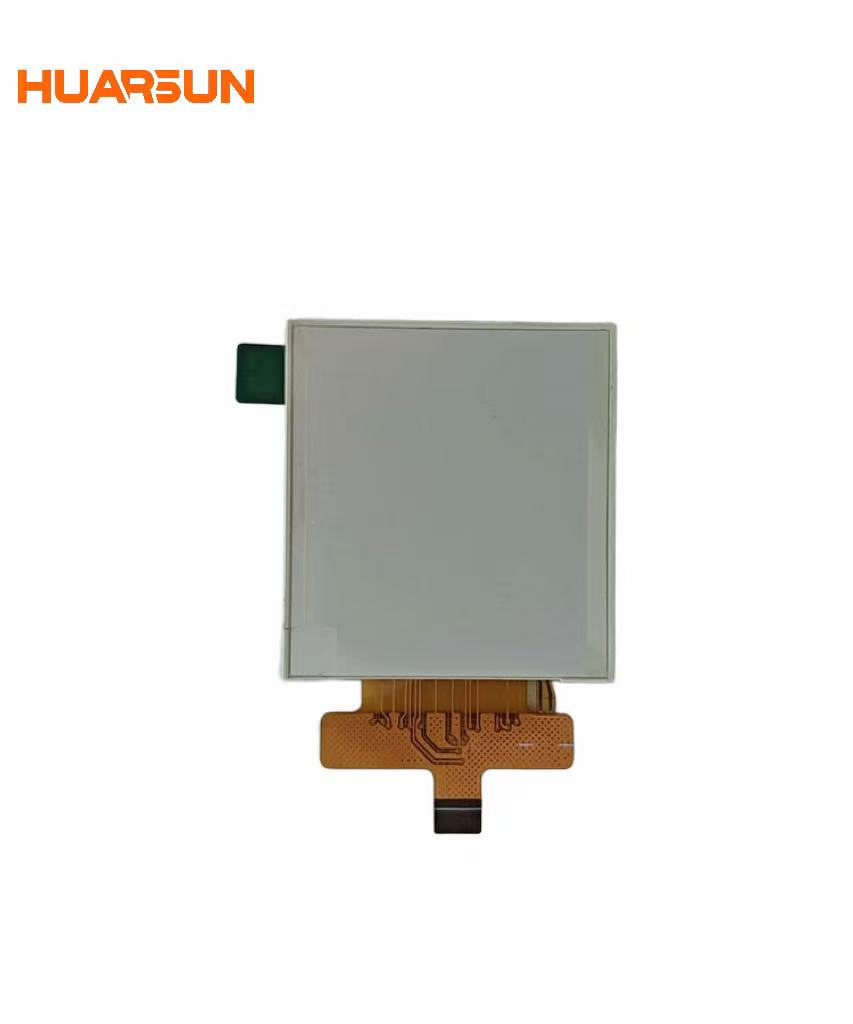

1.44inch TFT Display 120RGB*120 Color TFT LCM Display with 15Pin

1.44"TFT 120x120 Square Shape LED Light TFT LCD Display with 4SPI
LCD model/type/resolution	BOE 1.44 TFT 120x120
Viewing angle	6 o'clock
Working temperature	-20℃～70℃
Storage temperature	-30℃～80℃
Polarizer	45° on top/45° on bottom
Driver IC	ST7735V3
Interface type:	4SPI
LED number/connection method/current	1-CHIP WITH LED
Brightness	180MIN/220TYP/300MAX(CD/M2)

Our Products

We are specialized in LCD display, including mono LCD module,TFT module and AMOLED module, which is the high and new tech enterprises in the country with the independent research and development, manufacturation and sales. It has developed as the excellent one of the medium and small-size field display terminal suppliers.

We have been focused on customized TN/STN/FSTN/VA monochorome displays,as well as small to medium sized TFT displays and oled displays for about 17 years.

Product Application

The application of monochrome products：industrial control, home intelligent control,onboard instrument,official screen, mobile payment etc. personalizing custom in product family design according to custom's needs.

TFT Amoled

The application of AMOLED products：intelligent wearing, children's education

The application of TFT products：intelligent wearing, children's education, smart home, industrial control medical treatment, mobile payment etc.

TFT Amoled

Manufacturing Capacity

We now have two complete monochrome LCD production lines, a dozen of fully automatic COG production line and the full processing capacity for COB and CTP full lamination.With a professional R&D team, Well-developed quality control system, highly effective execution and management team and a pro-innovation corporate culture. We vow to satisfy our customers by meeting the quantity and quality requirements.

LCD：2production lines 、370mm*470mm panel、production capacity 60K/Mark/M

COG: 13 all-automatic production lines、0.5'' -8”modules、production capacity 5KK/M

COF：2 all-automatic production lines、 0.7”-7”modules、production capacity 500K/M

Team：800people in total, 60technicians,80 people in quality department.

Quality Assurance

Reliability Test Equipment: 17

Quality Inspection Equipment: 230

Quality Assurance System: MES system, ERP system

MES Quality Process Flowchart

quailty process lcd module

A MES (Manufacturing Execution System) quality process flowchart is a visual representation of the steps involved in the manufacturing process, from raw materials to finished products, with a focus on quality control.Overall, the MES quality process flowchart helps to ensure that the manufacturing process is carried out efficiently and effectively, with a focus on quality control and customer satisfaction.

The Honor of Enterprise

Intelligent Display Terminal Supplier

Thanks to our approach to seek innovation driven development, HEM has been pushing the frontier of the industry. We have earned honourary titles and certificates, such as ISO ISO9001 quality management certification, ISO14001 environment management certification, Director of Shenzhen Smart Wearable Device Industry Association, Member of National Medical Device Industry Association and National Hi-tech Company.

Location

Shenzhen Operation Center

Jiangxi Manufacturing Center

Jiangxi HEM Technology Co.Ltd.was incorporated in 2016 and finds its headquarters in Wanzai of Jiangxi Province.

Looking ahead

Huaersheng invested 106,667 square meters display industrial park in 2022,which has the floorage of 12000 square matres. Park planning: 2 panel production lines of 370mm*470mm, 6full-automatic AMOLED production lines,30 COG full-automatic AMOLED production lines.

FAQ

1.What kinds of display does HEM have?

HEM is specializing in manufacturing TFT LCD display, Monochrome LCD display,Touch Screen, customized LCD panel, COB and COG display.

2.How can I find the right product?

Please send us your requirements or datasheet, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

3. Do you accept sample order or small quantity order?

Yes, you can place 1.39 inch sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

4.What’s the lead time?

Usually 3~5 days for 1.39 inch TFT sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and particular product).

5.What’s your order process?

Evaluating the project and give quotation→confirming with the customers→customers 100% pay the tooling fee and samples cost in advance→we arrange the drawings for customer in three woking days after received the payment→customers confirm the drawings→we arrange the production of samples in two or three weeks after the customers confirm the drawings are okay→send the sample to the customers for testing→modify the design according to the customer's opinion and send the sample again until the customer is satisfied→customer 30% payment in advance→batch production
