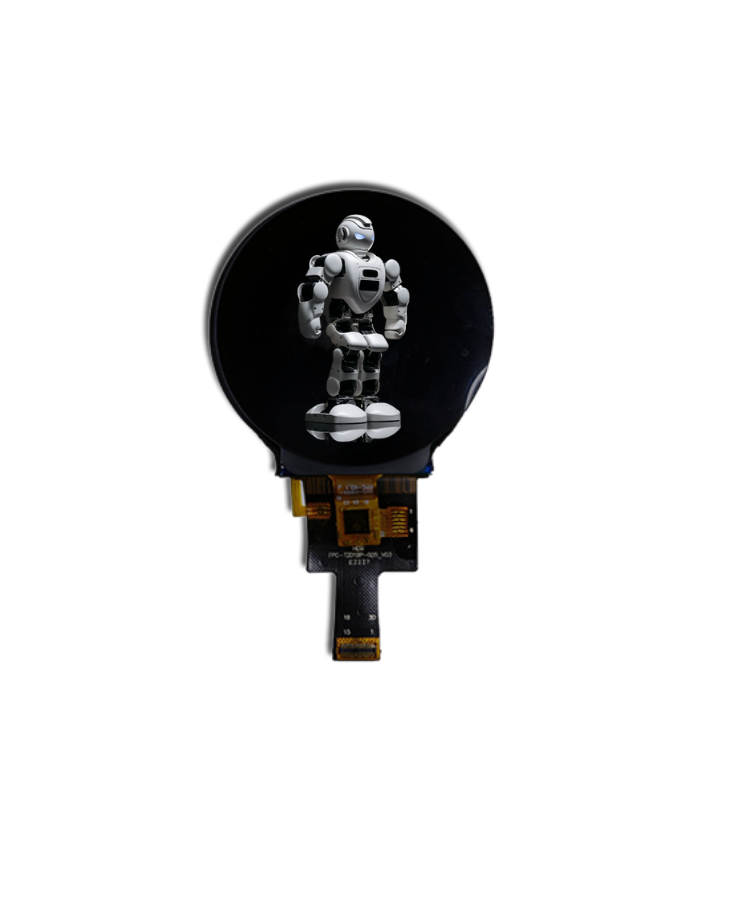

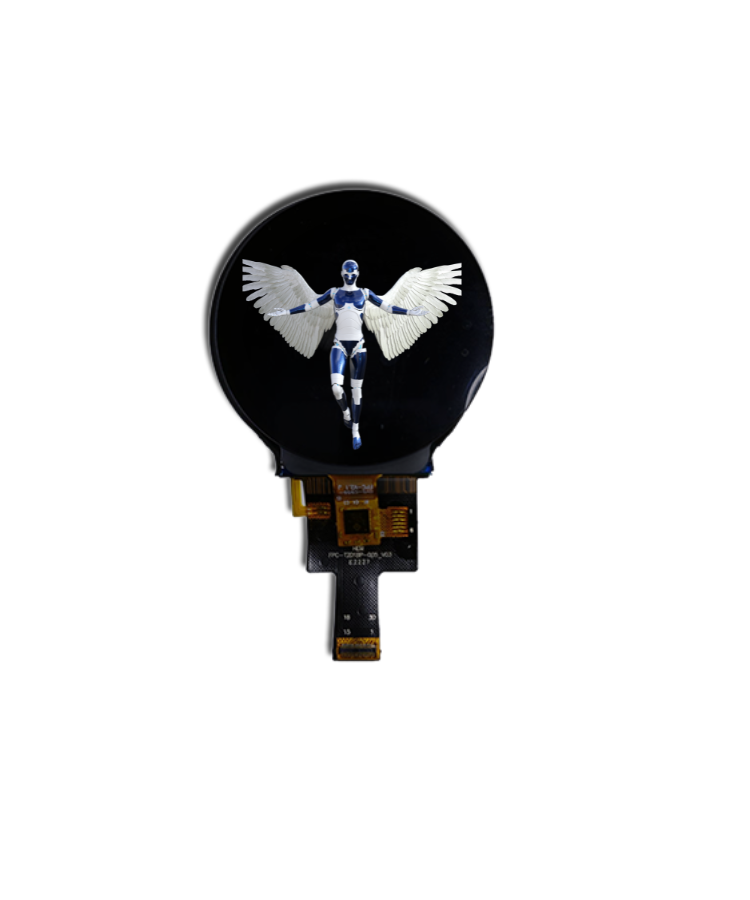

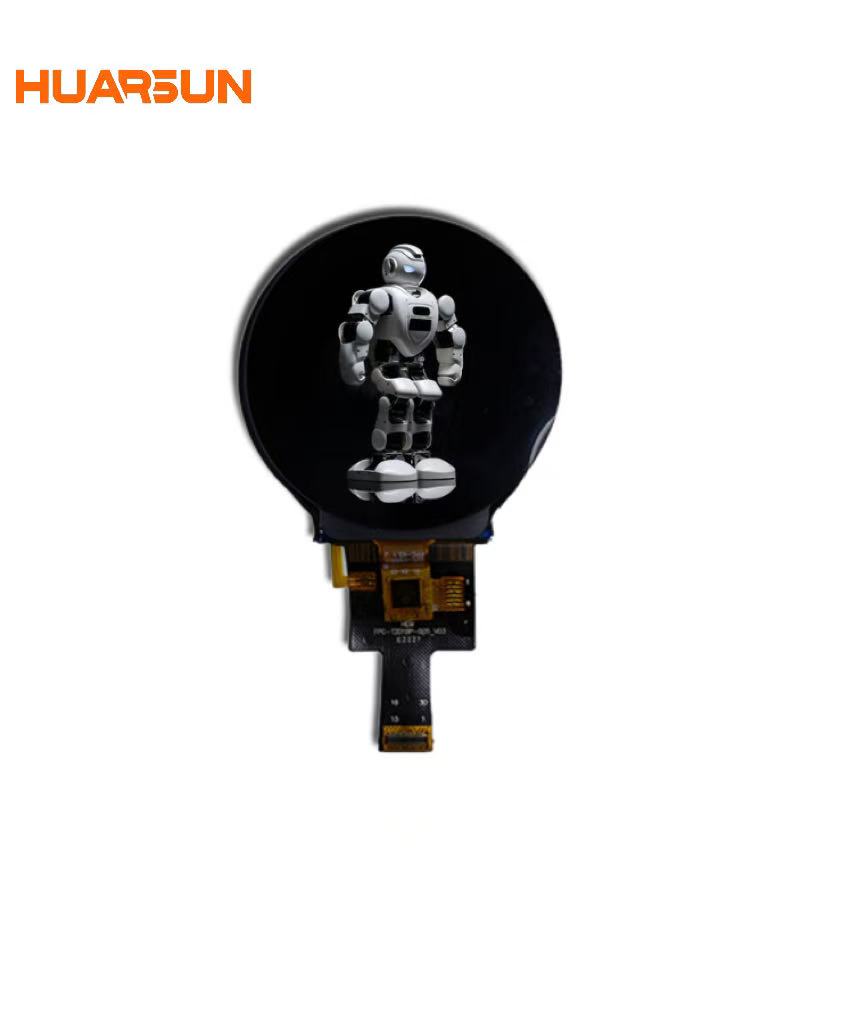

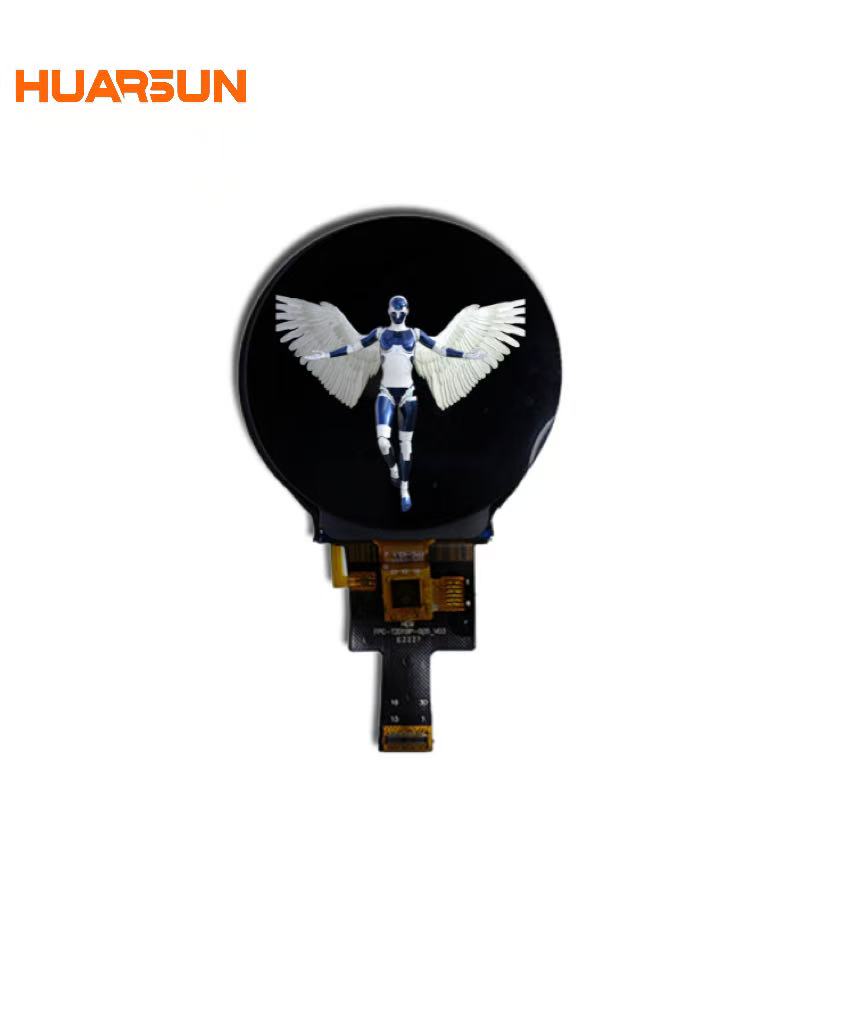

Hemlcd 2.1 TFT Display Normal Black Original Screen Manufacturer with 4 White Leds |
|
|---|---|
| DISPLAY TYPE | 2.1"TFT,Normal Black |
| DRIVER IC | ST7701S |
| VIEWING DIRECTION | ALL |
| OPERATING TEMPERATURE | -20°C-+70°C |
| STORAGE TEMPERATURE | -30°C-+80°C |
| BACKLIGHT TYPE | 4 WHITE LEDS. |
| LED:If=20mA/LED (CONSTANT CURRENT) | |
| What is TFT display module? |
|

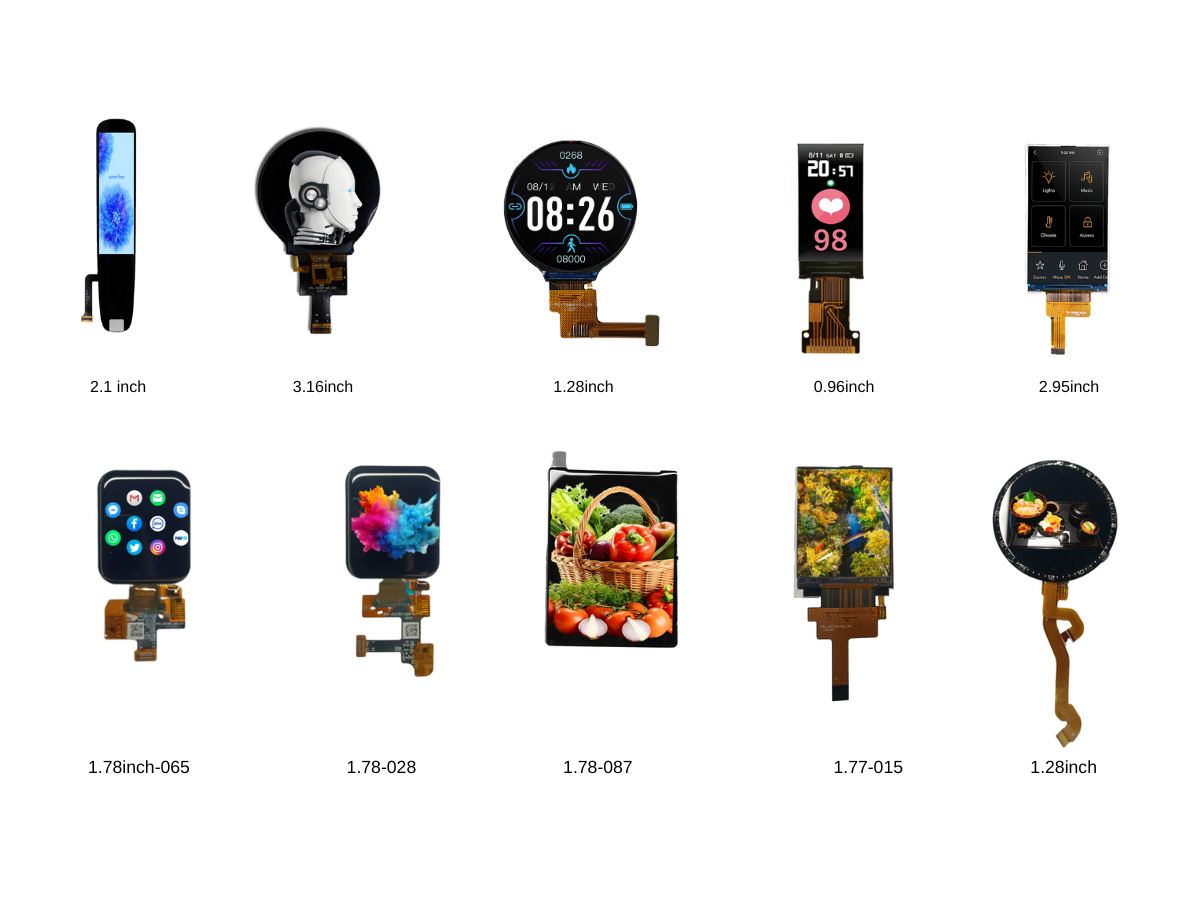

TFT displays module are liquid-crystal display panel with thin-film transistor technology, bonding with IC driver, backlight unit, and flex cable, sometimes assemble control board with difference interface. TFT display is active display with high contrast than monochrome lcd, The TFT display technology could offers full RGB display in wide range display colors, high display resolution. We could get rich colors, detailed images, clear and bright graphics display from a tft lcd module. HEM provide wide range small sizes tft lcd display module. Our small tft lcd sizes ( diagonal size of tft active area) have 0.96” tft lcd, 1.05” tft lcd, 1.09” tft lcd, 1.14”tft lcd, 1.28” tft lcd display module, 1.32” tft lcd, 1.44” tft lcd module, 1.47” tft display module, 1.69” tft lcd, 1.72” tft display, 1.91inch tft, 2.0” tft lcd. 2.4” tft lcd module, 2.8”inch tft, 3.5” tft lcd, 4.3” tft lcd display module, 5 inch tft, 7” tft display module. Our wide range standard tft lcd module could meet the most of application for Wearable, Smart home, industrial, medical. Such as wearable watch, bracelet, videophone, coffee machine, medical equipment, POS system, kitchen display, cooking machine, IOT, and etc. HEM TFT lcd display module quality is on industrial standard, our raw materials are chosen on the industrial grade base. HEM tft lcd module including standard tft-lcd modules, wide viewing angle IPS tft lcd, and transflective tft lcd, reflective tft, Wide temperature tft lcd, round type tft lcd, bar type tft lcd, Resistive touch panel and Capacitive touch screen (PCAP) with tft lcd. Our tft lcd module have variety interface including MCU, RGB, TTL, LVDS, MIPI, serial SPI, I2C interface. The tft lcd display resolution from such as 80x160 pixels, 240X240 pixels, 320X380 pixels, tft lcd display module, and high resolution such 720 X 1280 1024X600 resolution. |
Our Products
|
We are specialized in LCD display, including mono LCD module,TFT module and AMOLED module, which is the high and new tech enterprises in the country with the independent research and development, manufacturation and sales. It has developed as the excellent one of the medium and small-size field display terminal suppliers. We have been focused on customized TN/STN/FSTN/VA monochorome displays,as well as small to medium sized TFT displays and oled displays for about 17 years.
|
Product Application
| The application of monochrome products：industrial control, home intelligent control,onboard instrument,official screen, mobile payment etc. personalizing custom in product family design according to custom's needs. |
| The application of AMOLED products：intelligent wearing, children's education |
| The application of TFT products：intelligent wearing, children's education, smart home, industrial control medical treatment, mobile payment etc. |
Manufacturing Capacity
|
We now have two complete monochrome LCD production lines, a dozen of fully automatic COG production line and the full processing capacity for COB and CTP full lamination.With a professional R&D team, Well-developed quality control system, highly effective execution and management team and a pro-innovation corporate culture. We vow to satisfy our customers by meeting the quantity and quality requirements. |
| LCD：2production lines 、370mm*470mm panel、production capacity 60K/Mark/M |
| COG: 13 all-automatic production lines、0.5'' -8”modules、production capacity 5KK/M |
| COF：2 all-automatic production lines、 0.7”-7”modules、production capacity 500K/M |
| Team：800people in total, 60technicians,80 people in quality department. |
Quality Assurance
| Reliability Test Equipment: 17 |
| Quality Inspection Equipment: 230 |
| Quality Assurance System: MES system, ERP system |
MES Quality Process Flowchart
|
A MES (Manufacturing Execution System) quality process flowchart is a visual representation of the steps involved in the manufacturing process, from raw materials to finished products, with a focus on quality control.Overall, the MES quality process flowchart helps to ensure that the manufacturing process is carried out efficiently and effectively, with a focus on quality control and customer satisfaction. |
The Honor of Enterprise
| Thanks to our approach to seek innovation driven development, HEM has been pushing the frontier of the industry. We have earned honourary titles and certificates, such as ISO ISO9001 quality management certification, ISO14001 environment management certification, Director of Shenzhen Smart Wearable Device Industry Association, Member of National Medical Device Industry Association and National Hi-tech Company. |
Location
Shenzhen Operation Center
Jiangxi Manufacturing Center
|
Jiangxi HEM Technology Co.Ltd.was incorporated in 2016 and finds its headquarters in Wanzai of Jiangxi Province. |
Looking ahead
| Huaersheng invested 106,667 square meters display industrial park in 2022,which has the floorage of 12000 square matres. Park planning: 2 panel production lines of 370mm*470mm, 6full-automatic AMOLED production lines,30 COG full-automatic AMOLED production lines. |
FAQ
1.What kinds of display does HEM have?
HEM is specializing in manufacturing TFT LCD display, Monochrome LCD display,Touch Screen, customized LCD panel, COB and COG display.
2.How can I find the right product?
Please send us your requirements or datasheet, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.
3. Do you accept sample order or small quantity order?
Yes, you can place 1.39 inch sample orders for testing first, and small quantity order as pilot production (no less than MOQ)
4.What’s the lead time?
Usually 3~5 days for 1.39 inch TFT sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and particular product).
5.What’s your order process?
Evaluating the project and give quotation→confirming with the customers→customers 100% pay the tooling fee and samples cost in advance→we arrange the drawings for customer in three woking days after received the payment→customers confirm the drawings→we arrange the production of samples in two or three weeks after the customers confirm the drawings are okay→send the sample to the customers for testing→modify the design according to the customer's opinion and send the sample again until the customer is satisfied→customer 30% payment in advance→batch production
1.44 Inch 128*128 4SPI TFT Small to Medium Size LCD Display Manufacturer
HEM-1.44 inch TFT Transmissive Module
2.95 Inch 480*854 Small Size TFT lcd Display Factory price
1.Display Type: TFT/Transmissive 2.Size:2.95inch 3.Dot arrangement: 480*854 4.Luminance:250(MIN),300(TYP) 5.Interface Type: Mipi Dual channel 6.Color:16.7M 7.Connection Mode:B=B 8.Driver IC:ST7701S
3.95 Inch High Brightness TFT LCD Panel Display with Smart Home
HEM-3.95 inch TFT Transmissive Module LCD Size:3.95inch Panel Type: IPS Resolution: 480*480 Display Mode：Normally Black Color:16.7M Viewing Direction: Free Luminance: 300cd/m2 Module Size: 85.80*86.00*3.35 Active Area: 71.86*70.13 Pixel Pitch
4.0 Inch Colour TFT Screen 480x800 LCD Module Display For Wise Home
HEM-4.0 inch TFT Transmissive Module LCD Size ：4.0inch Panel Type：IPS Resolution：480*800 Module Size：56.34*95.7*2 Active Area：51.84*86.4 Driver IC：ST7701S Interface Type：RGB-24
4.3 Inch TFT 16.7M IPS 480*800 Transmissive Module LCD Display
LCD Type：16.7M,a-SI,TFT TRANSMISSVIE,NORMAL BLACK Diagonal length：4.3 inch Viewing Direction：ALL O`CLOCK Dot Arrangement：480*800 Dot Module Size：61.2*103.0*1.8 mm Active area：56.16*93.60 mm Pixel Size：0.117*0.117 mm Backlight Type：LED(white 8S LEDS
