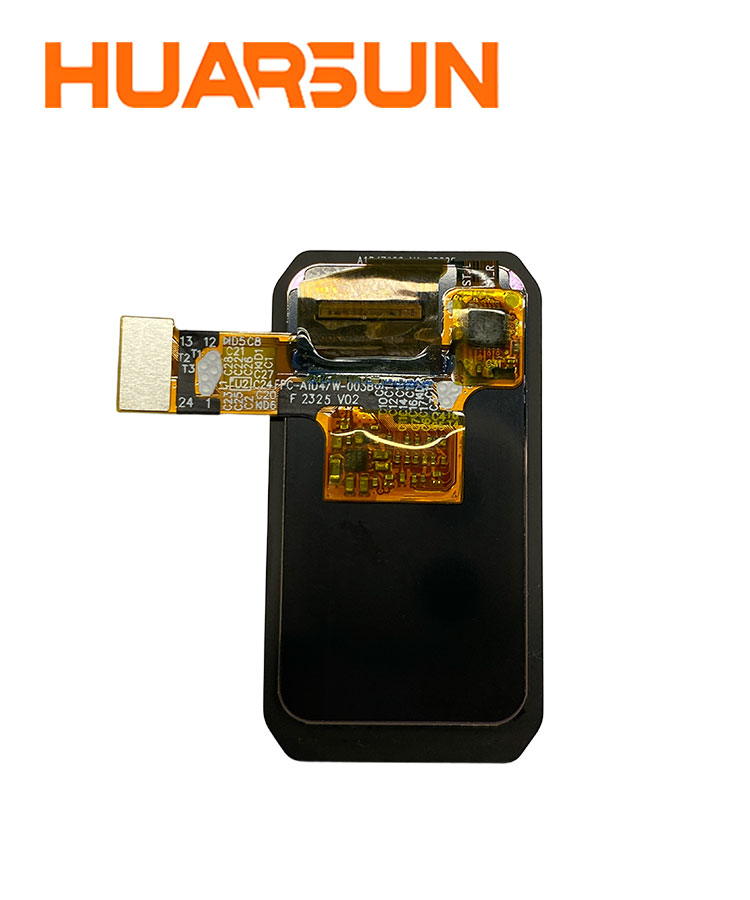

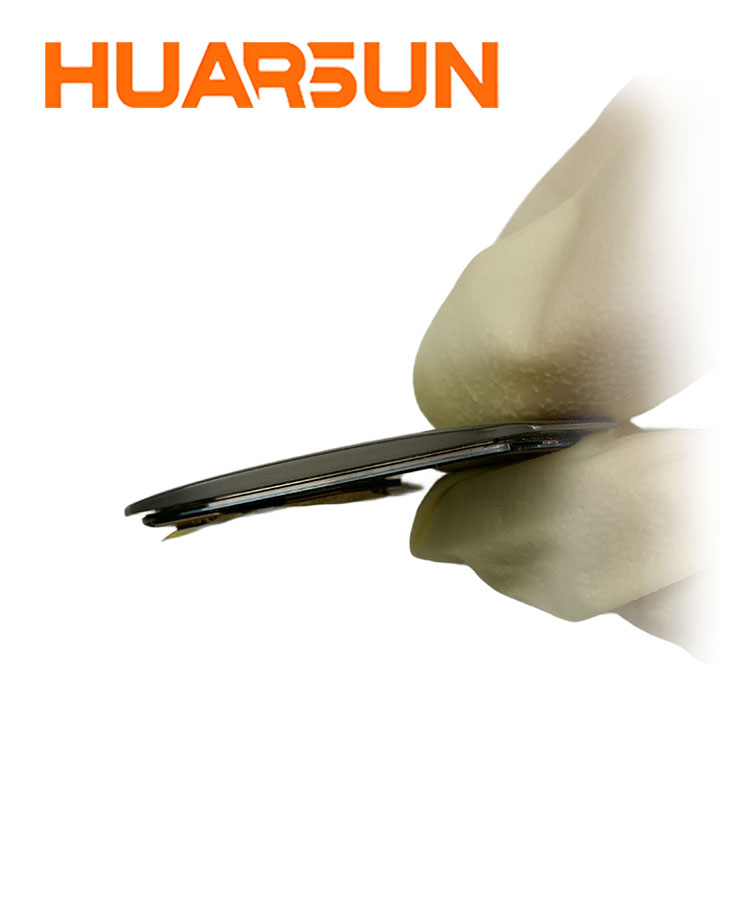

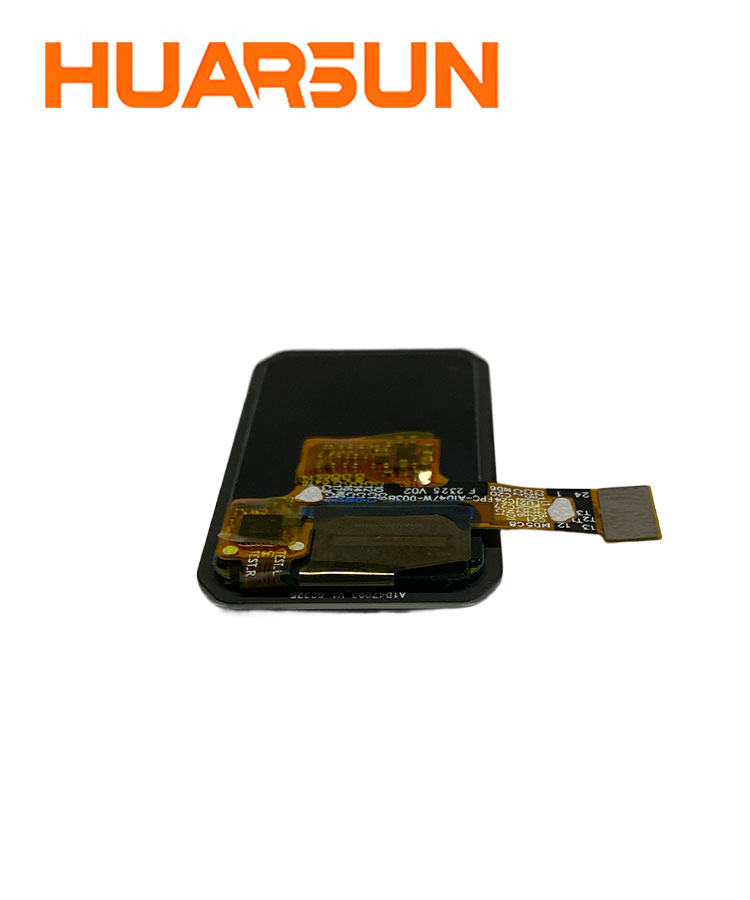

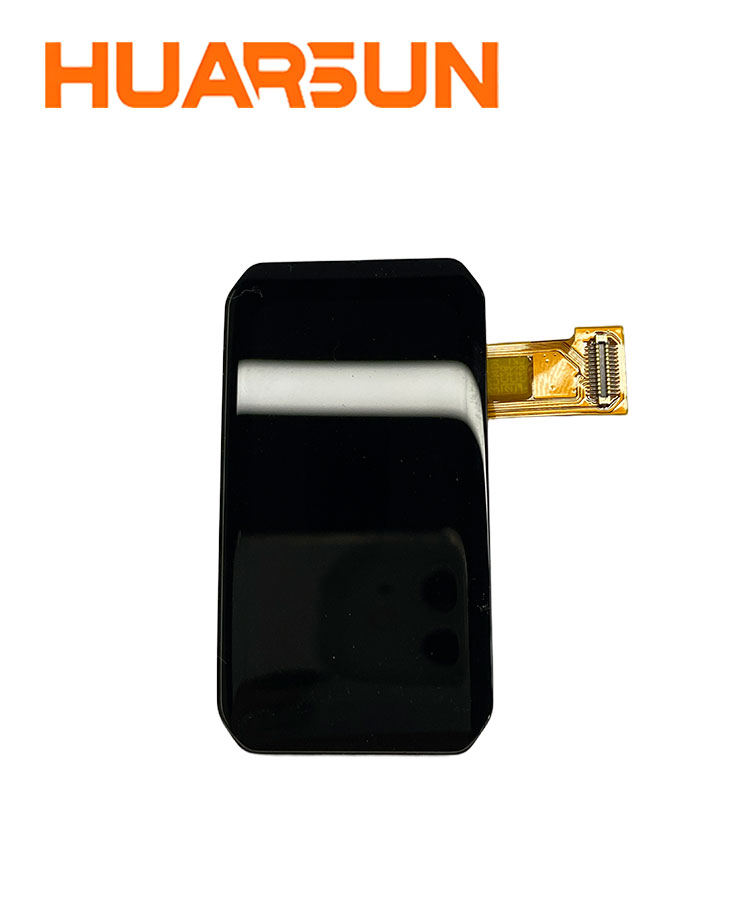

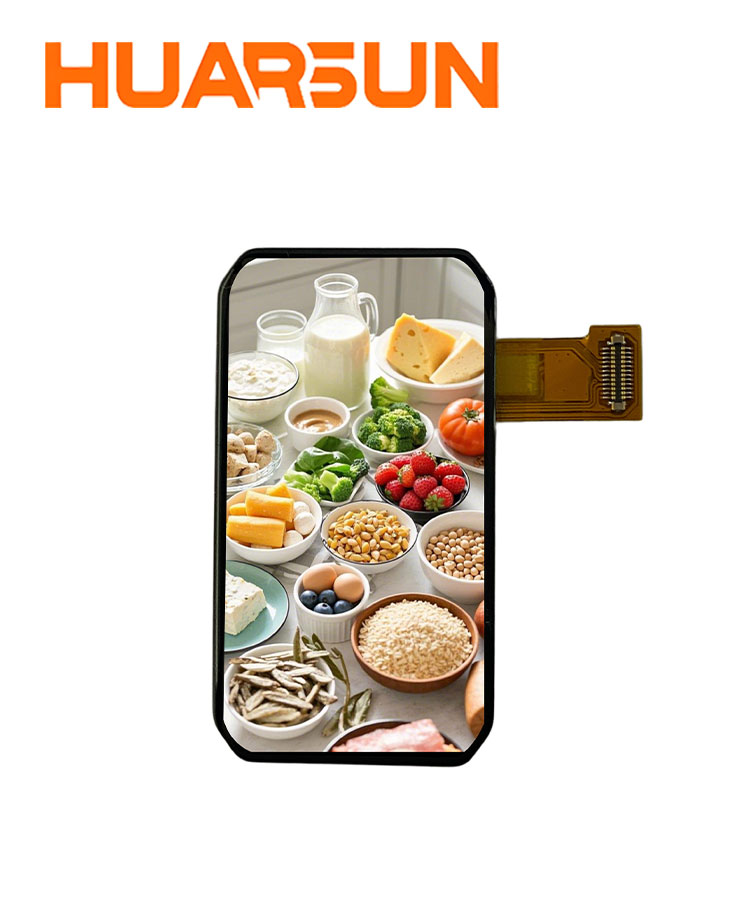

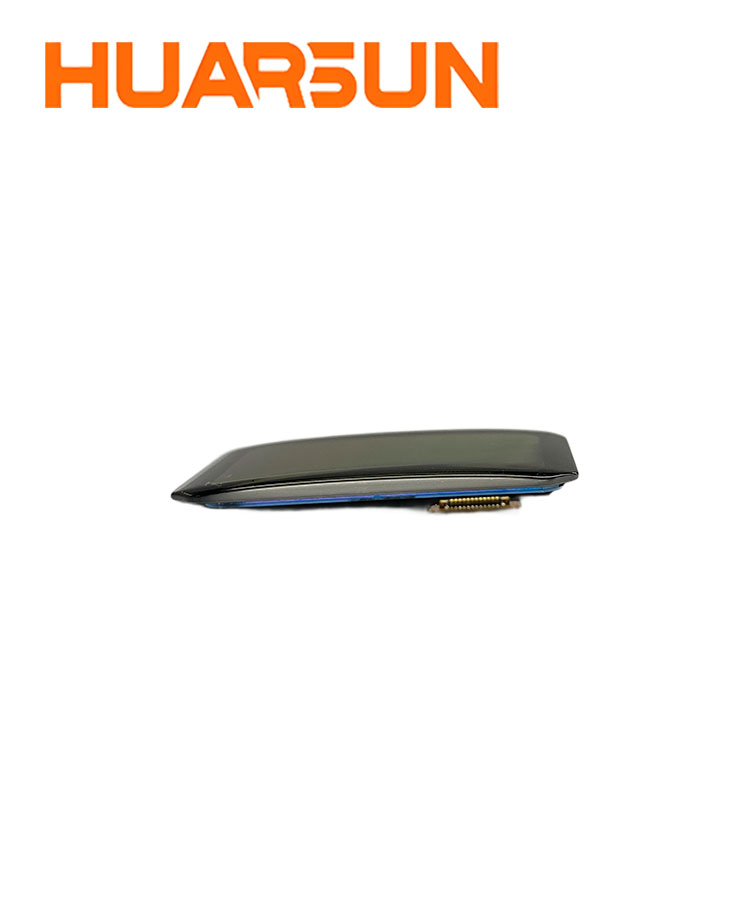

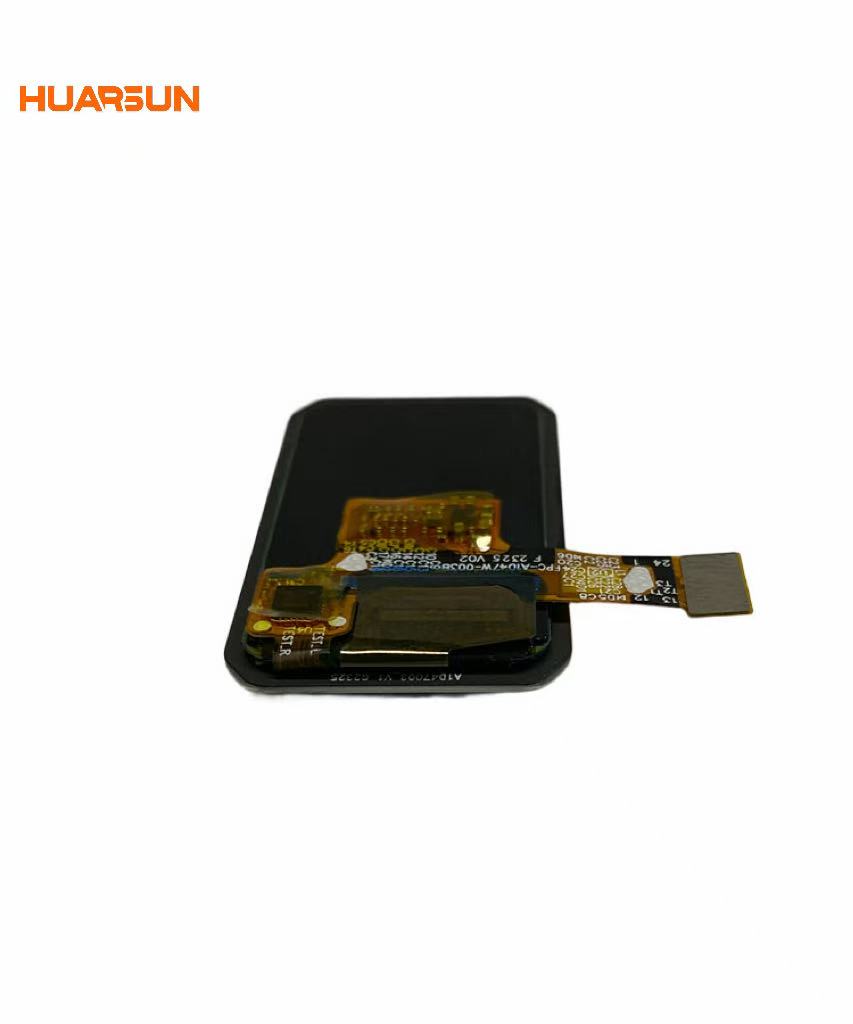

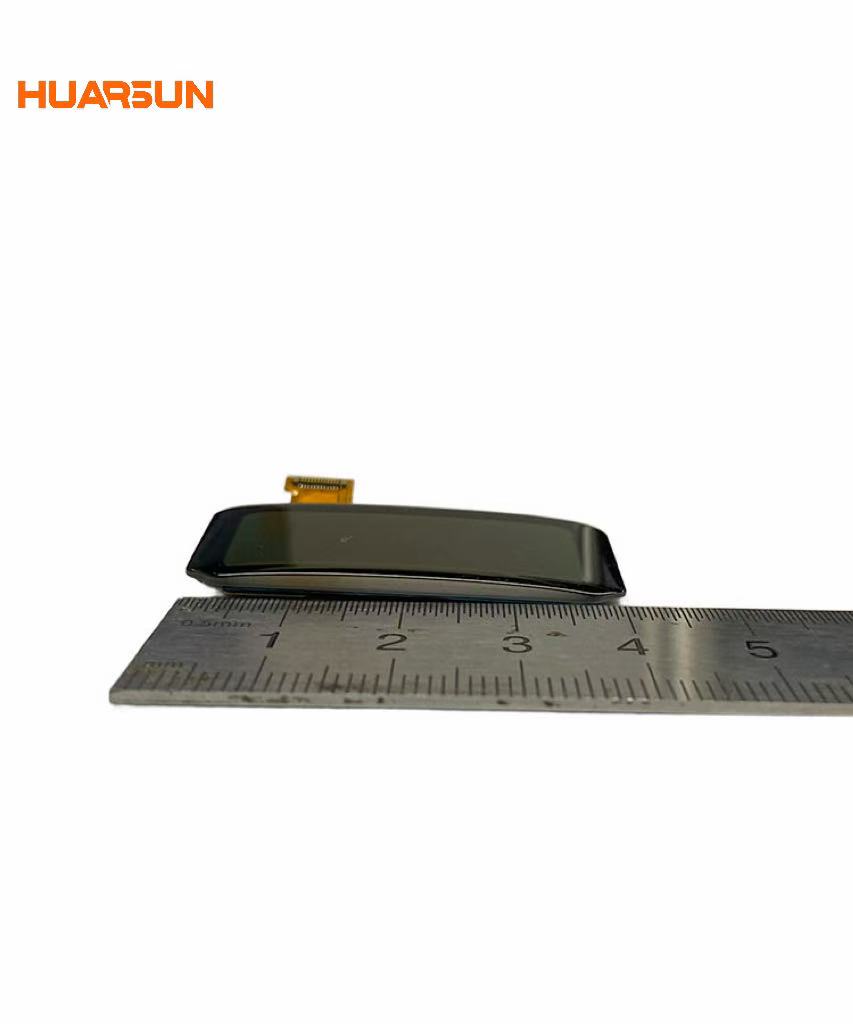

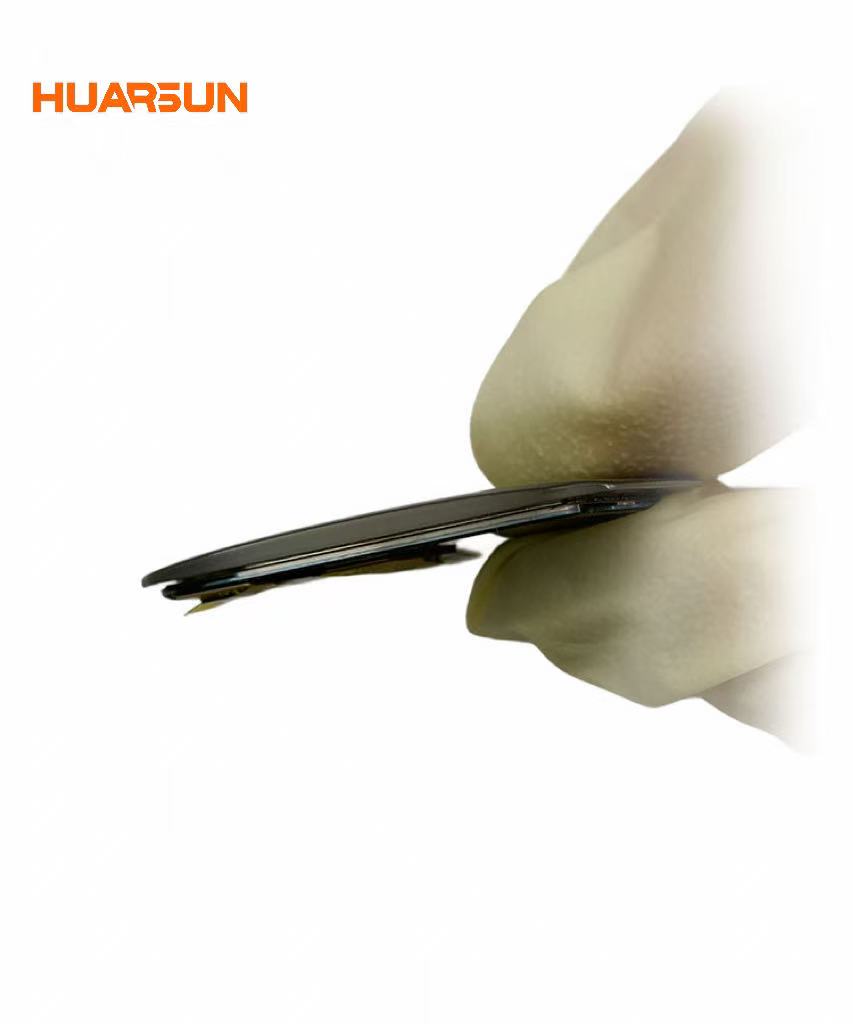

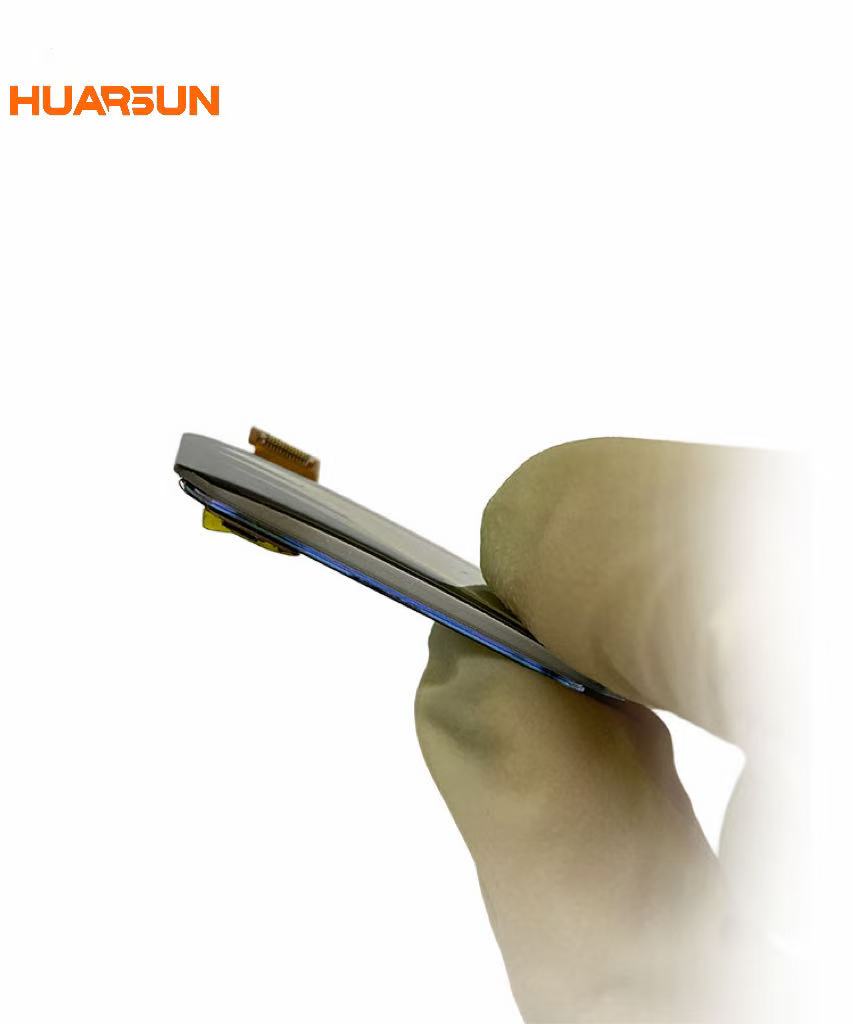

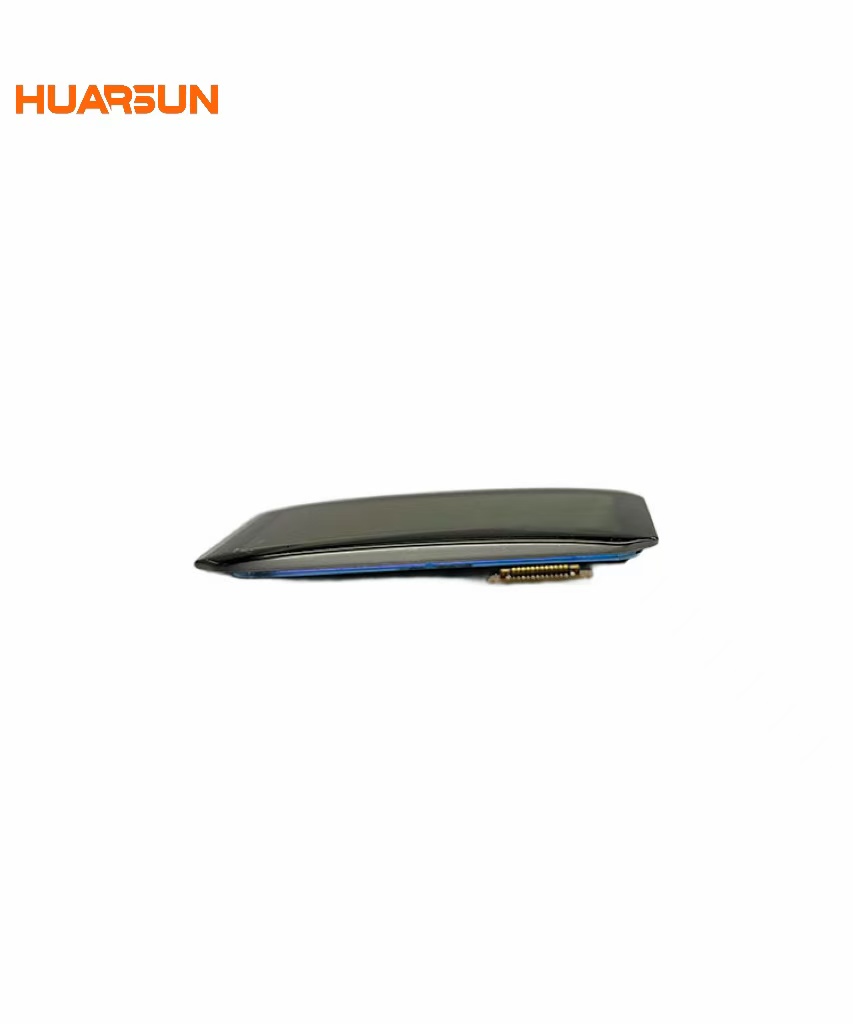

HUARSUN 1.47" LTPS AMOLED Display, 550cd/m² Brightness, 88° Viewing Angle for Wearables & IoT

Product Overview

Our 1.47" LTPS AMOLED Display Module offers superior performance with 550cd/m² brightness, making it ideal for a wide range of wearable devices, IoT applications, and consumer electronics. Whether you're creating smartwatches, fitness trackers, or portable gadgets, this display guarantees clear, vibrant visuals while consuming minimal power, ensuring long battery life for your devices.

Key Features

• High Brightness & Clarity: With 550cd/m² typical luminance and a minimum of 500cd/m², the display offers excellent visibility in both bright and dim conditions, perfect for use in a variety of environments.

• Wide Viewing Angles: Offering 88° viewing angles in all directions (left, right, up, down), it ensures consistent visual quality from multiple viewing positions, whether you’re looking at the screen from the front or at an angle.

• Low Power Consumption: This display is optimized for energy efficiency, making it an ideal choice for battery-operated devices. It extends device usage without compromising on performance or image quality.

• Vibrant Color Accuracy: Achieving X=0.305 ±0.02 and Y=0.315 ±0.02 color points, this AMOLED display delivers true-to-life colors with exceptional clarity and richness.

• Rugged & Reliable: Built to perform in varied environmental conditions, this module operates effectively in temperatures ranging from -20°C to 70°C, and is designed with ROHS & Halogen-free certification, ensuring compliance with environmental standards.

• Compact & Easy Integration: Featuring flatness of 0.25mm and a 0.3mm radius tolerance, it’s easy to integrate into compact devices, ensuring a perfect fit for small electronics.

Detailed Specifications

Display Size: 1.43" AMOLED

Resolution: 466 x 466 pixels

Brightness: 800 nits (typical), 880 nits (max)

Contrast Ratio: 10000:1 (min)

Color Gamut: 100% NTSC (typical)

Operating Voltage:

VDDIO / VCI: 3.3V (typical)

VABT: 3.7V (typical)

Driver IC: C05300AF-08

Power IC: BV6802W

Temperature Range:

Operating: -20°C to 70°C；Storage: -30°C to +80°C

Use Cases

• Wearables: Perfect for use in smartwatches, fitness trackers, and other wearable electronics, offering clear and crisp visuals in a compact size.

• IoT Devices: Ideal for smart home applications, health monitoring systems, and other IoT devices, offering both performance and energy efficiency.

• Consumer Electronics: Great for portable electronics and gadgets requiring a compact, high-resolution display with low power consumption.

• Outdoor and Harsh Environment Use: With its wide operating temperature range and high brightness, this display is reliable for use in both indoor and outdoor applications.

Our Products

We specialize in LCD displays, including MONO LCD modules, TFT modules, and AMOLED modules. As a leading high-tech enterprise, we are committed to independent research and development, manufacturing, and sales. Over the years, we have developed into one of the top suppliers of small and medium-sized display terminals.

For over 17 years, we have focused on providing customized TN/STN/FSTN/VA monochrome displays, as well as small to medium-sized TFT displays and OLED displays. Our commitment to innovation and quality has positioned us as a trusted partner in the field of display technology.

Product Application

​

Manufacturing Capacity

We currently operate two fully-equipped monochrome LCD production lines, along with a dozen fully automated COG production lines, and complete processing capabilities for COB and CTP full lamination. Our professional R&D team, well-established quality control system, and highly efficient execution and management team are the backbone of our operations, driving continuous improvement and innovation.

With a pro-innovation corporate culture, we are committed to exceeding our customers' expectations by consistently meeting both quantity and quality requirements.

Quality Assurance

MES Quality Process Flowchart

The Honor of Enterprise

Thanks to our commitment to innovation-driven development, HEM has consistently pushed the boundaries of the industry. We have earned prestigious titles and certifications, including ISO 9001 Quality Management Certification, ISO 14001 Environmental Management Certification, as well as recognition as the Director of the Shenzhen Smart Wearable Device Industry Association. Additionally, we are proud members of the National Medical Device Industry Association and are recognized as a National High-Tech Enterprise.

Location

Shenzhen Operation Center

Jiangxi Manufacturing Center

Looking ahead

In 2022, Huaersheng invested in a 106,667 square meter display industrial park, with a building area of 12,000 square meters. The park is planned to include:

• 2 panel production lines (370mm x 470mm)

• 6 full-automatic AMOLED production lines

• 30 full-automatic COG AMOLED production lines

FAQ

Q1: What is the power consumption of the 1.47" AMOLED display?
A1: The power consumption varies depending on the mode:

• Normal Mode: 381.303 mW

• Idle Mode: 31.828 mW

• Deep Standby Mode: 262.34 µW

Q2: What is the operating voltage of the display?
A2: The display operates with a 3.3V power supply for both VDDIO and VCI.

Q3: How bright is the 1.47" AMOLED display?
A3: The display has a typical brightness of 550 cd/m², with a minimum brightness of 500 cd/m², ensuring excellent visibility in various lighting conditions.

Q4: What is the temperature range for this display?
A4: The operating temperature range is -20°C to 70°C, while the storage temperature range is -30°C to +80°C.

Q5: Can this display be used in outdoor applications?
A5: Yes, the high brightness (550 cd/m²) and wide operating temperature range make it suitable for use in outdoor and industrial environments, ensuring clear visibility.

Q6: Is the display compatible with my wearable device?
A6: The 1.47" AMOLED display is perfect for wearables like smartwatches, fitness trackers, and other small electronics, offering a compact, high-quality display ideal for these devices.

Q7: How does the AMOLED display compare to traditional LCD?
A7: AMOLED displays offer deeper blacks, higher contrast, and more vibrant colors than traditional LCDs, making them ideal for devices that require high-quality visual performance and low power consumption.
