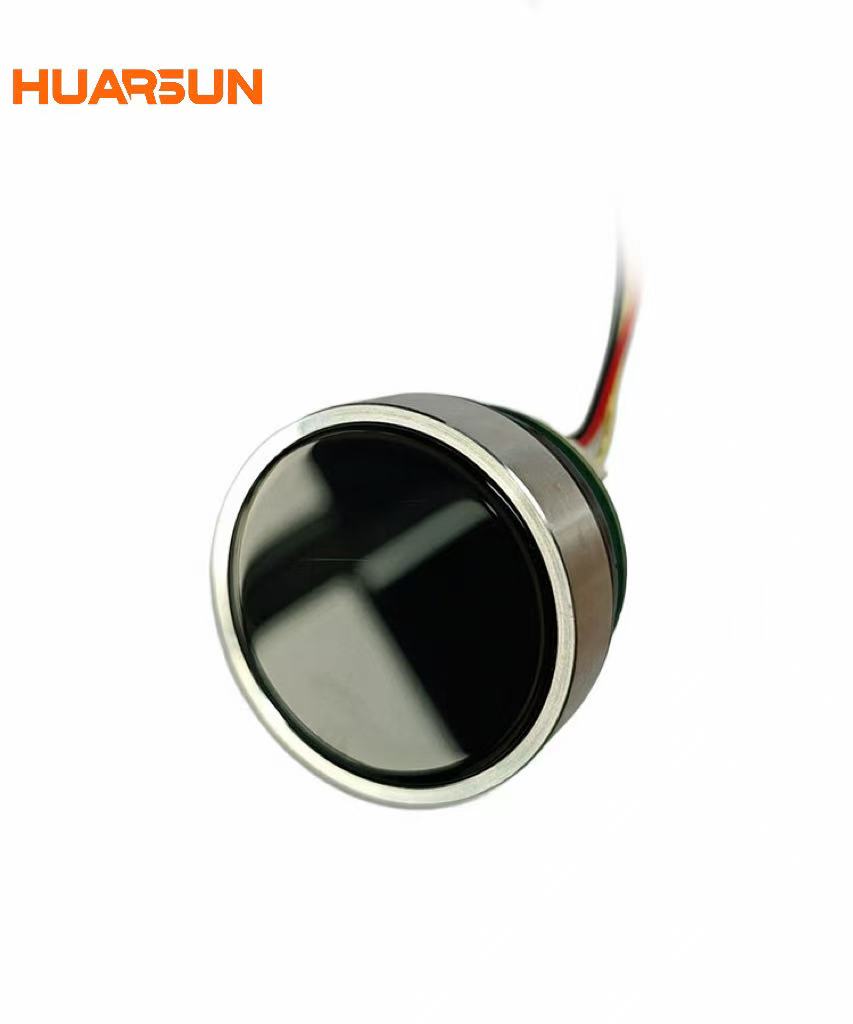

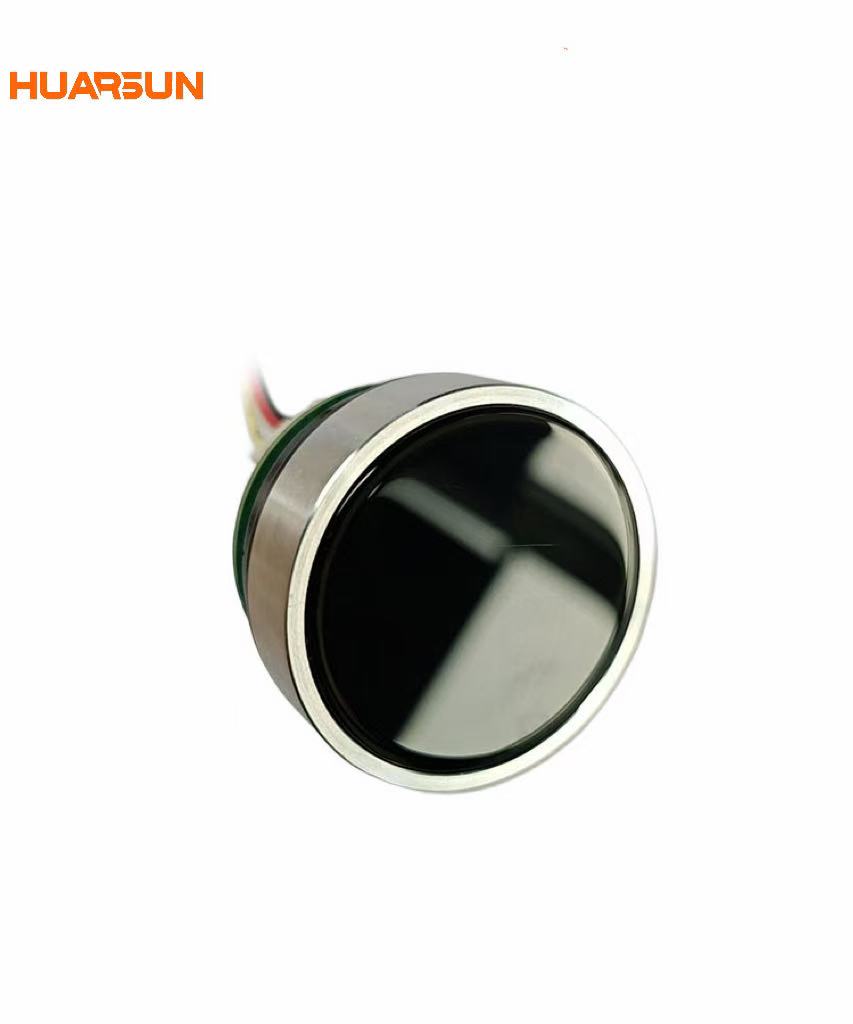

1.28-inch TFT LCD Display Module \| 262K Colors, Industrial Grade, Wide Viewing Angle for Smart Devices
Display Type	262K, a-SI TFT, Transmissive, Normal Black
Resolution	240(R.G.B) × 240 Dots
Diagonal Size	1.28 inch
Active Area (W×H)	32.40mm × 32.40mm
Viewing Direction	All O'Clock (Free Viewing Angle)
Interface	Serial
Working Temperature	-20°C ~ 70°C

About the Product

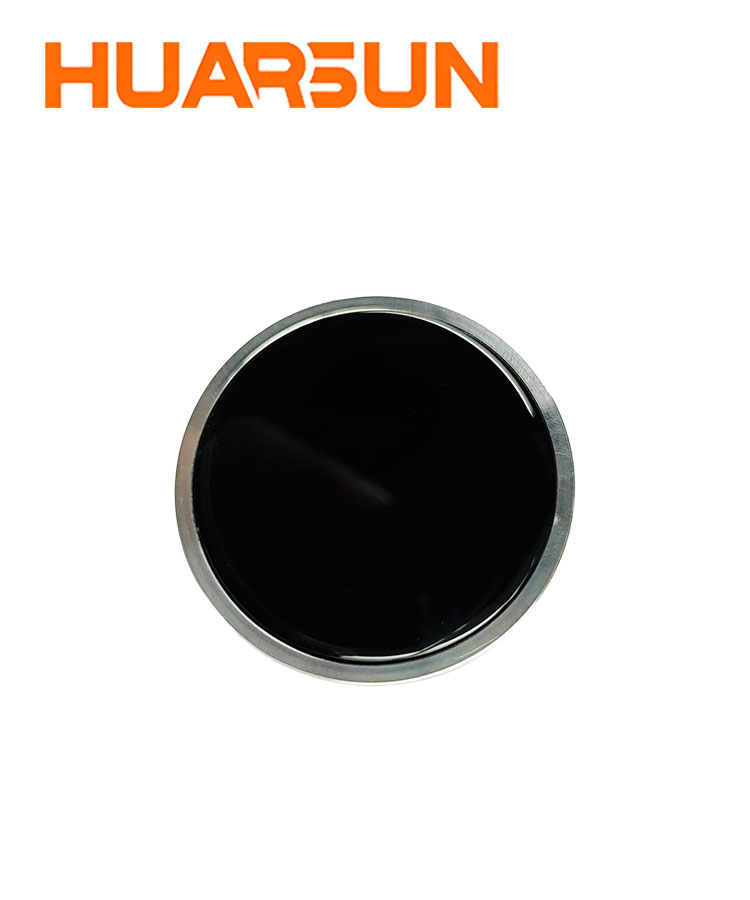

1.28-inch TFT LCD Display Module

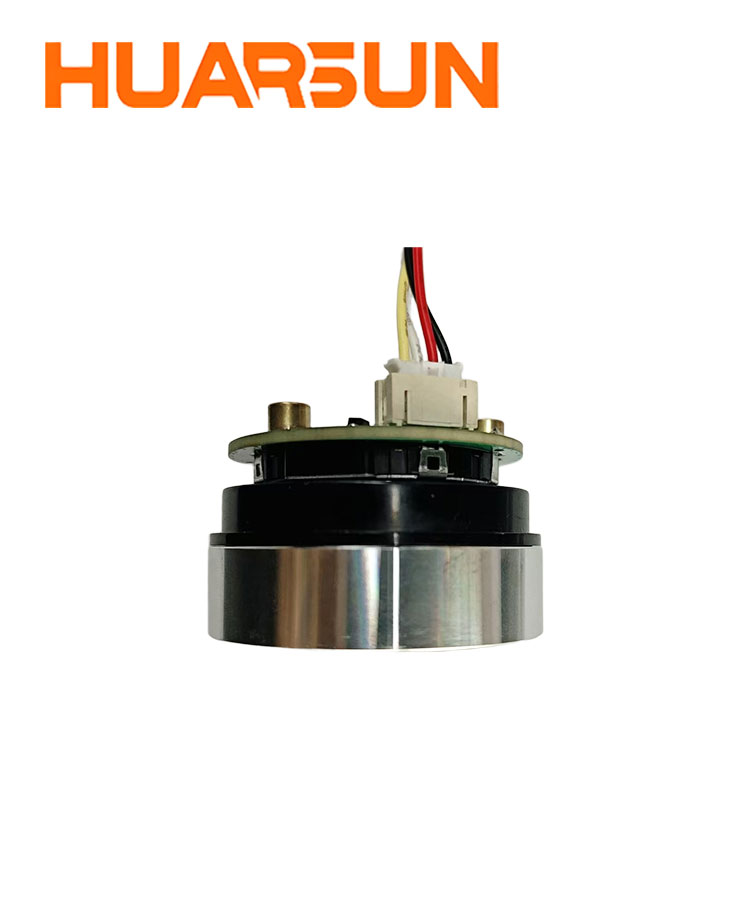

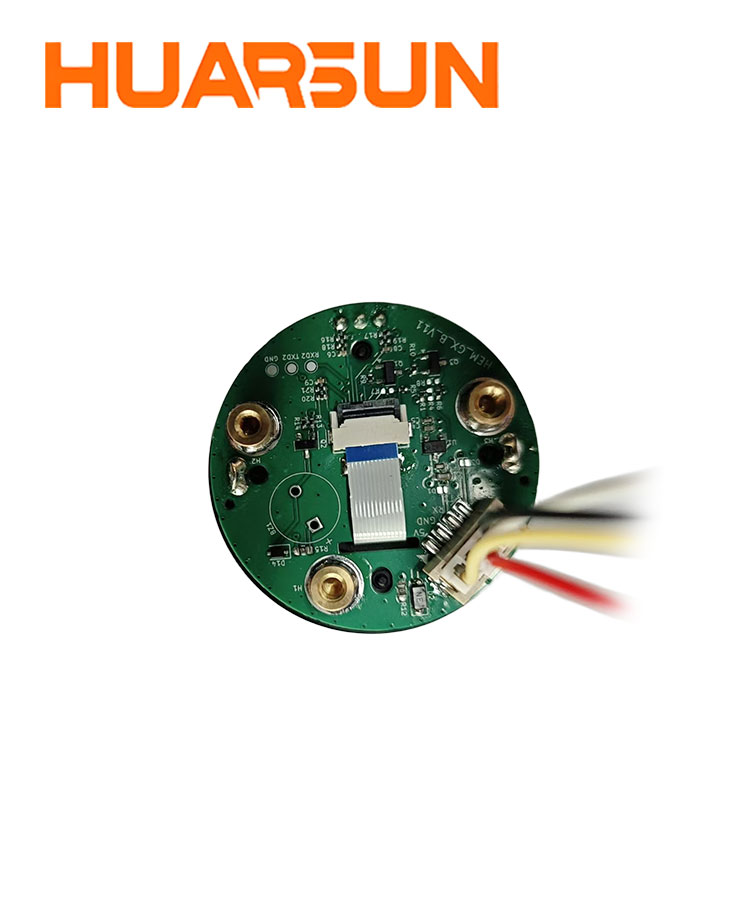

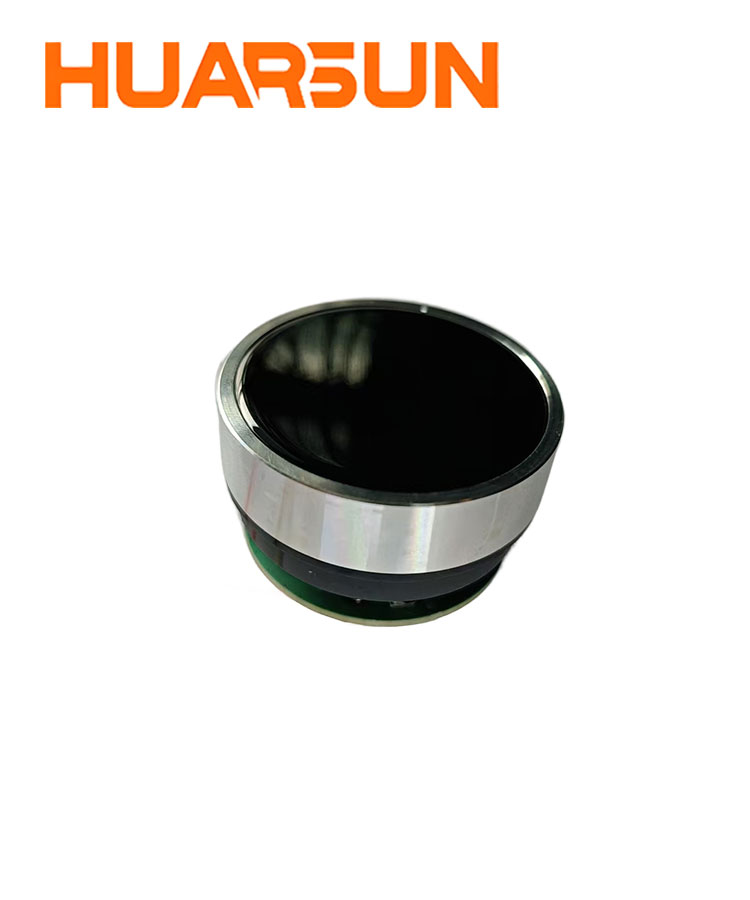

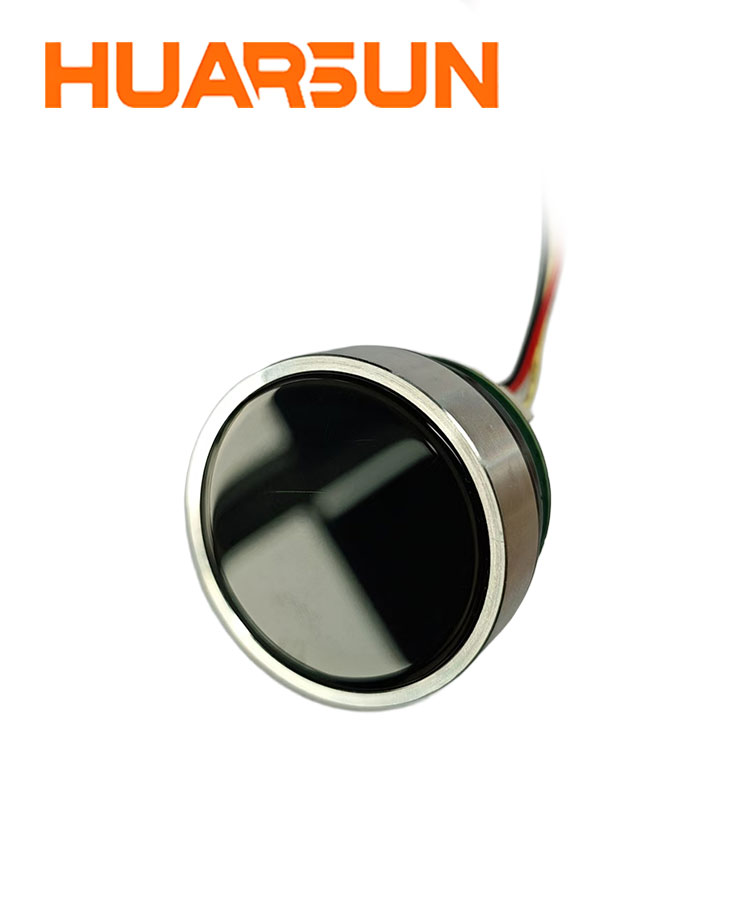

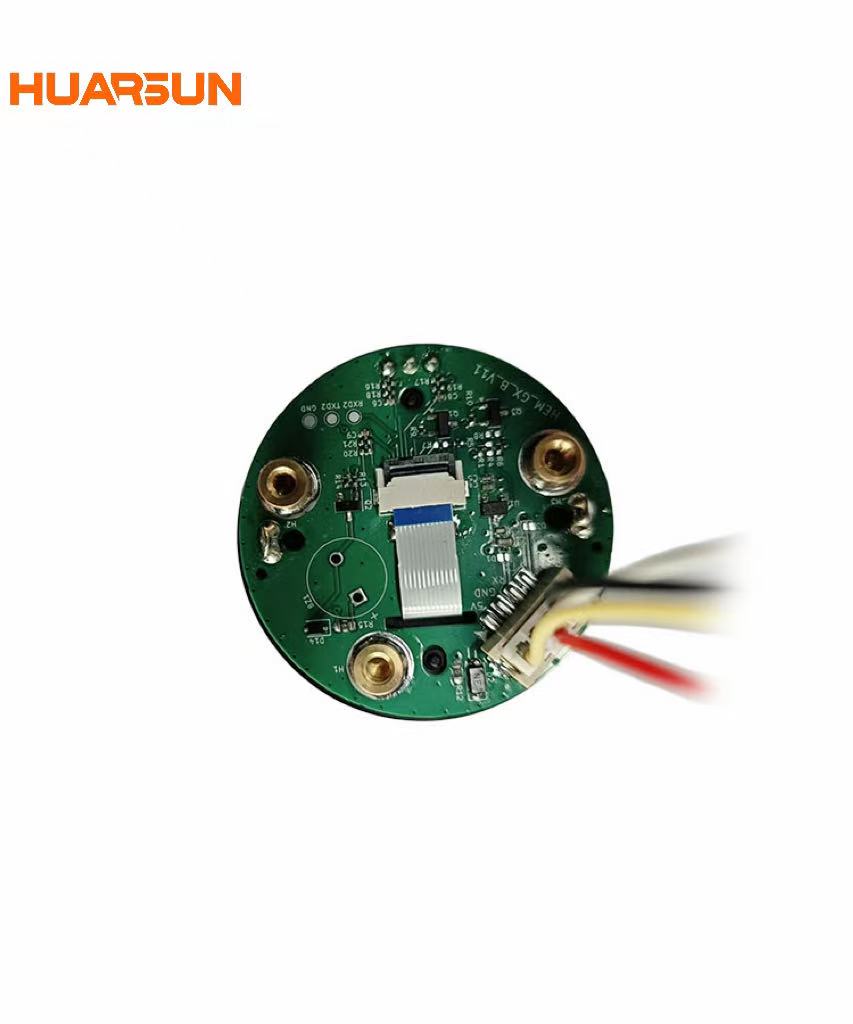

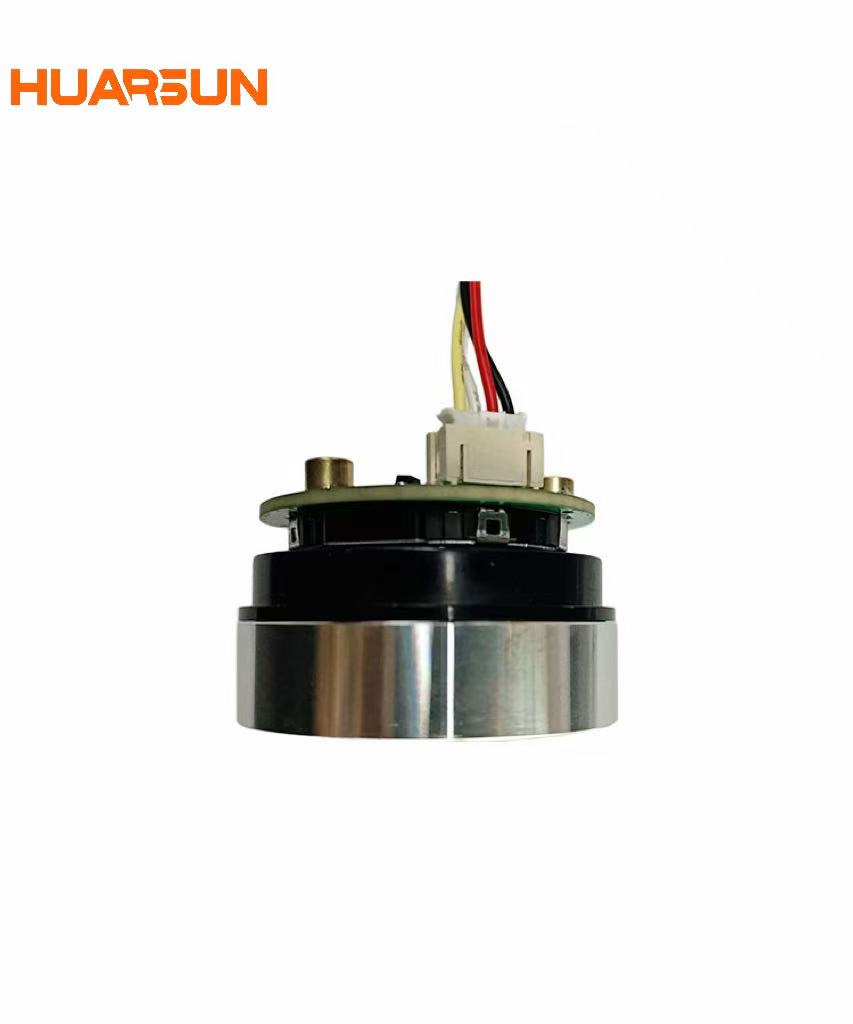

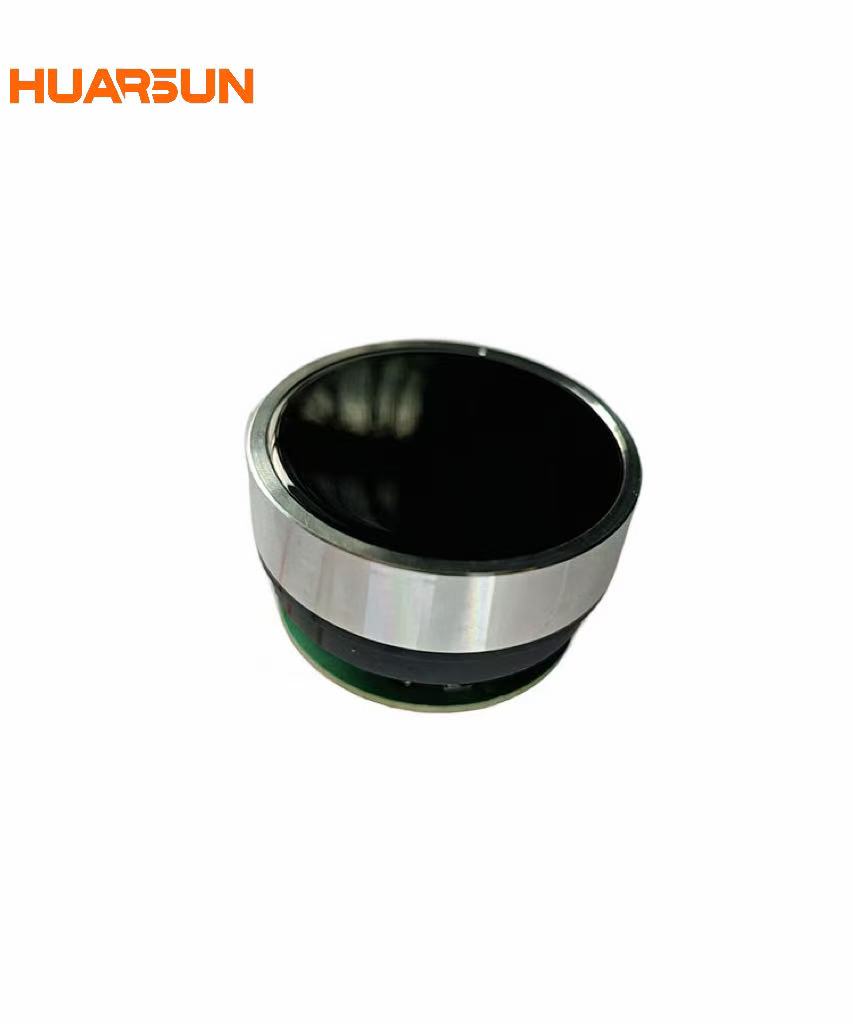

Engineered for smart devices and industrial applications, this 1.28-inch TFT LCD display delivers 240x240 resolution, 262K vibrant colors, and IPS technology for full-angle visibility. Featuring a rotary encoder shell and based on the CCM4101S chip, it ensures stable 200MHz operation and exceptional visual performance in compact devices.

Use Case Scenarios

This display is ideal for the following applications:

Smart Home Controls: Thermostats, security panels, smart locks
IoT Devices: Embedded systems, sensor displays, wearable tech
Industrial Equipment: Control knobs, user panels, handheld terminals
Consumer Electronics: Smartwatches, rotary dials, digital dashboards
Its circular design with encoder shell makes it perfect for interactive user interfaces in space-constrained environments.

Our Products

We are specialized in LCD display, including mono LCD module,TFT module and AMOLED module, which is the high and new tech enterprises in the country with the independent research and development, manufacturation and sales. It has developed as the excellent one of the medium and small-size field display terminal suppliers.

We have been focused on customized TN/STN/FSTN/VA monochorome displays,as well as small to medium sized TFT displays and oled displays for about 17 years.

Product Application

The application of monochrome products：industrial control, home intelligent control,onboard instrument,official screen, mobile payment etc. personalizing custom in product family design according to custom's needs.

TFT Amoled

The application of AMOLED products：intelligent wearing, children's education

The application of TFT products：intelligent wearing, children's education, smart home, industrial control medical treatment, mobile payment etc.

TFT Amoled

Manufacturing Capacity

We now have two complete monochrome LCD production lines, a dozen of fully automatic COG production line and the full processing capacity for COB and CTP full lamination.With a professional R&D team, Well-developed quality control system, highly effective execution and management team and a pro-innovation corporate culture. We vow to satisfy our customers by meeting the quantity and quality requirements.

LCD：2production lines 、370mm*470mm panel、production capacity 60K/Mark/M

COG: 13 all-automatic production lines、0.5'' -8”modules、production capacity 5KK/M

COF：2 all-automatic production lines、 0.7”-7”modules、production capacity 500K/M

Team：800people in total, 60technicians,80 people in quality department.

Quality Assurance

Reliability Test Equipment: 17

Quality Inspection Equipment: 230

Quality Assurance System: MES system, ERP system

MES Quality Process Flowchart

quailty process lcd module

A MES (Manufacturing Execution System) quality process flowchart is a visual representation of the steps involved in the manufacturing process, from raw materials to finished products, with a focus on quality control.Overall, the MES quality process flowchart helps to ensure that the manufacturing process is carried out efficiently and effectively, with a focus on quality control and customer satisfaction.

The Honor of Enterprise

Intelligent Display Terminal Supplier

Thanks to our approach to seek innovation driven development, HEM has been pushing the frontier of the industry. We have earned honourary titles and certificates, such as ISO ISO9001 quality management certification, ISO14001 environment management certification, Director of Shenzhen Smart Wearable Device Industry Association, Member of National Medical Device Industry Association and National Hi-tech Company.

Location

Shenzhen Operation Center

Jiangxi Manufacturing Center

Jiangxi HEM Technology Co.Ltd.was incorporated in 2016 and finds its headquarters in Wanzai of Jiangxi Province.

Looking ahead

Huaersheng invested 106,667 square meters display industrial park in 2022,which has the floorage of 12000 square matres. Park planning: 2 panel production lines of 370mm*470mm, 6full-automatic AMOLED production lines,30 COG full-automatic AMOLED production lines.

FAQ

1. What types of displays do you manufacture?

We specialize in a comprehensive range of display modules, including:

TFT LCD Displays (0.72–8 inch, IPS/ TN / Transmissive / Reflective)
Monochrome LCD Modules (STN, FSTN, DFSTN in COB & COG type)
Capacitive & Resistive Touch Screens
Custom LCD Solutions (OEM/ODM supported)
Display Assemblies with Shells, Cables, or Encoders

Whether you're designing a smart home device, medical equipment, or handheld terminal, we have reliable display solutions to match.

2. Can I get a custom LCD display for my project?

Yes. We support customization services including:

Shape/size modification (e.g., round, square, bar type)
Interface adjustment (SPI, I2C, RGB, MCU, etc.)
Brightness, FPC, driver IC, and cover lens customization
Send us your specs, drawing or application scenario—we’ll tailor a solution.

3. What’s the minimum order quantity (MOQ)? Do you accept samples?

We welcome:

Sample orders (as few as 1 piece) for testing and evaluation
Small batch orders for pilot production (MOQ applies, typically 100–500 pcs depending on the product)

4. What are the lead times for delivery?

Samples: 3–5 working days (if in stock)
Customized samples: 2–3 weeks
Mass production: Around 4–5 weeks after sample approval and deposit

We offer stable lead times and support expedited orders when necessary.

5. What industries or applications use your 1.28-inch round TFT display?

Our 1.28-inch round TFT LCD is widely used in:

Smart Home Devices (thermostats, control panels)
Health & Fitness Devices (smart wearables, heart monitors)
Industrial Instruments (rotary encoders, control knobs)
Digital Meters and Portable Terminals

Its encoder housing, IPS full-view angle, and compact form make it ideal for space-constrained applications needing rotary interaction.

6. What is the standard order process?

Here’s our typical workflow for custom projects:

Inquiry & Requirement Analysis
Solution & Quotation Provided
Tooling & Sample Payment (100%)
Drawing within 3 working days
Customer Approval
Sample Production (2–3 weeks)
Sample Testing & Adjustment
30% Deposit for Mass Production
Final Production & Delivery

We ensure full communication and support throughout.

7. Do your displays comply with environmental or quality standards?

Yes. All our displays comply with RoHS, and we offer industrial-grade reliability (wide temperature, high humidity tolerance).
We also support ISO and REACH-compliant production upon request.

✅ Pro Tips

Want to integrate this display into your IoT device or smart controller? Contact our engineers for interface guidance.
Looking for long-term stable supply? We offer lifecycle management and replacement plans.
