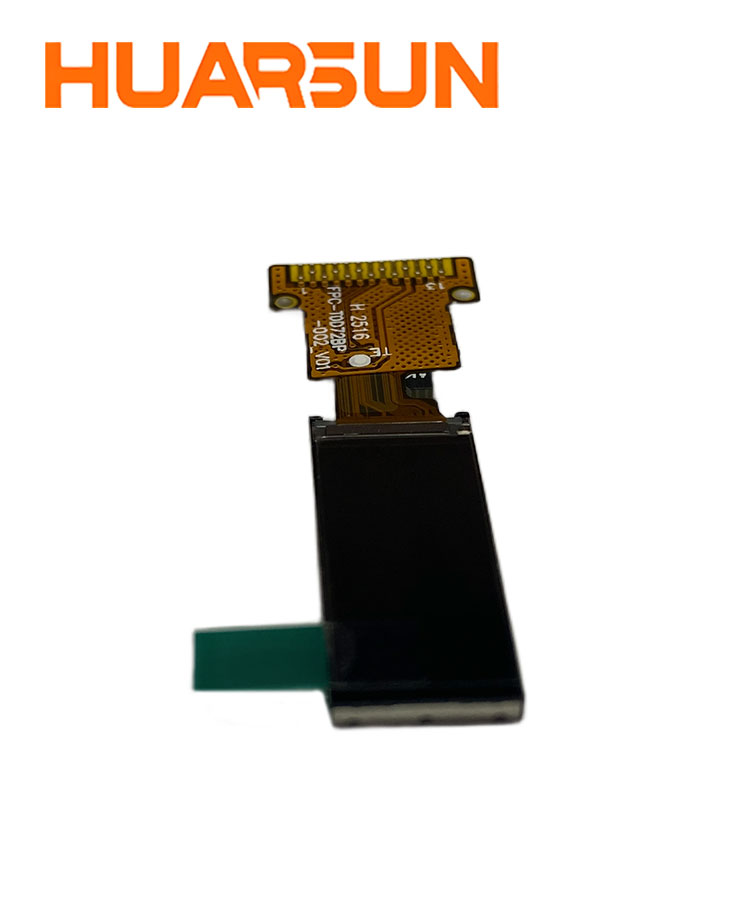

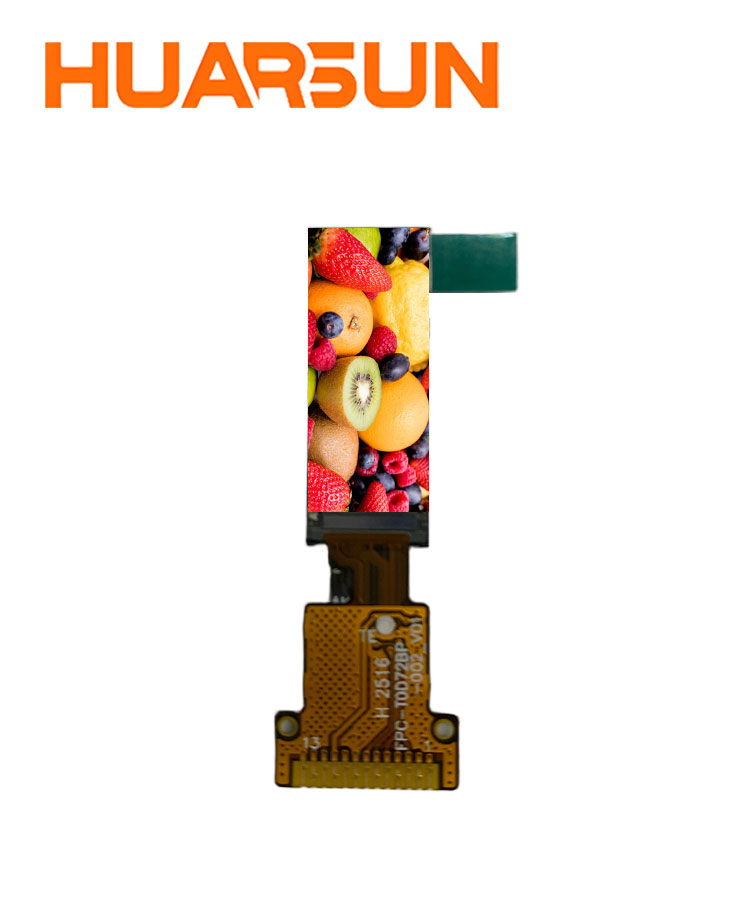

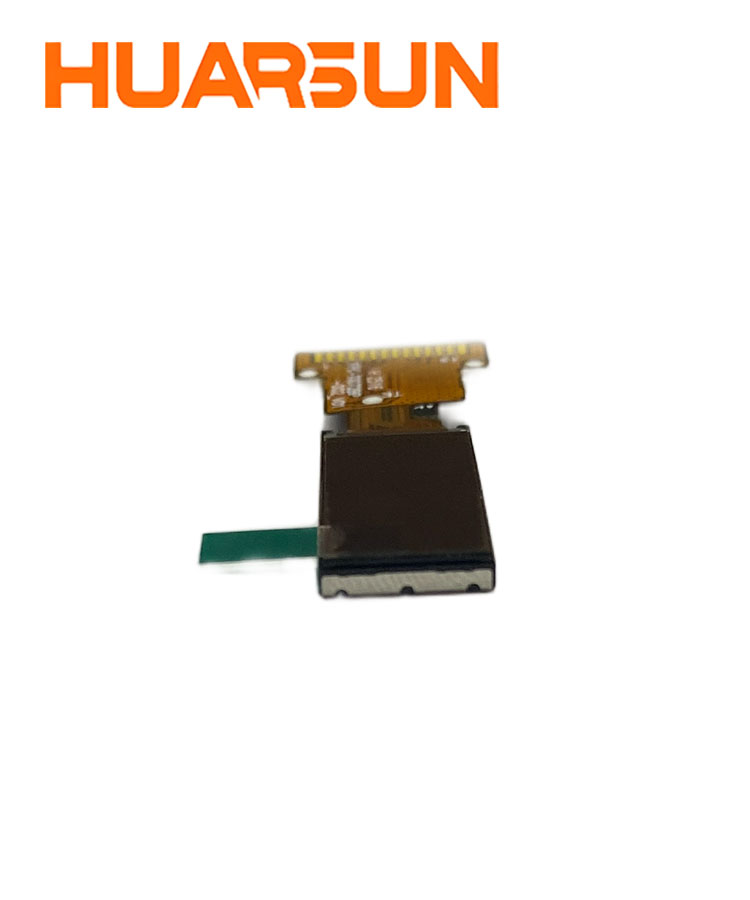

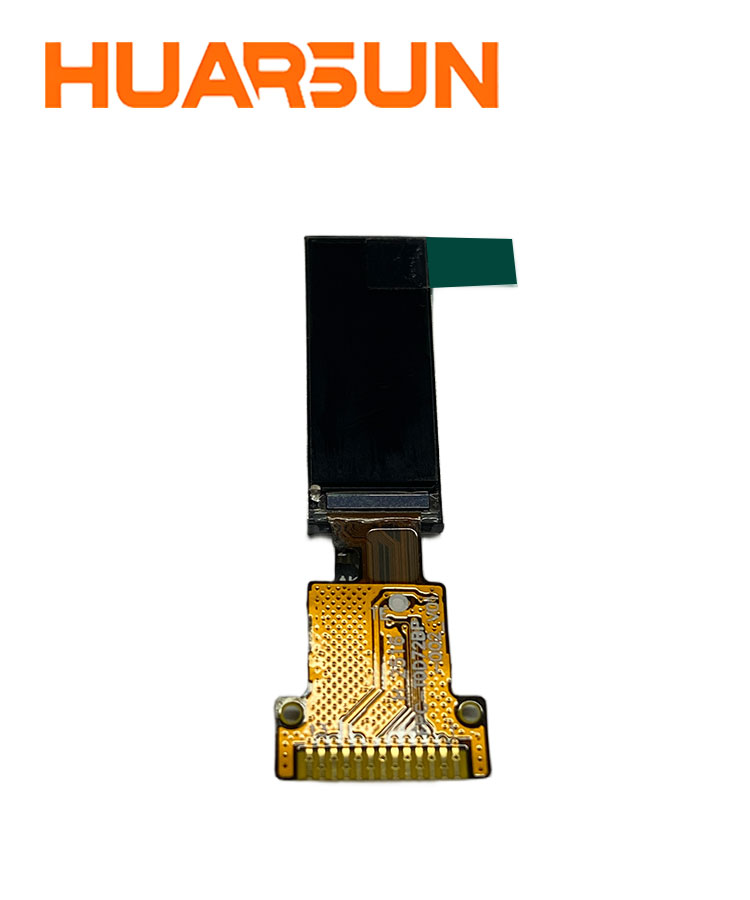

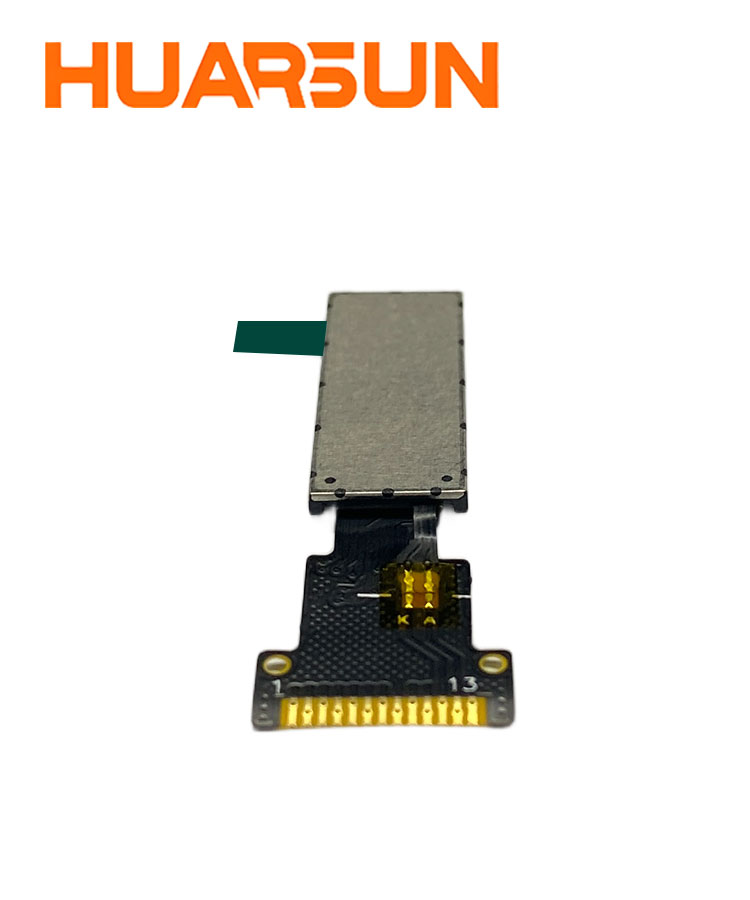

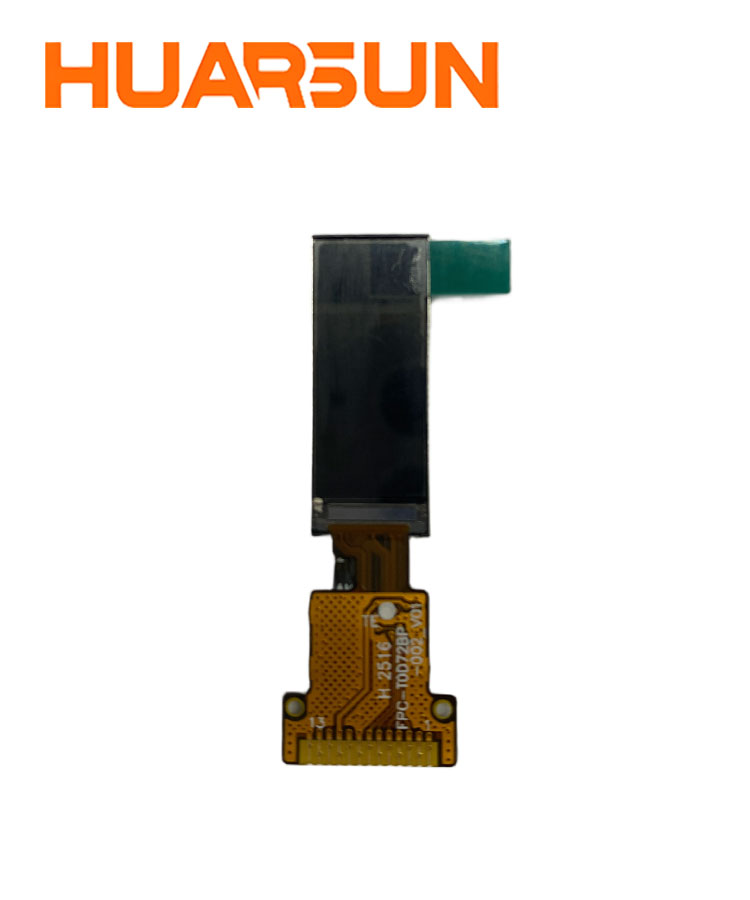

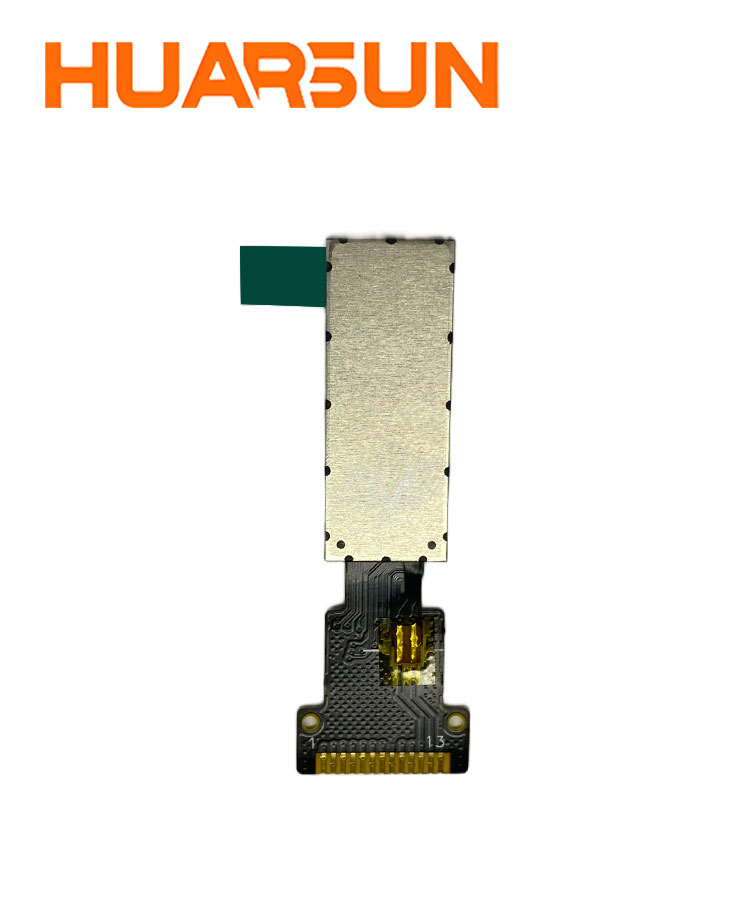

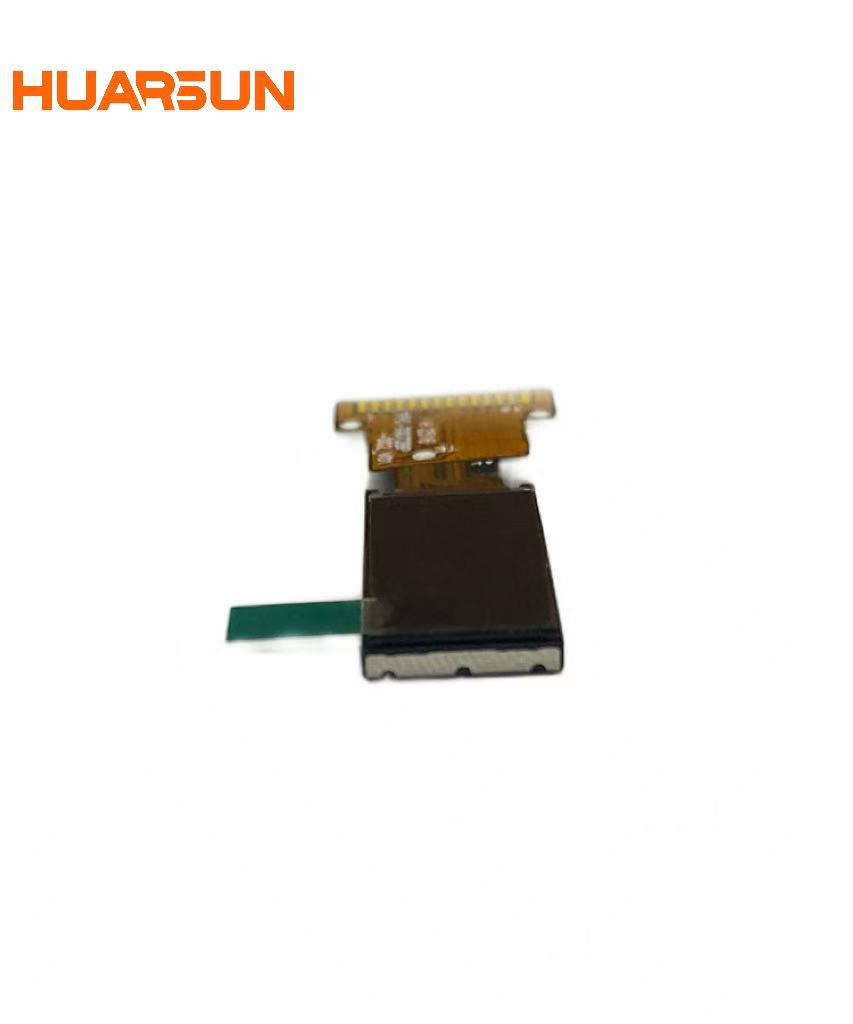

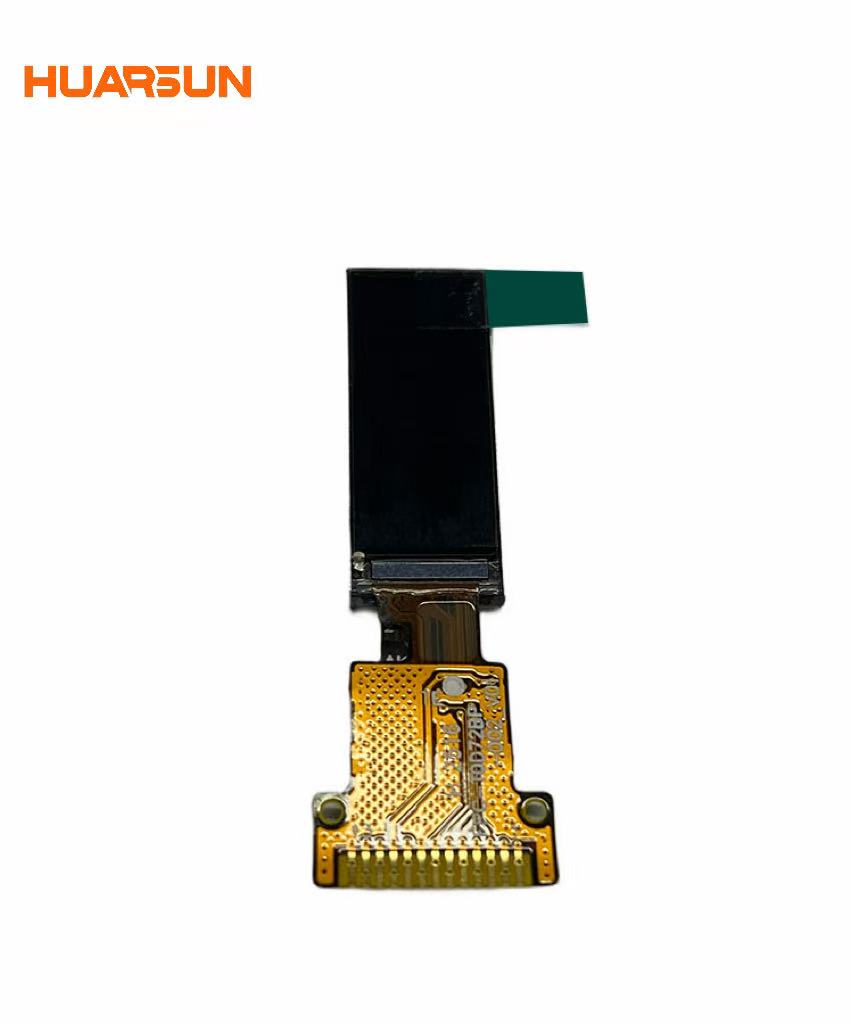

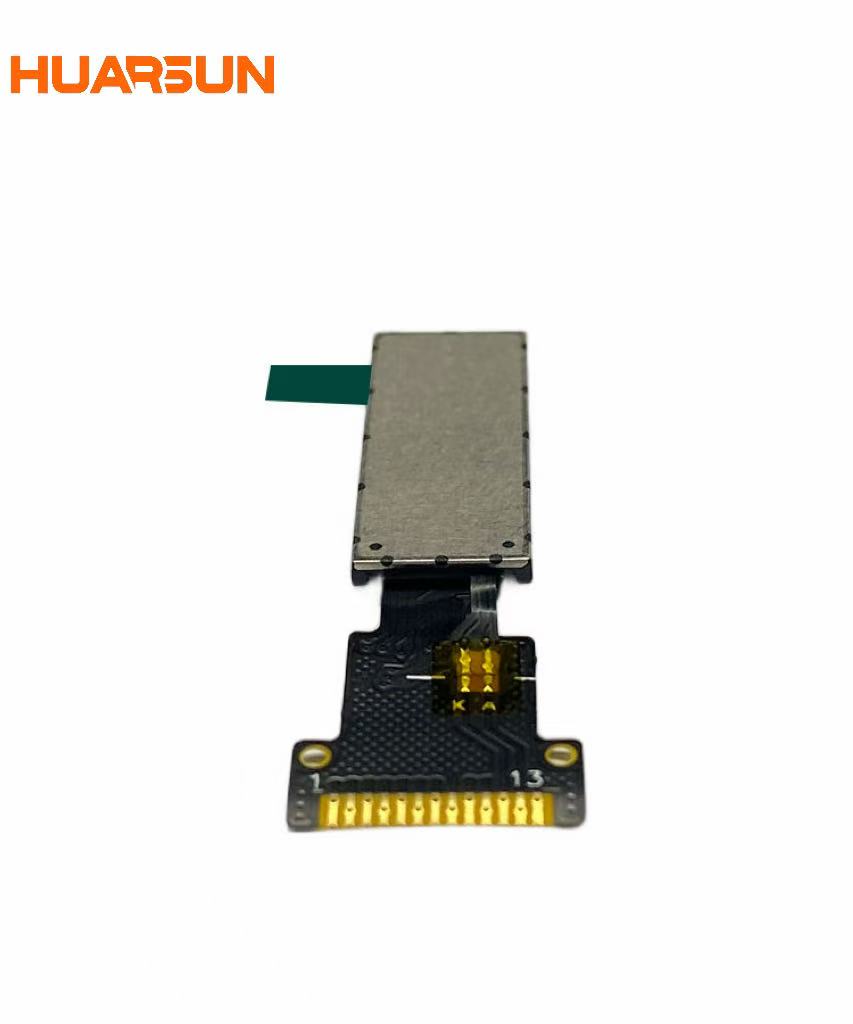

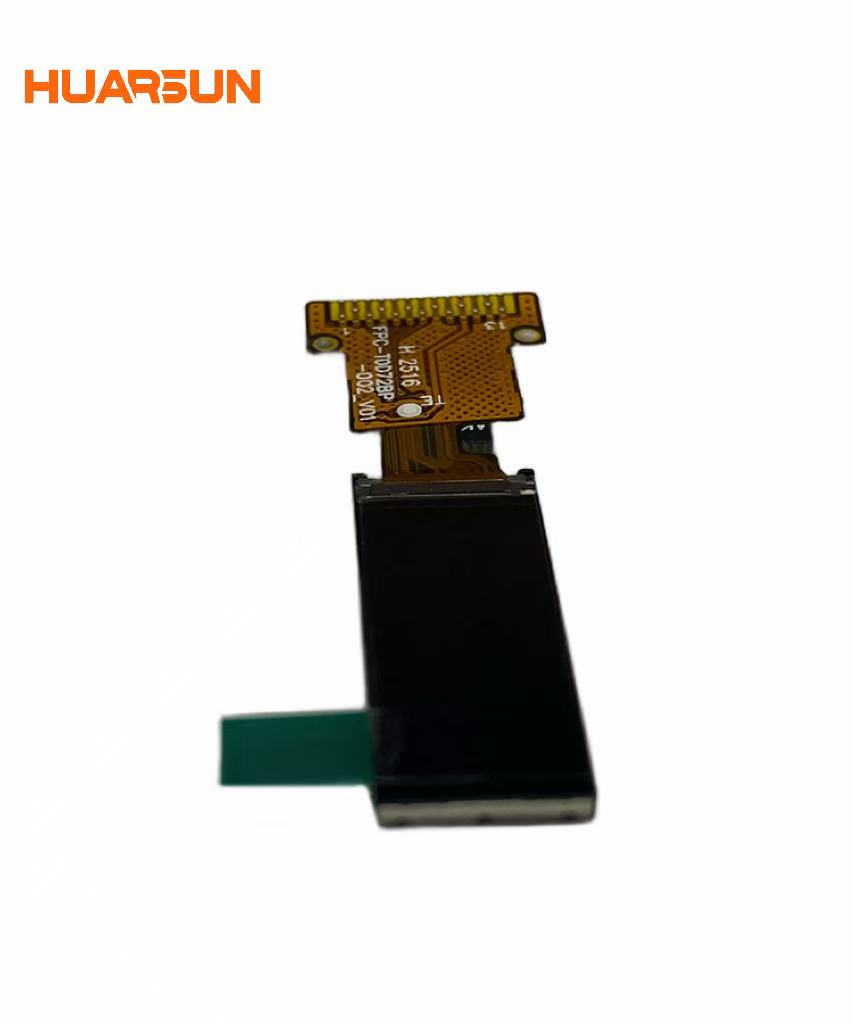

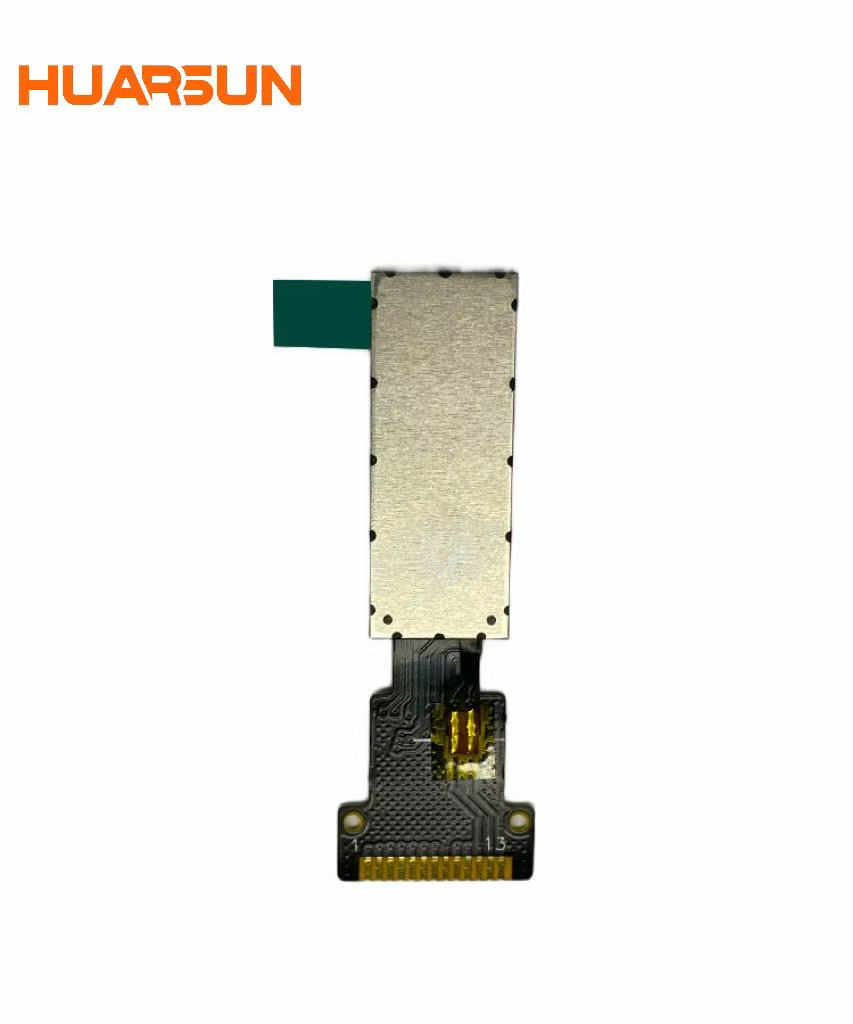

Product Description – 0.72 Inch TFT LCD Display Module

The 0.72-inch TFT LCD module features a 60x160 resolution and is designed for compact applications that demand clarity, stability, and energy efficiency. Equipped with the GC9D01N driver IC and SPI-4 interface, it delivers excellent compatibility and smooth communication with various embedded systems.

This module supports all-angle viewing directions, ensuring optimal readability from any perspective. With a typical brightness of 450 cd/m², it provides vibrant visuals even in low-light conditions. The compact size, combined with RoHS2.0 + HF compliance, makes it an ideal solution for wearable devices, medical monitors, smart controllers, and more.

Key Features:

• Display Type: TFT Transmissive, Normal Black

• Resolution: 60(R.G.B) × 160 dots

• Size: 0.72 inch diagonal

• Viewing Direction: All angle (free)

• Active Area: 6.41 × 17.09 mm

• Module Size: 8.52 × 21.70 × 1.87 mm

• Pixel Size: 0.1068 × 0.1068 mm

• Backlight: 1 white LED, 20mA

• Brightness: 380 cd/m² (Min), 450 cd/m² (Typ)

• Driver IC: GC9D01N

• Interface: SPI-4 wire serial interface

• Operating Temp: -20℃ to +70℃

• Storage Temp: -30℃ to +80℃

• Certifications: RoHS2.0 / RoHS + HF Compliant

Application Scenarios

This mini TFT LCD display is ideal for compact electronic systems and embedded interfaces in various fields:

• Wearable medical devices (heart rate monitors, oximeters)

• Smartwatches and fitness bands

• Portable health & diagnostic tools

• Smart IoT sensors and controllers

• Handheld instruments & meters

• Home automation control panels

• Industrial control interfaces

Our Products

We are a leading display manufacturer specializing in custom LCD display solutions, including monochrome LCD modules, TFT display modules, and AMOLED display modules. As a national high-tech enterprise, we integrate independent R&D, precision manufacturing, and global sales to deliver high-performance, small-size display modules for a wide range of applications.

With over 17 years of industry expertise, we focus on customized TN, STN, FSTN, and VA monochrome displays, as well as small to medium-sized TFT LCD and OLED modules. Our displays are widely used in smart home systems, medical devices, industrial control panels, wearables, and IoT terminals—where compact form factor, stability, and clarity are critical.

We offer OEM/ODM display customization, covering interface selection, brightness tuning, FPC layout design, and touch panel integration, ensuring seamless compatibility with your end-product design. Whether you're building a smart controller, diagnostic device, or embedded control system, we provide flexible, cost-effective display solutions that meet your performance and reliability needs.

Application of Monochrome Display Products

Our monochrome LCD modules are trusted across a wide range of industries, including industrial control systems, smart home control panels, automotive instrument clusters, commercial terminals, and mobile payment devices.

We provide custom display solutions tailored to your specific project needs—offering full flexibility in product family design, interface type, display format, and mechanical dimensions. Whether you require TN, STN, FSTN, or VA technology, we deliver high-reliability, low-power, and cost-effective monochrome displays optimized for embedded system applications.

​

Application of TFT Display Products

Our TFT LCD modules are widely used in a diverse range of modern applications, including smart wearables, children’s educational devices, smart home systems, industrial control panels, medical equipment, and mobile payment terminals.

Featuring vivid color reproduction, wide viewing angles, and fast response times, our small to medium-sized TFT displays ensure clear and consistent visual performance in both indoor and outdoor settings. We offer custom display integration, supporting design flexibility for compact, high-efficiency, and user-friendly HMI interfaces across multiple industries.

Whether you're developing a smartwatch, a touch-enabled home appliance, or an industrial handheld device, our TFT screen modules deliver a perfect balance of visual excellence and robust performance.

Manufacturing Capacity

We operate two advanced monochrome LCD production lines, supported by 13 fully automatic COG production lines and complete COB bonding and CTP full lamination capabilities. These facilities ensure efficient, scalable, and flexible production for both standard and custom display module solutions.

Backed by a dedicated R&D team, a robust quality management system, and a highly efficient execution team, we are committed to delivering high-reliability display modules that meet global standards. Our pro-innovation corporate culture drives us to continuously enhance product performance and customer experience.

With full OEM/ODM customization support, stable lead times, and competitive pricing, we are your trusted display module manufacturing partner. Whether you require monochrome LCD modules, TFT displays, or AMOLED screens, we deliver the right solution for your small-to-medium size display needs.

Manufacturing Capacity Overview

We maintain a comprehensive manufacturing infrastructure to support both standard and customized display solutions:

• LCD Production: 2 dedicated lines handling 370mm × 470mm panels, with a monthly capacity of 60,000 units

• COG Modules: 13 fully automatic production lines, supporting 0.5”–8” display modules, with a capacity of 5 million units/month

• COF Modules: 5 automated lines for 0.5”–8” modules, delivering up to 1 million units/month

Our team includes 1,200+ employees, among which we have:

• 60 experienced technicians

• 80 professional QA specialists ensuring strict quality control

This robust production capability allows us to offer fast delivery, stable quality, and full OEM/ODM support for monochrome LCD, TFT display modules, and AMOLED screens.

Quality & Reliability Assurance

Reliability Test Equipment: 17 sets

Quality Inspection Equipment: 230+ sets

Quality Systems: Integrated MES system & ERP system for full-process traceability and control

MES Quality Process Flowchart

A MES (Manufacturing Execution System) quality process flowchart is a visualized roadmap that outlines each stage of the manufacturing process — from raw material intake, production planning, assembly, to final quality inspection and delivery.

This process ensures:

• Real-time production monitoring

• Traceability of materials and processes

• Integrated quality control at every step

• Continuous improvement through data feedback

By leveraging our MES system, we guarantee high manufacturing efficiency, product consistency, and customer satisfaction across industrial, medical, and smart device applications.

The Honor of Enterprise

Thanks to our innovation-driven development strategy, HEM continues to push the boundaries of the display technology industry. Over the years, we have been recognized with multiple honors and certifications, including:

• ISO9001 Quality Management System Certification

• ISO14001 Environmental Management System Certification

• Director Member of the Shenzhen Smart Wearable Device Industry Association

• Member of the National Medical Device Industry Association

• National High-Tech Enterprise Certification

These achievements reflect our ongoing commitment to technological excellence, sustainable manufacturing, and leadership in the small-to-medium size display module sector.

Location

Shenzhen Operation Center

Jiangxi Manufacturing Center

Jiangxi HEM Technology Co., Ltd. was established in 2016, with its headquarters located in Wanzai County, Jiangxi Province, China.

As a national high-tech enterprise, HEM specializes in the R&D, manufacturing, and sales of monochrome LCD modules, TFT LCD modules, and AMOLED displays, providing reliable and cost-effective small-to-medium size display solutions for global customers.

Looking ahead

In 2022, Huaersheng invested in a 106,667-square-meter Display Industrial Park, with a building area of 12,000 square meters. The park is designed to support large-scale and high-efficiency production, including:

• 2 LCD panel production lines (370mm × 470mm)

• 6 fully automated AMOLED production lines

• 30 fully automated COG AMOLED module production lines

This investment further strengthens Huaersheng’s manufacturing capabilities in small-to-medium size TFT, AMOLED, and monochrome display modules, ensuring high capacity, high precision, and stable delivery for global clients.

FAQ

Q1: Can this module be customized?
A: Yes, we offer custom solutions for interface type, FPC design, brightness, and even cover lens lamination according to your project needs.

Q2: Is this module suitable for outdoor use?
A: While the brightness is suitable for semi-outdoor or indirect sunlight, we can upgrade it with enhanced brightness and anti-reflective films for full outdoor readability.

Q3: What is the minimum order quantity (MOQ)?
A: For standard models, MOQ starts from 1K pcs. For custom designs, we support flexible prototyping with lower MOQs.

Q4: Does it support capacitive touch (CTP)?
A: This module does not include CTP by default, but we can offer full-lamination solutions with capacitive touch if required.

Q5: What is the lead time?
A: For in-stock modules, 5–7 days. For customized models, lead time is usually 4–5 weeks depending on your specification.
