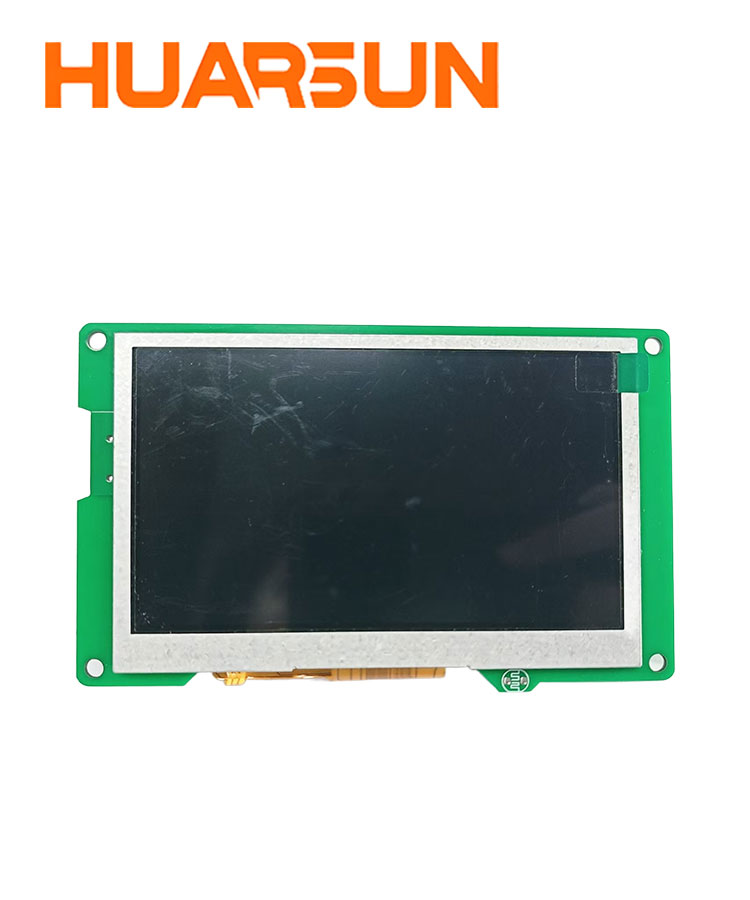

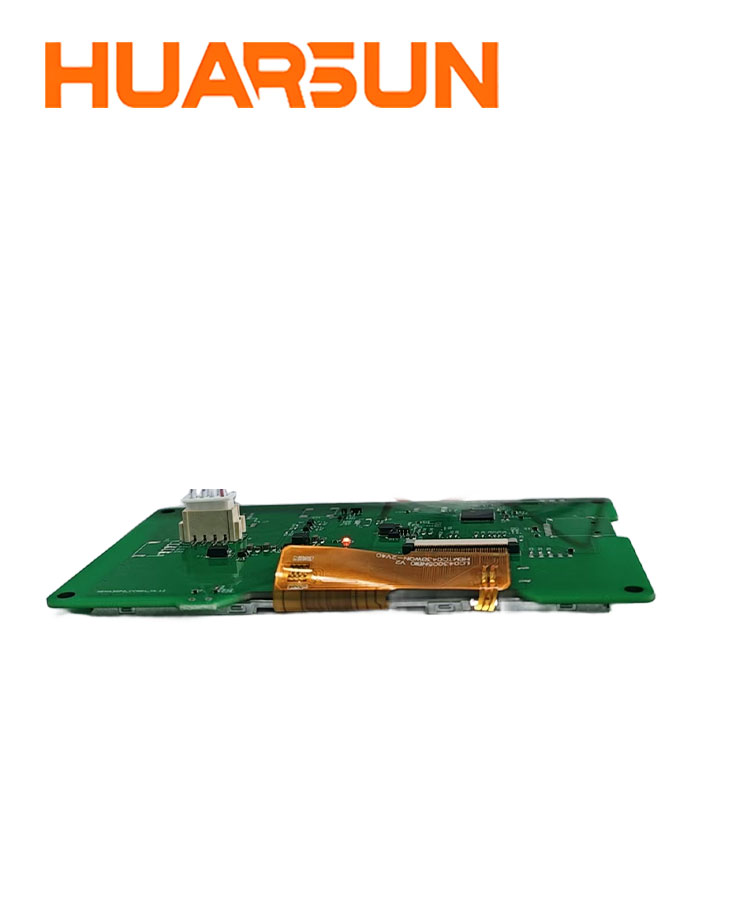

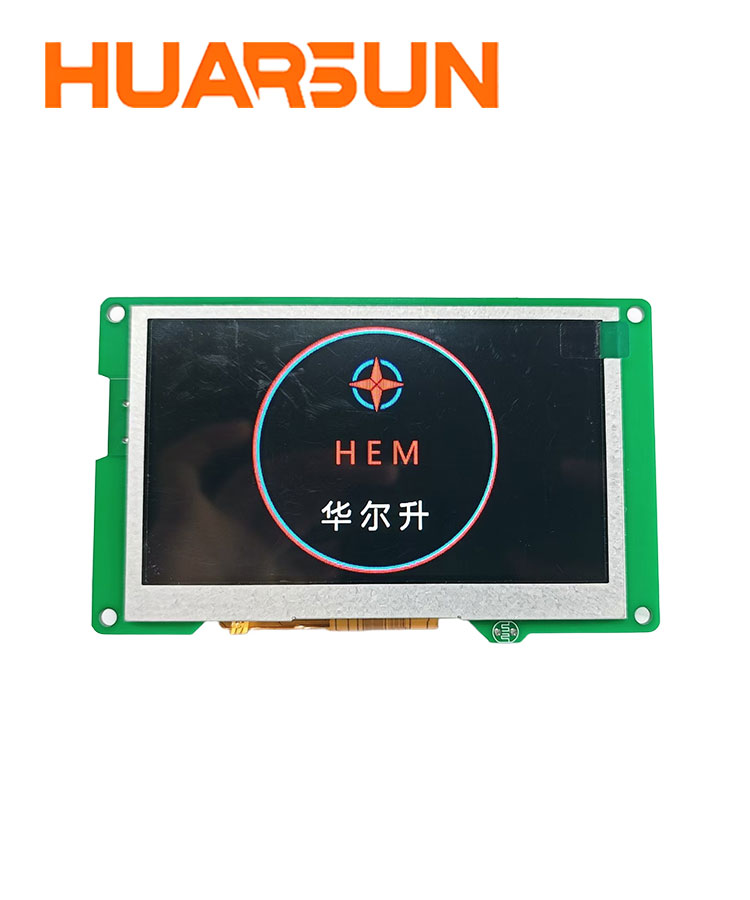

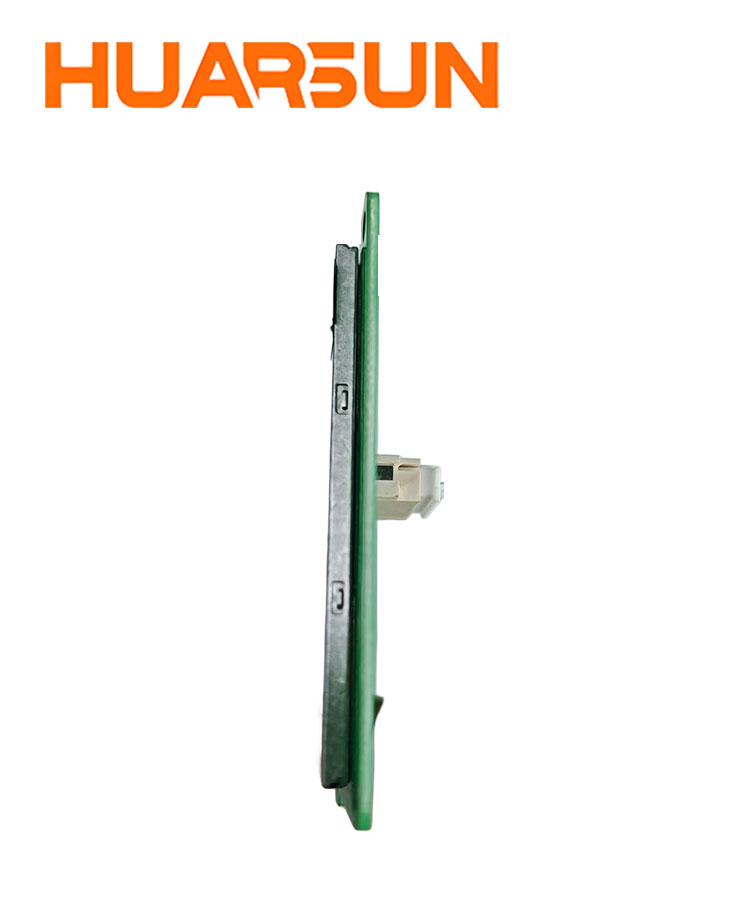

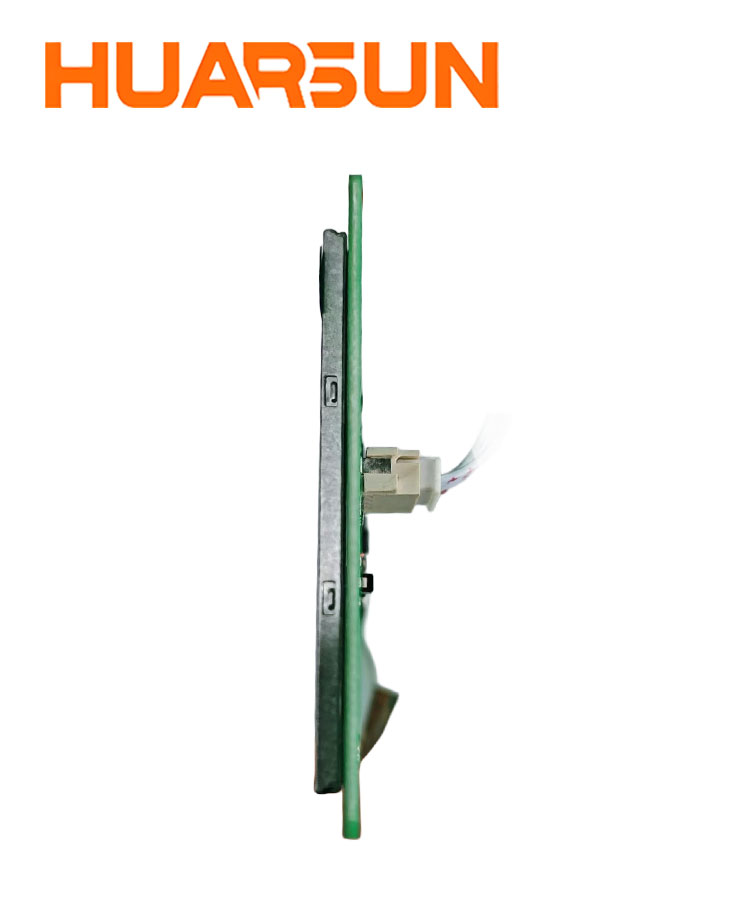

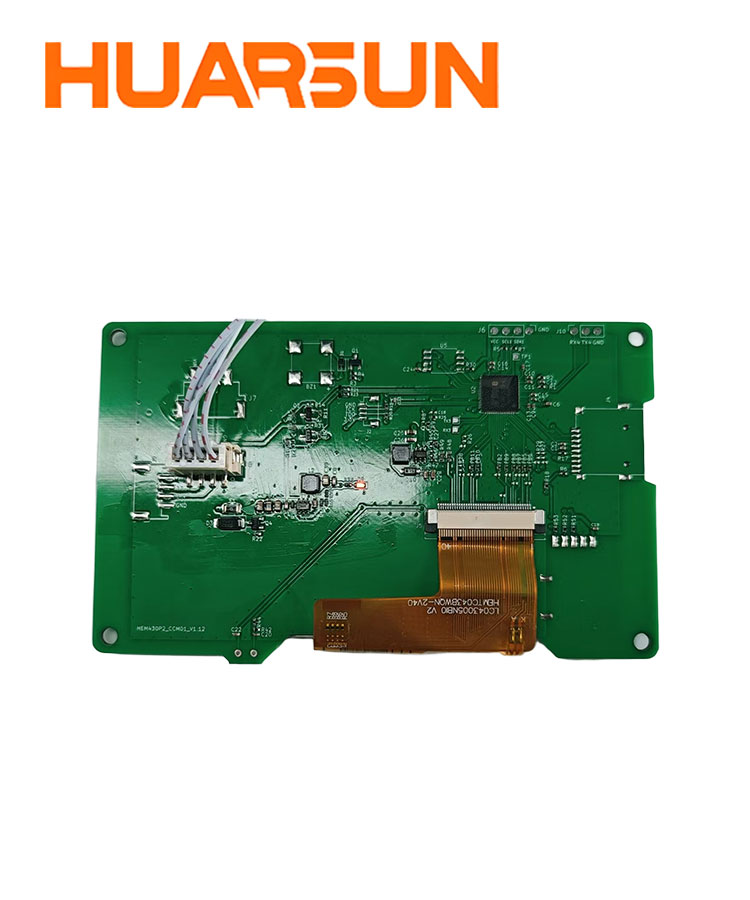

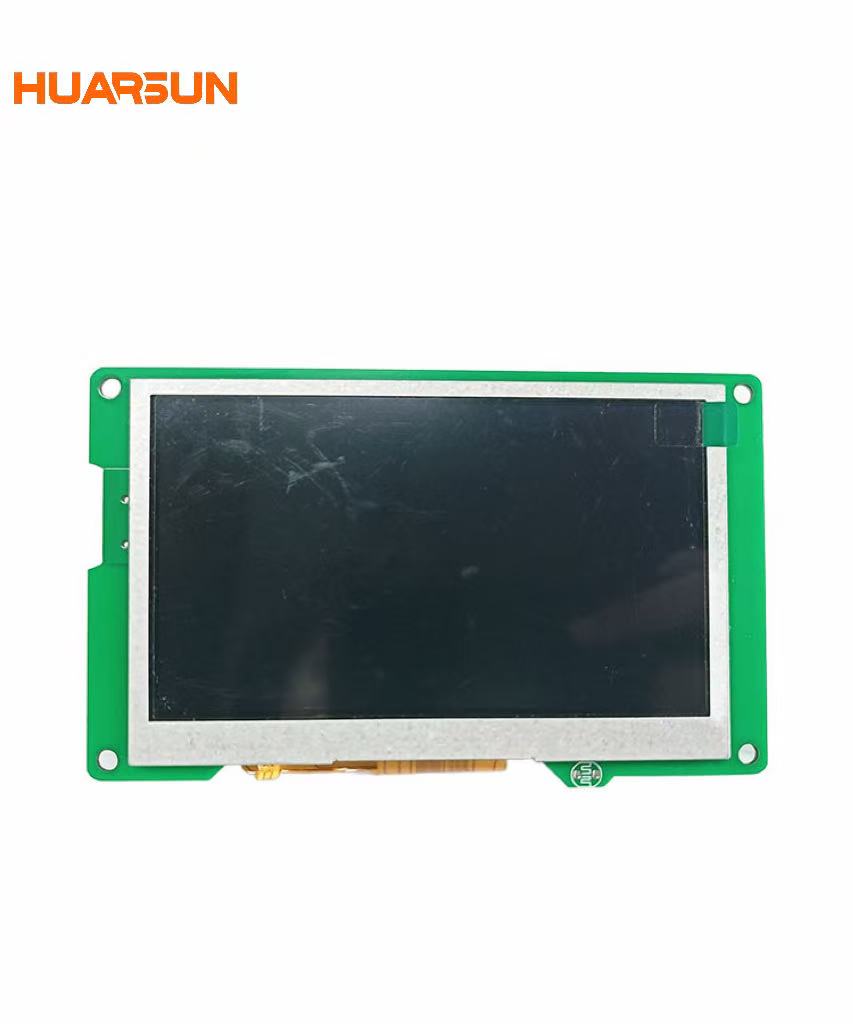

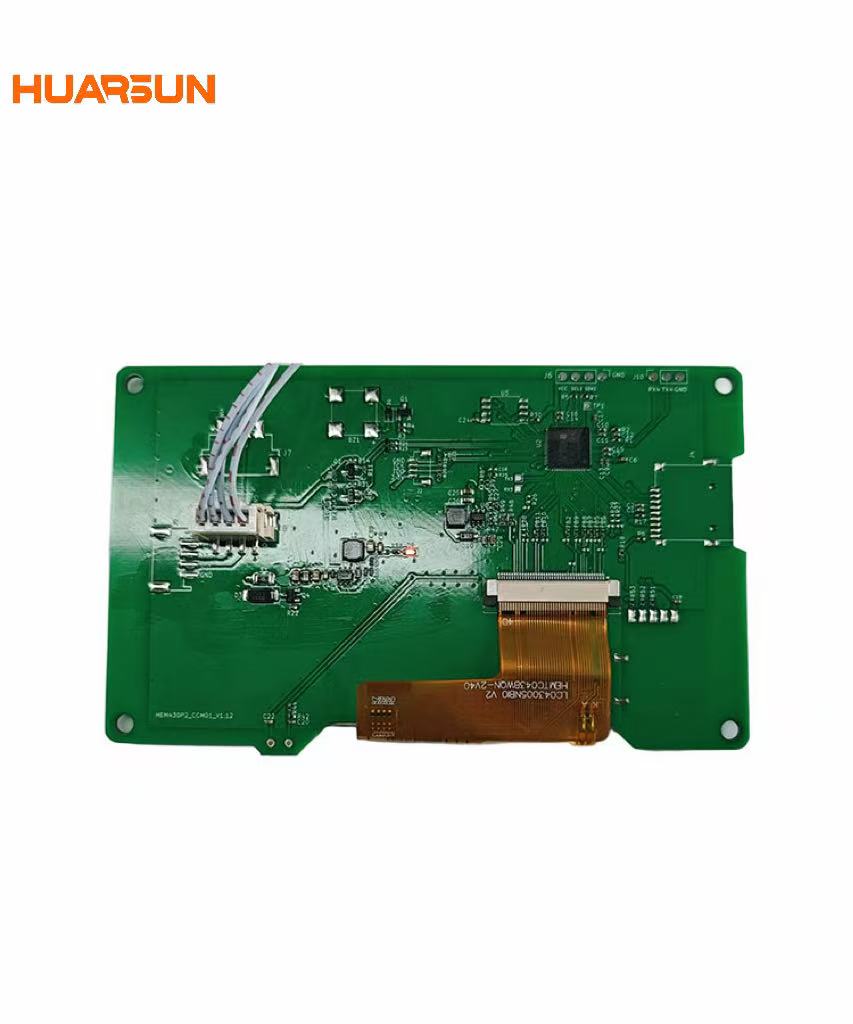

4.3 Inch TFT LCD Display Module with PCB

This 4.3 inch TFT LCD module integrates a high-resolution 480x272 RGB display with a robust PCB driver board, designed for embedded and industrial applications. Powered by the ST7283 driver IC, the module supports RGB24 interface for vivid and smooth graphics. With a typical brightness of 600cd/m², it performs well under various lighting conditions.

Key Specifications:

• Display Type: TFT, Transmissive, Normally Black

• Resolution: 480(R.G.B)×272 dots

• Viewing Angle: All O'Clock

• Driver IC: ST7283

• Interface: RGB24

• Brightness: 550~600 cd/m²

• Backlight: 10S white LED, 540~660mW

• Operating Temperature: -20°C ~ +70°C

• Storage Temperature: -30°C ~ +80°C

• RoHS 2.0 Compliant

This module ensures reliable performance in temperature-sensitive environments and meets industrial-grade standards.

Application Scenarios

The 4.3 inch RGB TFT display with driver board is widely used in:

• Smart home control panels (e.g., thermostats, lighting interfaces)

• Industrial automation systems (HMI displays, control interfaces)

• Medical equipment (display for diagnostics and monitoring)

• Consumer electronics (touchscreen controllers, audio systems)

• Vehicle-mounted displays (dashboard info and backup camera interfaces)

Thanks to its wide viewing angle, high brightness, and stable RGB interface, it suits various indoor and semi-outdoor applications.

Our Products

AMOLED Product Applications

AMOLED (Active Matrix Organic Light Emitting Diode) technology is widely adopted in various industries due to its exceptional color performance, high contrast ratio, and low power consumption. One of the main applications of AMOLED displays is in smart wearables, including smartwatch displays and other wearable devices. AMOLED screens provide excellent visibility even in direct sunlight, making them ideal for outdoor use. Additionally, AMOLED technology is energy-efficient, helping extend battery life in wearable devices.

In the field of children’s education tablets and other interactive learning devices, AMOLED displays offer vibrant and engaging visuals that enhance the learning experience for kids. By providing dynamic images, videos, and animations, AMOLED screens make educational content more interactive, keeping children’s attention and fostering an enjoyable learning environment. The compact size of AMOLED displays also makes them a great fit for portable educational devices, providing flexibility for learning on the go.

Application Scenarios:

• Smartwatch Displays

• Children’s Education Tablets

• HD Touchscreen

• Low Power Display Technology

• Interactive Learning Device Displays

• Portable Education Devices

• OLED Displays

• AMOLED Technology

• Eye

Product Application

Application of Monochrome Display Products
Our monochrome LCD modules are widely used across various sectors, including industrial control systems, smart home devices, automotive instrumentation, office equipment screens, and mobile payment terminals. These displays offer excellent readability, low power consumption, and high reliability, making them ideal for long-term and stable applications in demanding environments.

We provide custom LCD display solutions, allowing for personalized module design based on customer specifications. Whether it’s segment displays, dot matrix, or custom graphic LCDs, our team works closely with clients to develop tailored displays that integrate seamlessly into their product lines.

​

Manufacturing Capacity

We currently operate two fully equipped monochrome LCD production lines, along with a dozen fully automated COG production lines. Additionally, we have comprehensive capabilities for COB and CTP full lamination. Supported by a professional R&D team, a robust quality control system, and a highly efficient management and execution team, we are committed to innovation. Our corporate culture fosters a strong focus on pro-innovation, ensuring we consistently meet our customers' quantity and quality requirements.

Quality Assurance

MES Quality Process Flowchart

The Honor of Enterprise

Thanks to our innovation-driven development approach, HEM has consistently pushed the boundaries of the industry. We have earned prestigious honors and certifications, including ISO 9001 Quality Management Certification, ISO 14001 Environmental Management Certification, and have been recognized as a Director of the Shenzhen Smart Wearable Device Industry Association. Additionally, we are a proud member of the National Medical Device Industry Association and have been recognized as a National High-Tech Enterprise.

Location

Shenzhen Operation Center

Jiangxi Manufacturing Center

Looking ahead

FAQ

Q1: Can this 4.3-inch TFT LCD display module be customized?
A: Yes! We support OEM/ODM customization, including PCB layout, interface type (SPI, MIPI, RGB), touch panel bonding, and brightness adjustment.

Q2: Does the module include a touch screen?
A: This version does not include a touch panel by default, but resistive or capacitive touch can be added as per your requirements.

Q3: What kind of connector does it use?
A: It uses an FPC interface for reliable connection and easy integration into embedded systems.

Q4: What is the lead time for bulk orders?
A: Generally 2–3 weeks for standard modules; faster delivery is available for stocked models.

Q5: Is the display sunlight readable?
A: With 600cd/m² brightness, it's suitable for bright indoor and semi-outdoor environments, but not for direct sunlight exposure.
